REAR BRAKE
4-32
EAS22560
INTRODUCTION
WARNING
EWA14100
Disc brake components rarely require disas-
sembly. Therefore, always follow these pre-
ventive measures:
● Never disassemble brake components un-
less absolutely necessary.
● If any connection on the hydraulic brake
system is disconnected, the entire brake
system must be disassembled, drained,
cleaned, properly filled, and bled after reas-
sembly.
● Never use solvents on internal brake com-
ponents.
● Use only clean or new brake fluid for clean-
ing brake components.
● Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean
up any spilt brake fluid immediately.
● Avoid brake fluid coming into contact with
the eyes as it can cause serious injury.
● FIRST AID FOR BRAKE FLUID ENTERING
THE EYES:
● Flush with water for 15 minutes and get im-
mediate medical attention.
EAS22570
CHECKING THE REAR BRAKE DISC
1. Remove:
● Rear wheel
Refer to “REAR WHEEL” on page 4-8.
2. Check:
● Brake disc
Damage/galling → Replace.
3. Measure:
● Brake disc deflection
Out of specification → Correct the brake disc
deflection or replace the brake disc.
Refer to “CHECKING THE FRONT BRAKE
DISC” on page 4-19.
4. Measure:
● Brake disc thickness
Measure the brake disc thickness at a few dif-
ferent locations.
Out of specification → Replace.
Refer to “CHECKING THE FRONT BRAKE
DISC” on page 4-19.
5. Adjust:
● Brake disc deflection
Refer to “CHECKING THE FRONT BRAKE
DISC” on page 4-19.
6. Install:
● Rear wheel
Refer to “REAR WHEEL” on page 4-8.
EAS22580

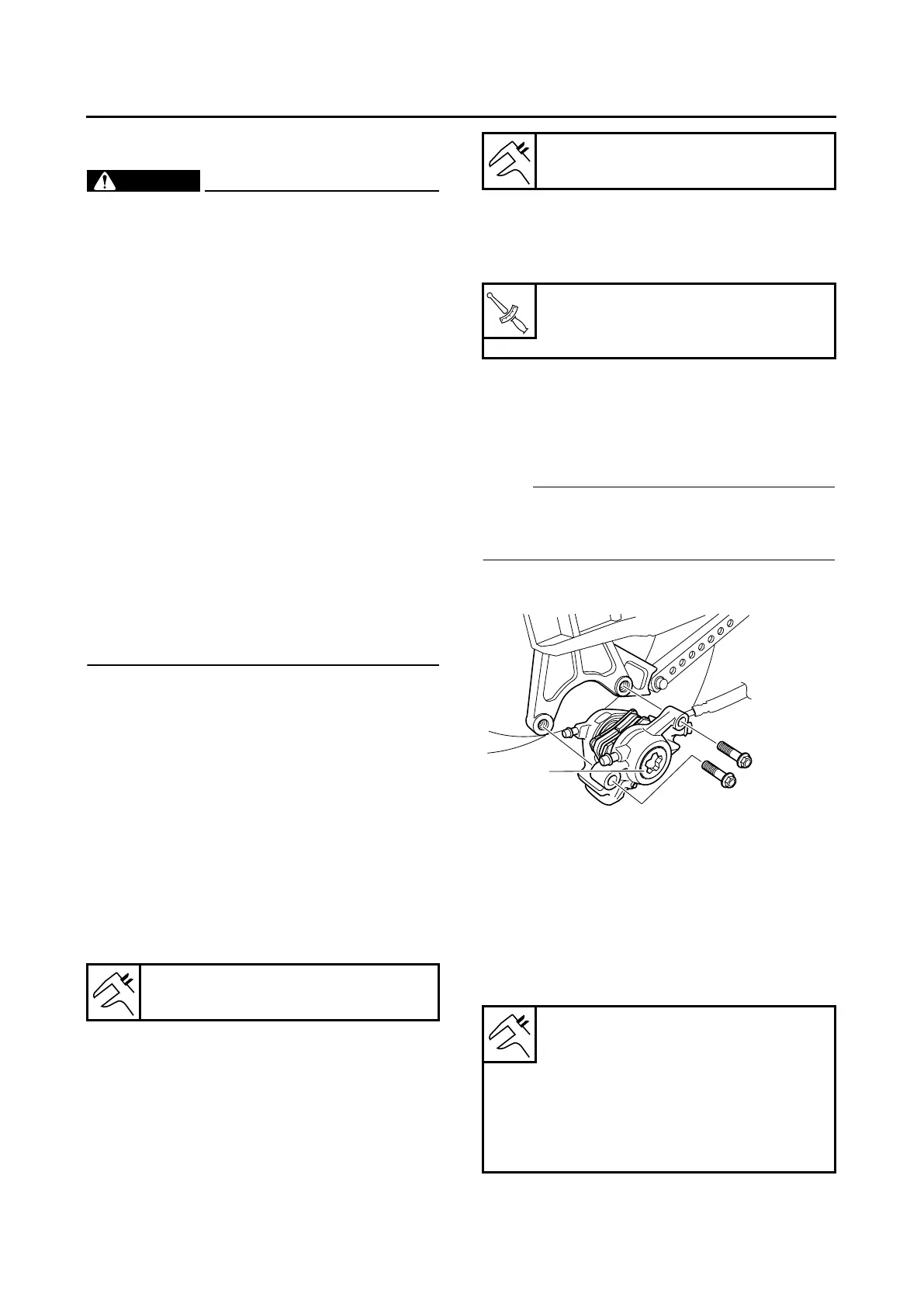

REPLACING THE REAR BRAKE PADS
NOTE:
When replacing the brake pads, it is not neces-
sary to disconnect the brake hose or disassem-
ble the brake caliper.
1. Remove:
● Brake caliper “1”
2. Remove:
● Pad pin
● Brake pads
● Brake pad shims
● Pad support
3. Measure:
● Brake pad wear limit “a”
Out of specification → Replace the brake
pads as a set.
Brake disc deflection limit
0.15 mm (0.0059 in)
Brake disc thickness limit
4.5 mm (0.18 in)
Brake disc bolt
23 Nm (2.3 m•kg, 17 ft•lb)
(Apply the LOCTITE®)
Brake pad lining thickness (inner)
5.5 mm (0.22 in)
Limit
0.5 mm (0.02 in)
Brake pad lining thickness (outer)
5.5 mm (0.22 in)
Limit
0.5 mm (0.02 in)
T
R
.
.
1

Yamaha XJR1300 2007 Specifications

General

Displacement	1251 cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Width	765 mm
Height	1, 115 mm
Seat Height	795 mm
Ground Clearance	135 mm
Fuel Capacity	21 liters
Engine Type	Air-cooled, 4-stroke, DOHC, 4-valve
Max Power	72 kW (98 PS) @ 8, 000 rpm
Max Torque	108.4 Nm @ 6, 000 rpm
Rear Suspension	Swingarm
