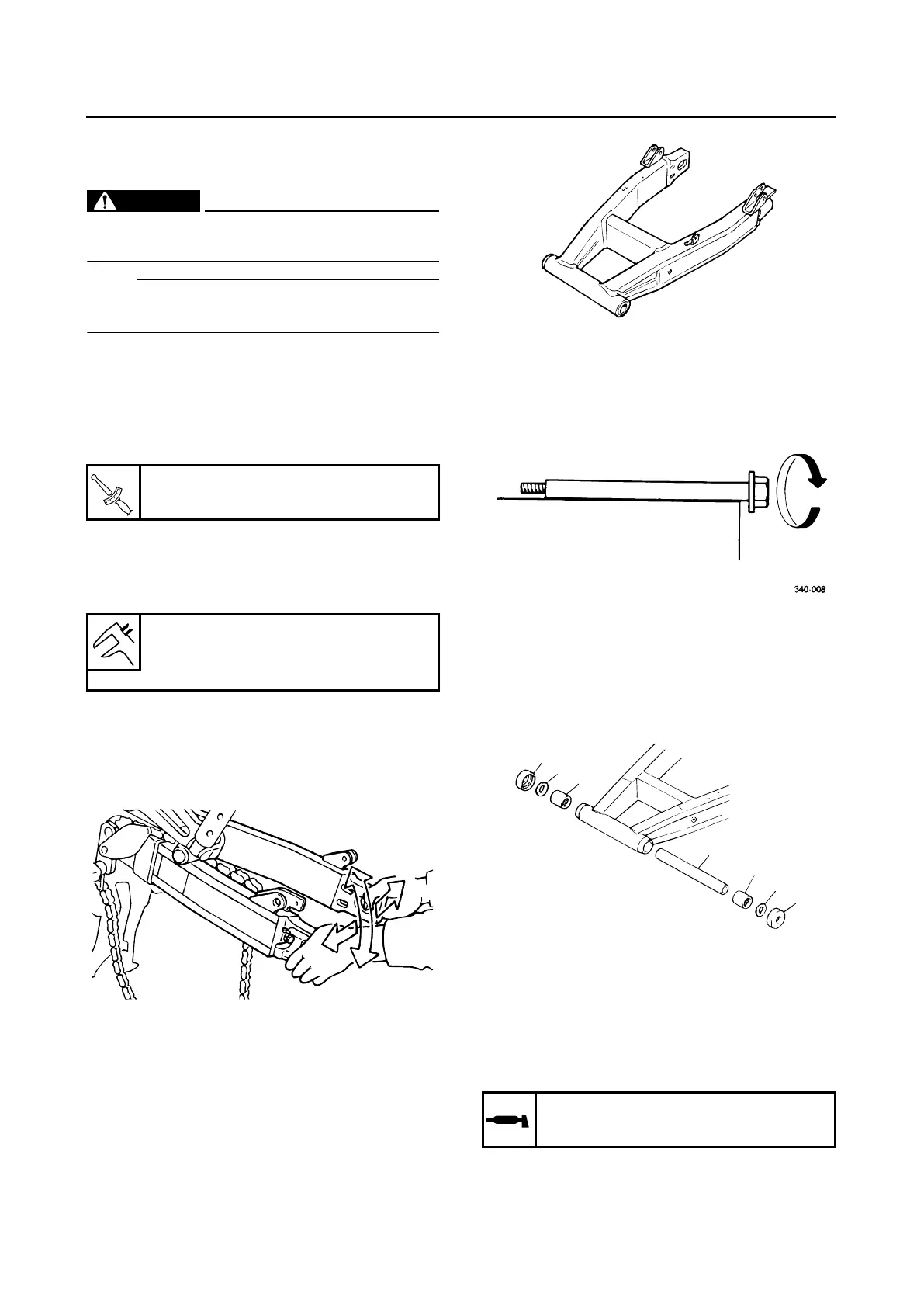

SWINGARM
4-58
EAS23340
REMOVING THE SWINGARM
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
NOTE:
Place the vehicle the suitable stand so that the
rear wheel is elevated.
2. Measure:
● Swingarm side play
● Swingarm up/down stroke
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Measure the tightening torque of the swing-
arm pivot shaft nut.
b. Measure the swingarm side play “A” by mov-
ing the swingarm from side to side.
c. If the swingarm side play is out of specifica-
tion, check the spacers and bearings.
d. Check the swingarm vertical movement “B”
by moving the swingarm up and down.
If swingarm vertical movement is not smooth
or if there is binding, check the spacers and
bearings.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS23370
CHECKING THE SWINGARM
1. Check:
● Swingarm
Bends/cracks/damage → Replace.
2. Check:
● Pivot shaft
Bends/damage → Replace.
3. Check:
● Thrust cover “1”
● Oil seals “2”
● Bearings “3”
● Spacer “4”
Damage/wear → Replace.
EAS23380
INSTALLING THE SWINGARM
1. Lubricate:
● Bearings
● Spacers
● Thrust cover
● Pivot shaft
2. Install:
● Bearings
Swingarm pivot shaft nut
125 Nm (12.5 m•kg, 90 ft•lb)
Swingarm side play (at the end of
the swingarm)
1 mm (0.04 in)
T
R
.
.
A
B
Recommended lubricant
Molybdenum disulfide grease
1
2
3
4
3
2
1

Yamaha XJR1300 2007 Specifications

General

Displacement	1251 cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Width	765 mm
Height	1, 115 mm
Seat Height	795 mm
Ground Clearance	135 mm
Fuel Capacity	21 liters
Engine Type	Air-cooled, 4-stroke, DOHC, 4-valve
Max Power	72 kW (98 PS) @ 8, 000 rpm
Max Torque	108.4 Nm @ 6, 000 rpm
Rear Suspension	Swingarm
