Yamaha XJR1300 2007 User Manual

CHASSIS
3-27
EAS21580

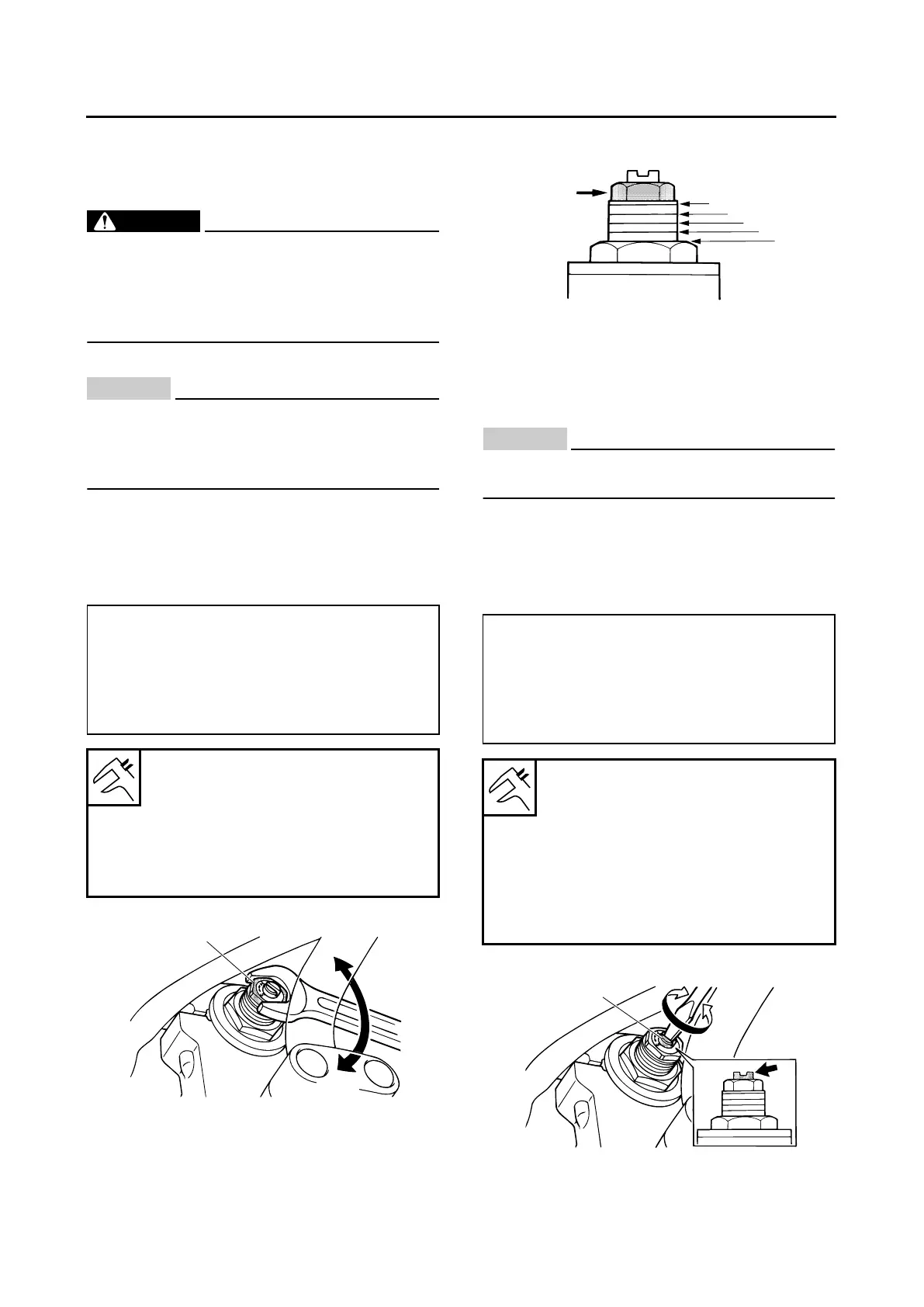

ADJUSTING THE FRONT FORKS
The following procedure applies to both of the
front fork legs.
WARNING
EWA13150
● Always adjust both front fork legs evenly.
Uneven adjustment can result in poor han-
dling and loss of stability.
● Securely support the motorcycle so that
there is no danger of it falling over.
Spring preload
CAUTION:
ECA13570
● Grooves are provided to indicate the ad-
justment position.
● Never go beyond the maximum or mini-
mum adjustment positions.
1. Adjust:
● Spring preload
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting bolt “1” in direction “a” or
“b”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Rebound damping
CAUTION:
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
● Rebound damping
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting screw “1” in direction “a” or
“b”.
Direction “a”
Spring preload is increased (suspension
is harder).
Direction “b”
Spring preload is decreased (suspension
is softer).
Spring preload
Minimum (soft)
8
Standard
5
Maximum (hard)
1
1
b
a
Direction “a”
Rebound damping is increased (suspen-
sion is harder).
Direction “b”
Rebound damping is decreased (suspen-
sion is softer).
Rebound damping
Maximum (hard)
1 click(s) out*
Standard
5 click(s) out*
Minimum (soft)
10 click(s) out*
*With the adjusting screw fully
turned in
1
2
3
4
5
1
a
b

Yamaha XJR1300 2007 Specifications

General

Displacement	1251 cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Width	765 mm
Height	1, 115 mm
Seat Height	795 mm
Ground Clearance	135 mm
Fuel Capacity	21 liters
Engine Type	Air-cooled, 4-stroke, DOHC, 4-valve
Max Power	72 kW (98 PS) @ 8, 000 rpm
Max Torque	108.4 Nm @ 6, 000 rpm
Rear Suspension	Swingarm
