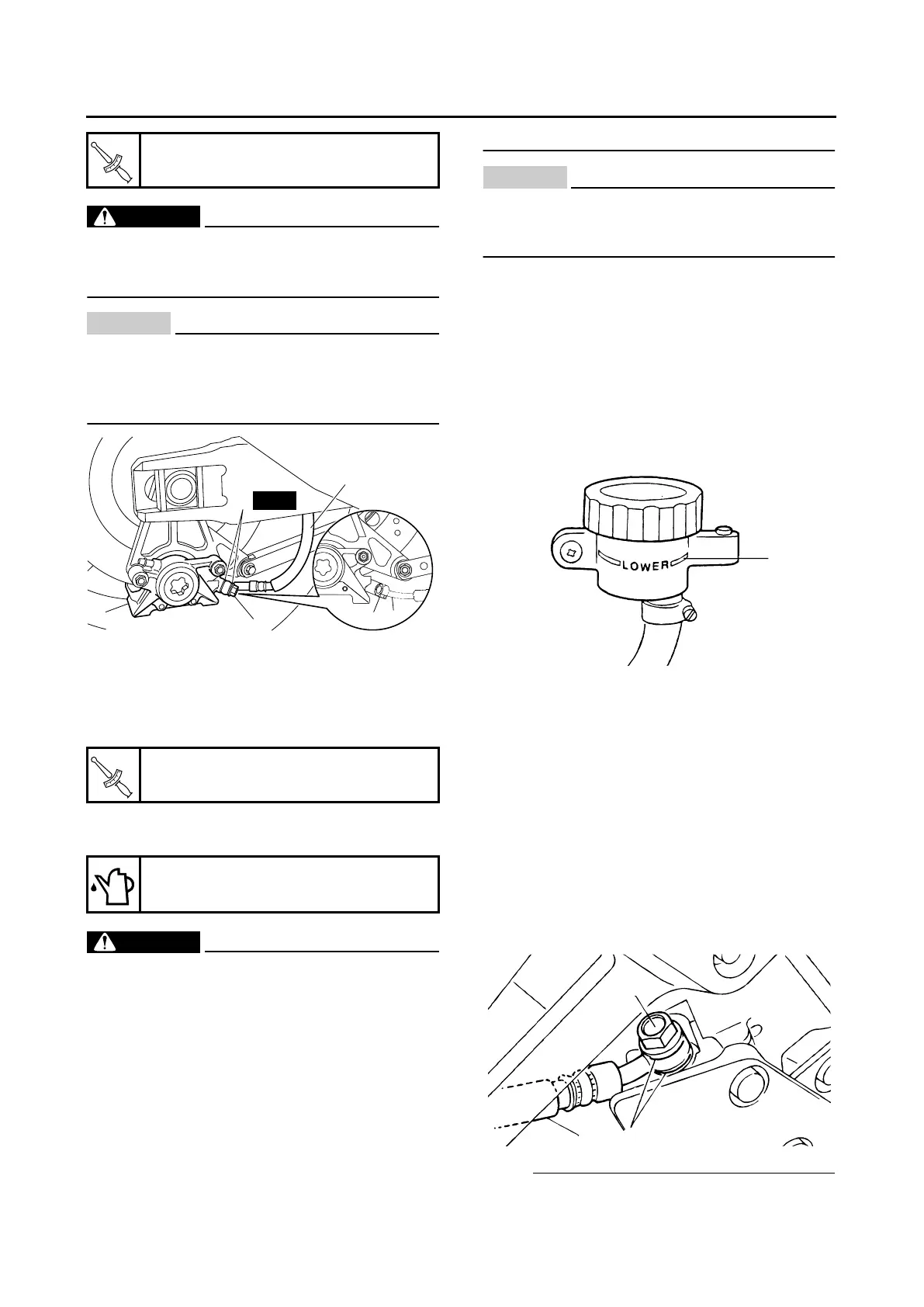

REAR BRAKE
4-35
WARNING
EWA13530
Proper brake hose routing is essential to in-
sure safe vehicle operation. Refer to “CA-
BLE ROUTING” on page 2-31.
CAUTION:
ECA5UXB013
When installing the brake hose onto the
brake master cylinder, make sure the brake
pipe“a” touches the projection “b” as
shown.
2. Install:
● Brake caliper
● Brake hose holder
Refer to “REPLACING THE REAR BRAKE
PADS” on page 4-32.
3. Fill the brake fluid with the specified amount.
● Brake fluid reservoir
WARNING
EWA13090
● Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
● Refill with the same type of brake fluid that
is already in the system. Mixing brake flu-
ids may result in a harmful chemical reac-
tion, leading to poor brake performance.
● When refilling, be careful that water does
not enter the brake fluid reservoir. Water
will significantly lower the boiling point of
the brake fluid and could cause vapor lock.
CAUTION:
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
4. Bleed:
● Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-23.
5. Check:
● Brake fluid level
Below the minimum level mark “a” → Add the
recommended brake fluid to the proper level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” on page 3-21.
6. Check:
● Brake pedal operation
Soft or spongy feeling → Bleed the brake
system.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-23.
EAS22700
REMOVING THE REAR BRAKE MASTER
CYLINDER
1. Remove:
● Union bolt “1”
● Copper washers “2”
● Brake hose “3”
NOTE:
To collect any remaining brake fluid, place a
Brake hose union bolt
30 Nm (3.0 m•kg, 22 ft•lb)
Brake caliper bolt
40 Nm (4.0 m•kg, 29 ft•lb)
Recommended fluid
DOT 4
T
R
.
.
1
2
3
4
New
a
b
T
R
.
.
a
1
2
3
