AIR INDUCTION SYSTEM
6-16
EAS27060
CHECKING THE AIR INDUCTION SYSTEM
Air induction system
The air induction system burns unburned ex-
haust gases by injecting fresh air (secondary air)
into the exhaust port, reducing the emission of
hydrocarbons. When there is negative pressure
at the exhaust port, the reed valve opens, allow-
ing secondary air to flow into the exhaust port.
The required temperature for burning the un-
burned exhaust gases is approximately 600 to
700°C.

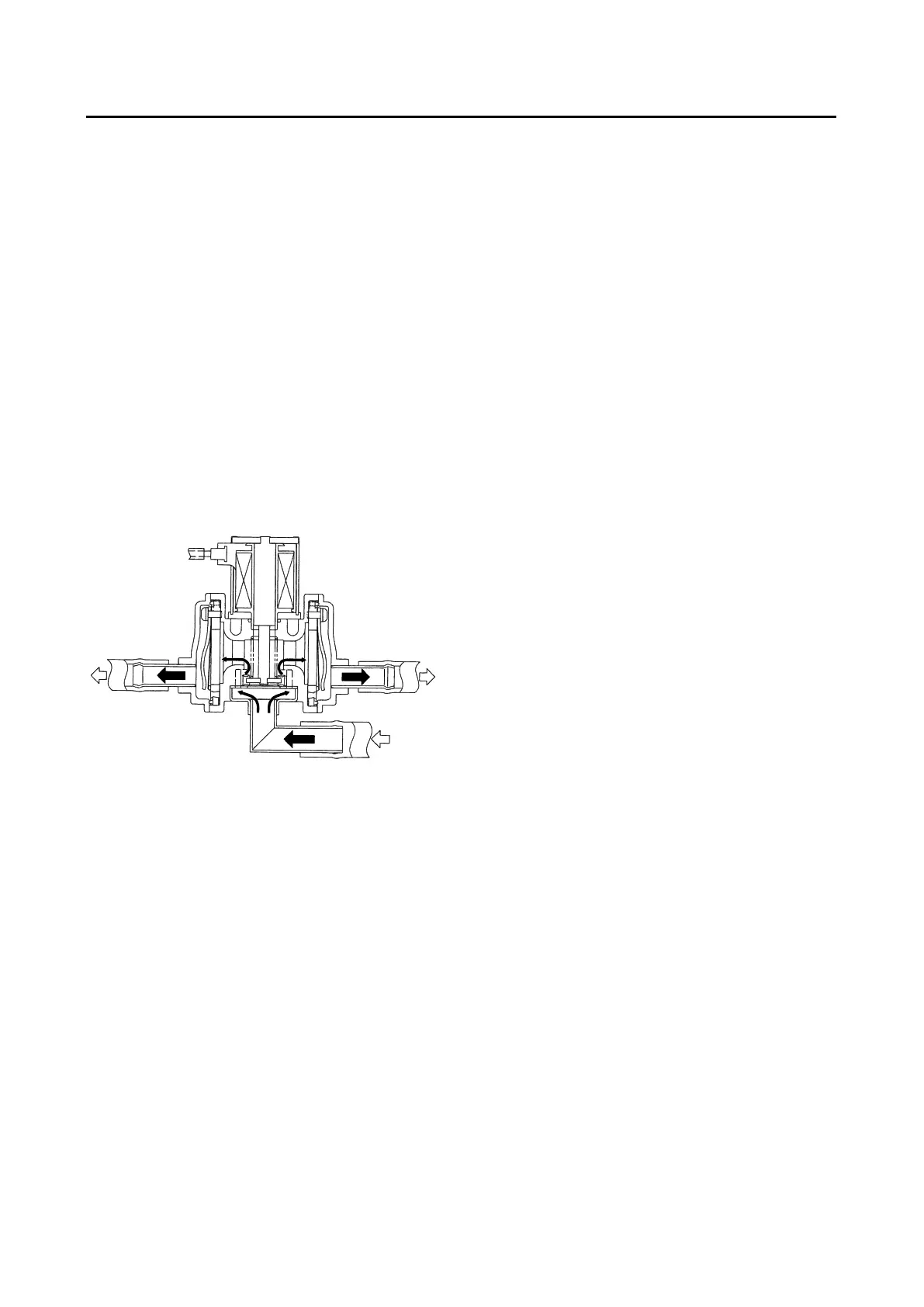

Air cut-off valve
The air cut-off valve is controlled by the signals
from the ECU. The air cut-off valve is normally
open during idling, but shuts off when the vehicle
starts to move, to prevent reverse flow.
1. Check:
● Hoses
Loose connection → Connect properly.
Cracks/damage → Replace.
● Pipes
Cracks/damage → Replace.
2. Check:
● Reed valve
● Reed valve stopper
● Reed valve seat
Cracks/scratches→Replace the air cut-off
valve assembly.
3. Check:
● Air cut-off valve
Cracks/damage → Replace.
EAS27070
INSTALLING THE AIR INDUCTION SYSTEM
1. Install:
● Reed valves
● Reed valve stoppers
2. Install:
● Reed valve cover
A. From the air filter
B. To the cylinder head
A
B
B

Yamaha XJR1300 2007 Specifications

General

Displacement	1251 cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Width	765 mm
Height	1, 115 mm
Seat Height	795 mm
Ground Clearance	135 mm
Fuel Capacity	21 liters
Engine Type	Air-cooled, 4-stroke, DOHC, 4-valve
Max Power	72 kW (98 PS) @ 8, 000 rpm
Max Torque	108.4 Nm @ 6, 000 rpm
Rear Suspension	Swingarm
