ELECTRIC STARTER

5-36

7. Check:

● Gear teeth

Damage/wear → Replace the gear.

EAS24800

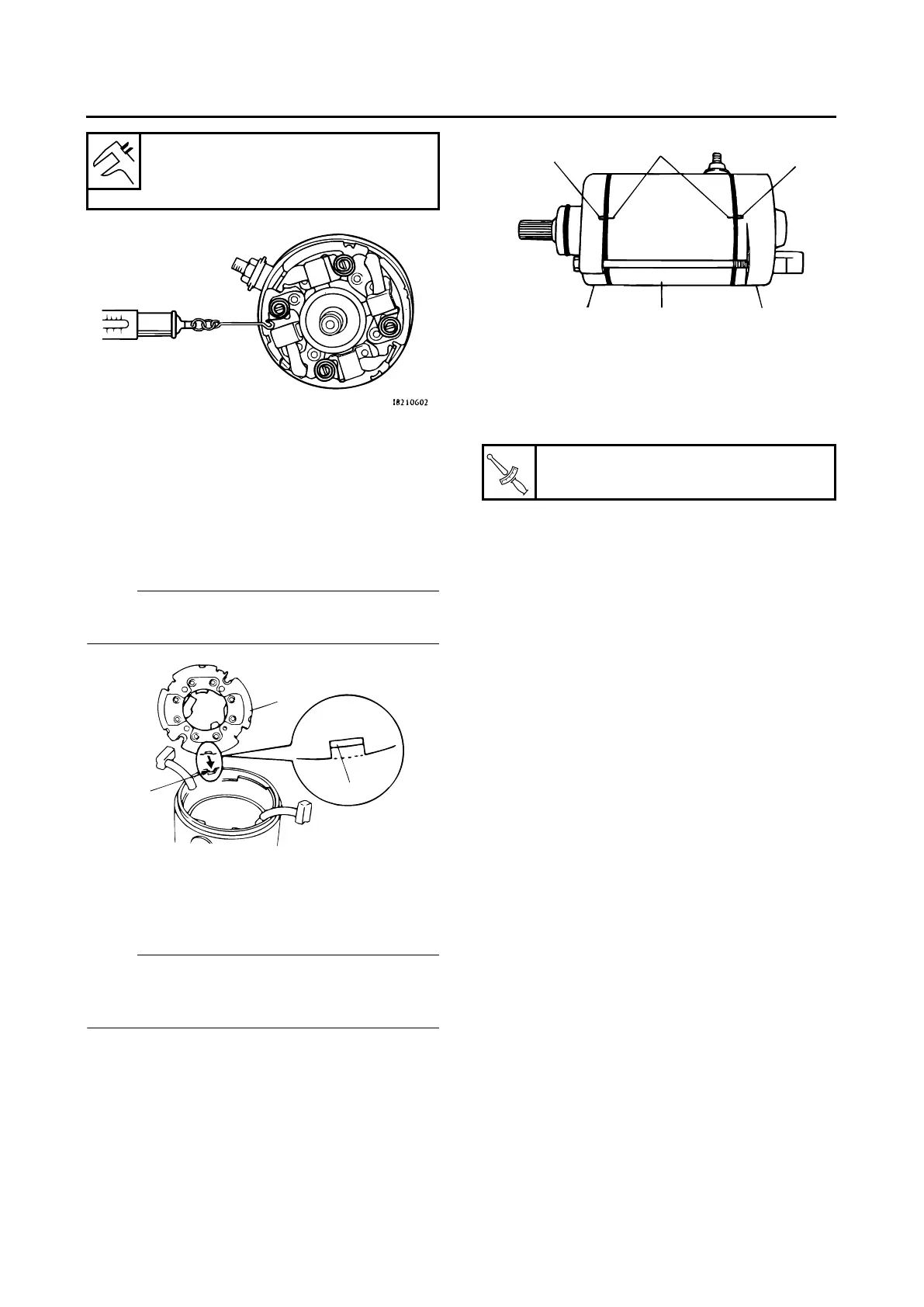

ASSEMBLING THE STARTER MOTOR

1. Install:

● Brush seat “1”

NOTE:

Align the tab “a” on the brush seat with the slot

“b” in the starter motor rear cover.

2. Install:

● Starter motor yoke “1”

● Front bracket “2”

● Rear bracket “3”

NOTE:

Align the match marks “a” on the starter motor

yoke with the match marks “b” on the front and

rear brackets.

EAS24810

INSTALLING THE STARTER MOTOR

1. Install:

● Starter motor

● Starter motor bolts

2. Connect:

● Starter motor lead

Brush spring force

7.65–10.01 N (27.54–36.03 oz)

(780–1021 gf)

Starter motor

10 Nm (1.0 m•kg, 7.2 ft•lb)

21 3
