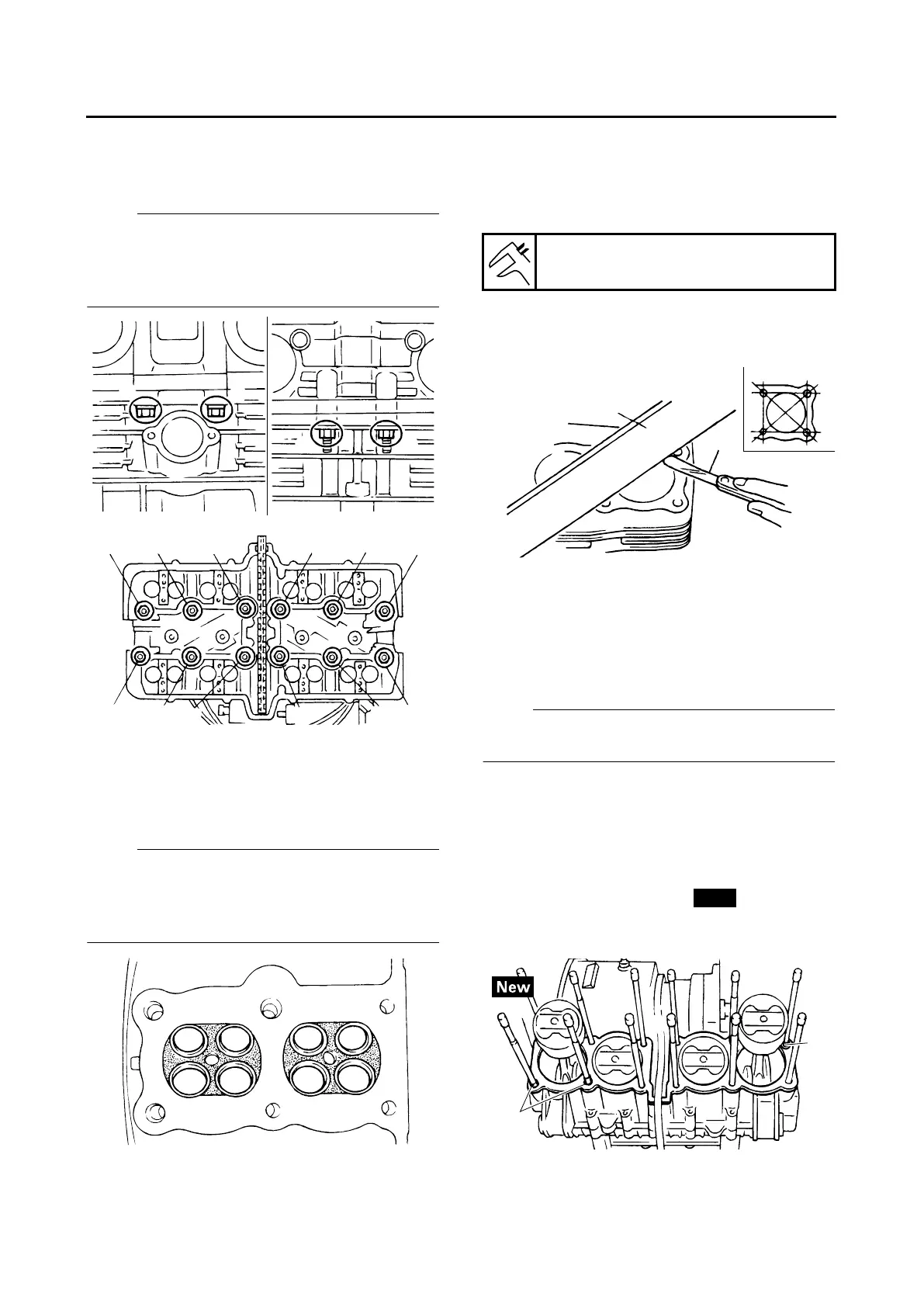

CYLINDER HEAD
5-14
EAS24120
REMOVING THE CYLINDER HEAD
1. Remove:
● Cylinder head nuts
NOTE:
● Loosen the nuts in the proper sequence as
shown.
● Loosen each nut 1/2 of a turn at a time. After
all of the nuts are fully loosened, remove them.
EAS24160
CHECKING THE CYLINDER HEAD
1. Eliminate:
● Combustion chamber carbon deposits
(with a rounded scraper)
NOTE:
Do not use a sharp instrument to avoid damag-
ing or scratching:
● Spark plug bore threads
● Valve seats
2. Check:
● Cylinder head
Damage/scratches → Replace.
3. Measure:
● Cylinder head warpage
Out of specification → Resurface the cylinder
head
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Place a straightedge “1” and a thickness
gauge “2” across the cylinder head.
b. Measure the warpage.
c. If the limit is exceeded, resurface the cylinder
head as follows.
d. 400 Place a 400–600 grit wet sandpaper on
the surface plate and resurface the cylinder
head using a figure-eight sanding pattern.
NOTE:
To ensure an even surface, rotate the cylinder
head several times.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS24240
INSTALLING THE CYLINDER HEAD
1. Install:
● Cylinder head gasket “1”
● Gasket
● Dowel pins “2”
1
2
34
5 9 13 15 11 7
61014
8
12
16
Warpage limit
0.20 mm (0.0079 in)
1
2
New
1
2
2

Yamaha XJR1300 2007 Specifications

General

Displacement	1251 cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Width	765 mm
Height	1, 115 mm
Seat Height	795 mm
Ground Clearance	135 mm
Fuel Capacity	21 liters
Engine Type	Air-cooled, 4-stroke, DOHC, 4-valve
Max Power	72 kW (98 PS) @ 8, 000 rpm
Max Torque	108.4 Nm @ 6, 000 rpm
Rear Suspension	Swingarm
