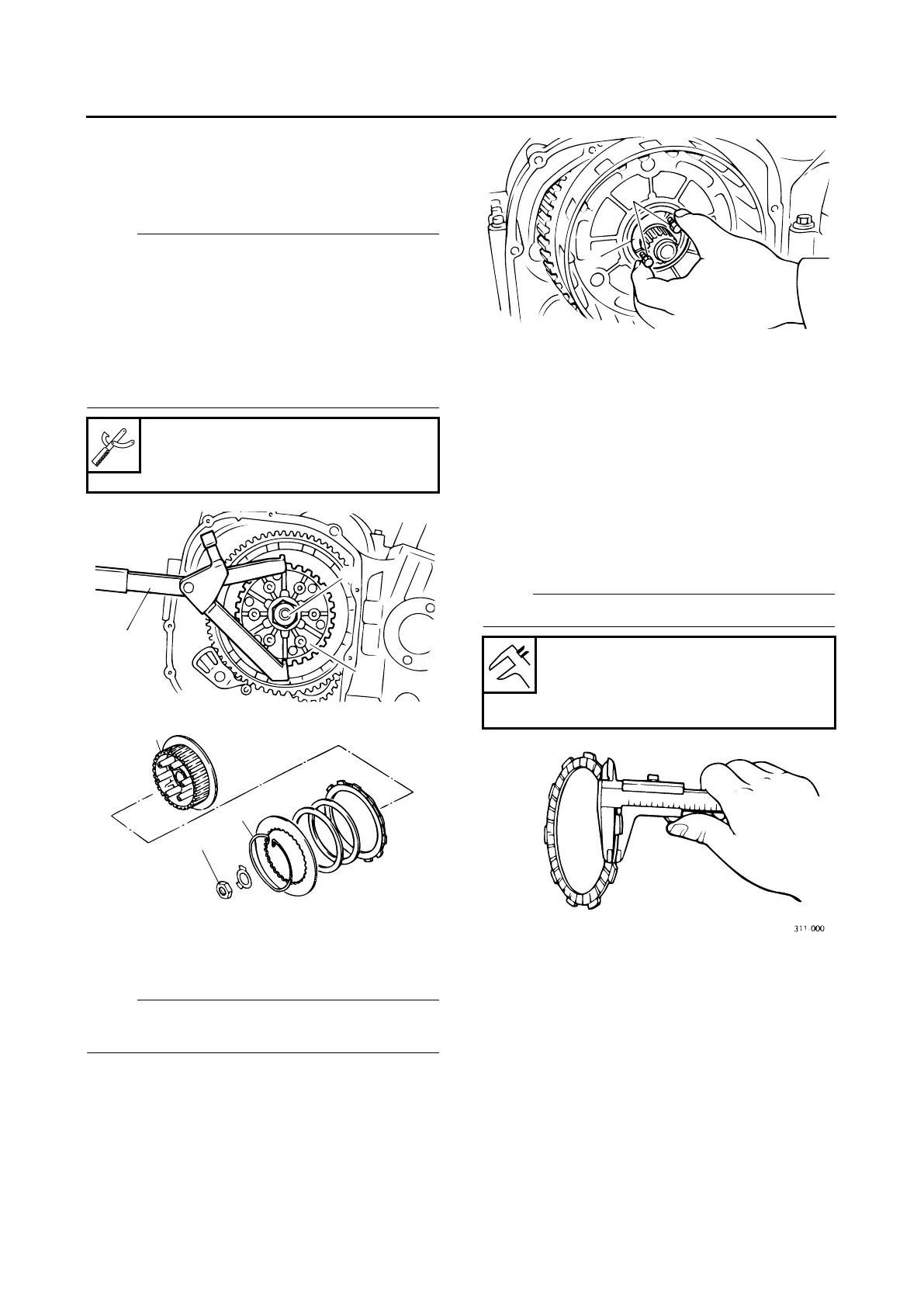

CLUTCH
5-44
EAS25070
REMOVING THE CLUTCH
1. Straighten the lock washer tab.
2. Loosen:
● Clutch boss nut “1”
NOTE:
● While holding the clutch boss “3” with the uni-
versal clutch holder “2”, loosen the clutch boss
nut.
● There is a built-in damper between the clutch
boss “3” and the clutch plate. It is not neces-
sary to remove the wire circlip “4” and disas-
semble the built-in damper unless there is
serious clutch chattering.
3. Remove:
● Spacer “1”
● Bearing
NOTE:
Insert M6 bolts “2” into the spacer and then re-
move the spacer by pulling on the bolts.
EAS25100
CHECKING THE FRICTION PLATES
The following procedure applies to inspection of
all friction plates.
1. Check:
● Friction plate
Damage/wear → Replace the friction plate as
a set.
2. Measure:
● Friction plate thickness
Out of specification → Replace the friction
plate as a set.
NOTE:
Measure the friction plate at four places.
Universal clutch holder
90890-04086
YM-91042
2
3
1
1
3
4
Friction plate thickness
2.90–3.10 mm (0.114–0.122 in)
Wear limit
2.80 mm (0.1102 in)
1
2

Yamaha XJR1300 2007 Specifications

General

Displacement	1251 cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Width	765 mm
Height	1, 115 mm
Seat Height	795 mm
Ground Clearance	135 mm
Fuel Capacity	21 liters
Engine Type	Air-cooled, 4-stroke, DOHC, 4-valve
Max Power	72 kW (98 PS) @ 8, 000 rpm
Max Torque	108.4 Nm @ 6, 000 rpm
Rear Suspension	Swingarm
