CHECKING THE CONNECTIONS
1-10
EAS20250

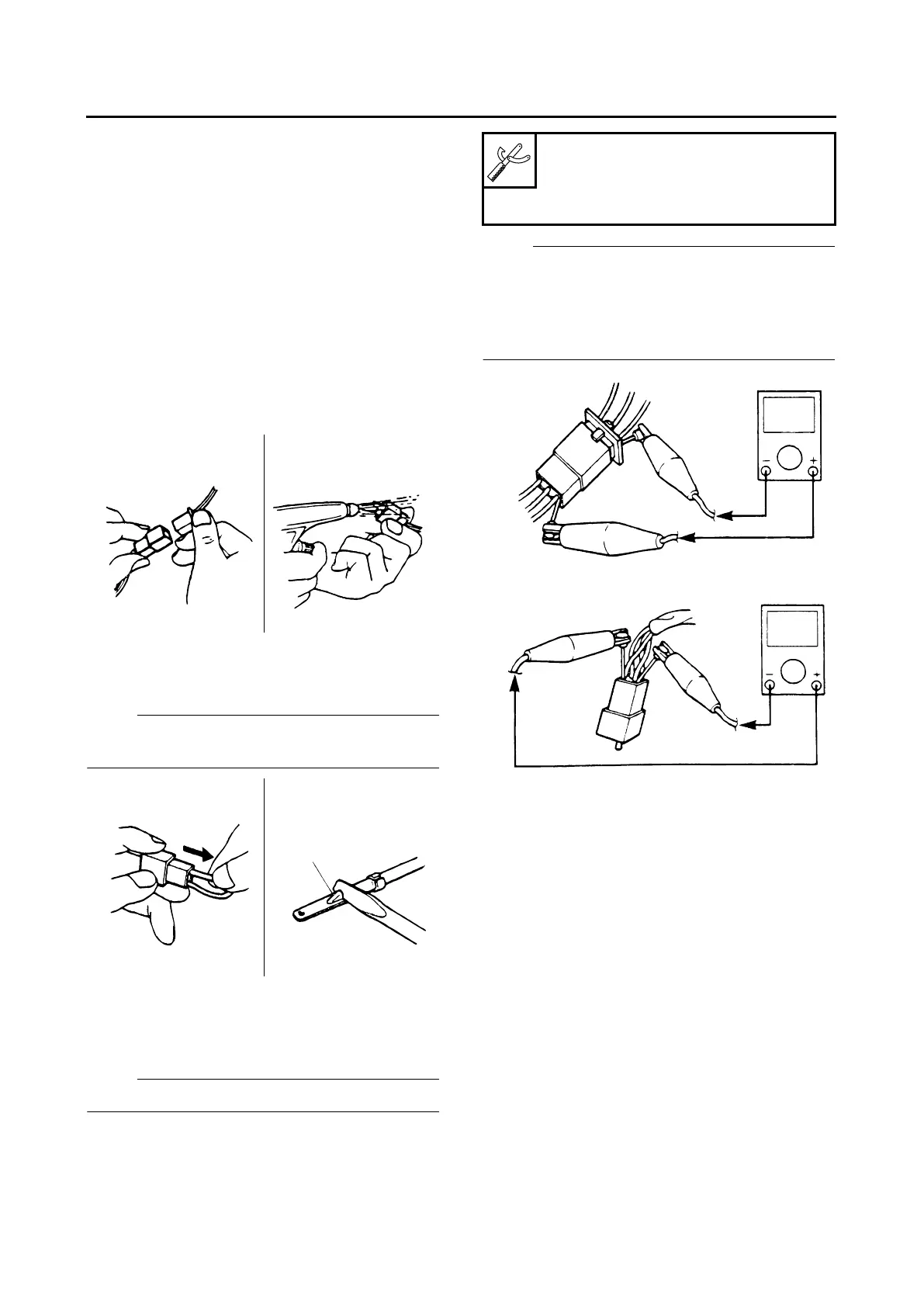

CHECKING THE CONNECTIONS
Check the leads, couplers, and connectors for
stains, rust, moisture, etc.
1. Disconnect:
● Lead
● Coupler
● Connector
2. Check:
● Lead
● Coupler
● Connector
Moisture → Dry with an air blower.
Rust/stains → Connect and disconnect sev-
eral times.
3. Check:
● All connections
Loose connection → Connect properly.
NOTE:
If the pin “1” on the terminal is flattened, bend it
up.
4. Connect:
● Lead
● Coupler
● Connector
NOTE:
Make sure all connections are tight.
5. Check:
● Continuity
(with the pocket tester)
NOTE:
● If there is no continuity, clean the terminals.
● When checking the wire harness, perform
steps (1) to (3).
● As a quick remedy, use a contact revitalizer
available at most part stores.
1
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C

Yamaha XJR1300 2007 Specifications

General

Displacement	1251 cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Width	765 mm
Height	1, 115 mm
Seat Height	795 mm
Ground Clearance	135 mm
Fuel Capacity	21 liters
Engine Type	Air-cooled, 4-stroke, DOHC, 4-valve
Max Power	72 kW (98 PS) @ 8, 000 rpm
Max Torque	108.4 Nm @ 6, 000 rpm
Rear Suspension	Swingarm
