VALVES AND VALVE SPRINGS
5-16
EAS24270

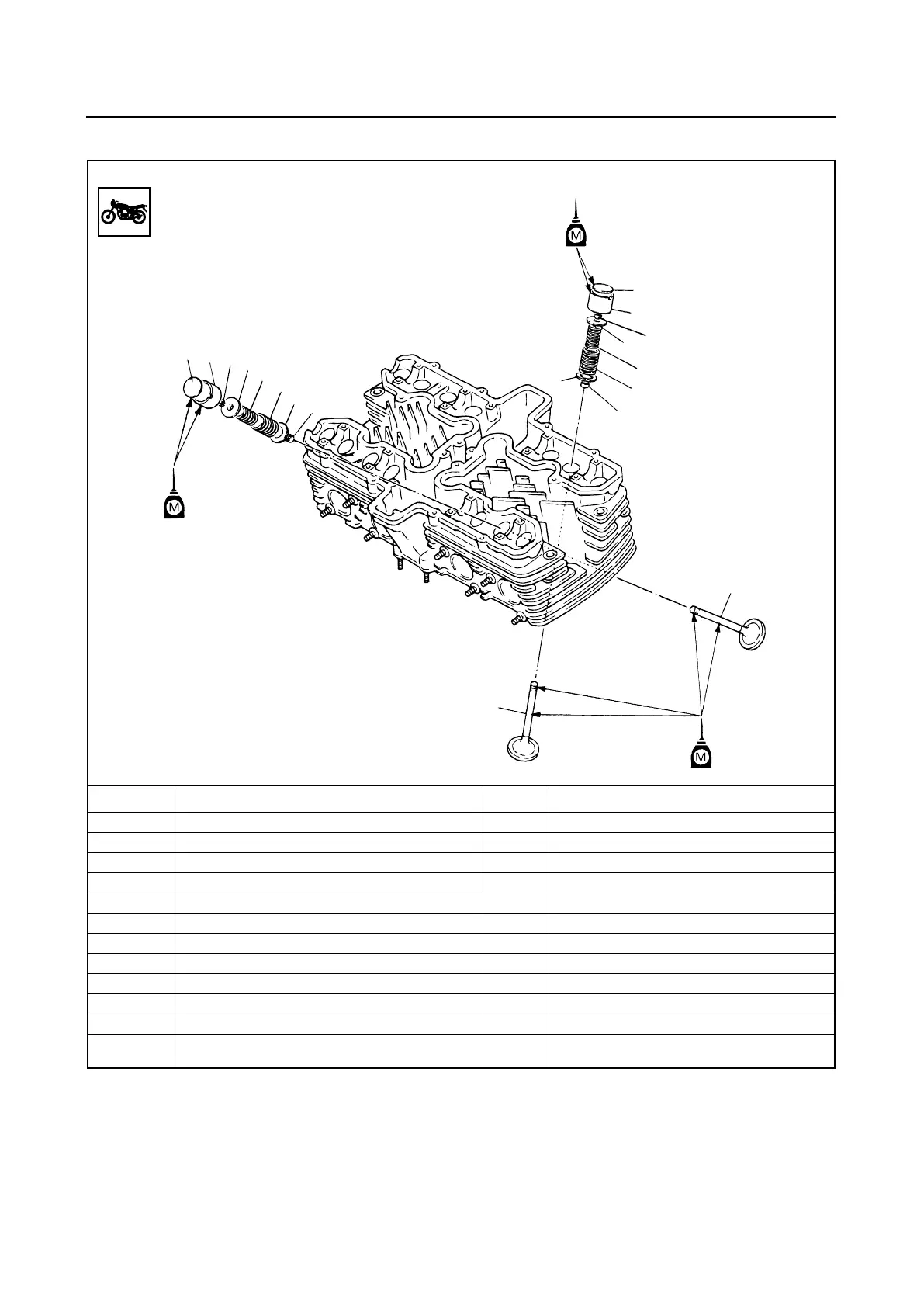

VALVES AND VALVE SPRINGS
Removing the valves and valve springs
Order Job/Parts to remove Q’ty Remarks
Cylinder head Refer to “CYLINDER HEAD” on page 5-13.
1 Valve pad 16
2 Valve lifter 16
3 Valve cotter 32
4 Valve spring retainer 16
5 Valve spring (inner) 16
6 Valve spring (outer) 16
7 Intake valve 8
8 Exhaust valve 8
9 Valve stem seal 16
10 Valve spring seat 16
For installation, reverse the removal proce-
dure.
1
2
3
4
5
6
9
10
1
2
3
4
6
5
10
9
7
8

Yamaha XJR1300 2007 Specifications

General

Displacement	1251 cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Width	765 mm
Height	1, 115 mm
Seat Height	795 mm
Ground Clearance	135 mm
Fuel Capacity	21 liters
Engine Type	Air-cooled, 4-stroke, DOHC, 4-valve
Max Power	72 kW (98 PS) @ 8, 000 rpm
Max Torque	108.4 Nm @ 6, 000 rpm
Rear Suspension	Swingarm
