4 - 60
CHAS
FRONT AND REAR BRAKES
EAS00888

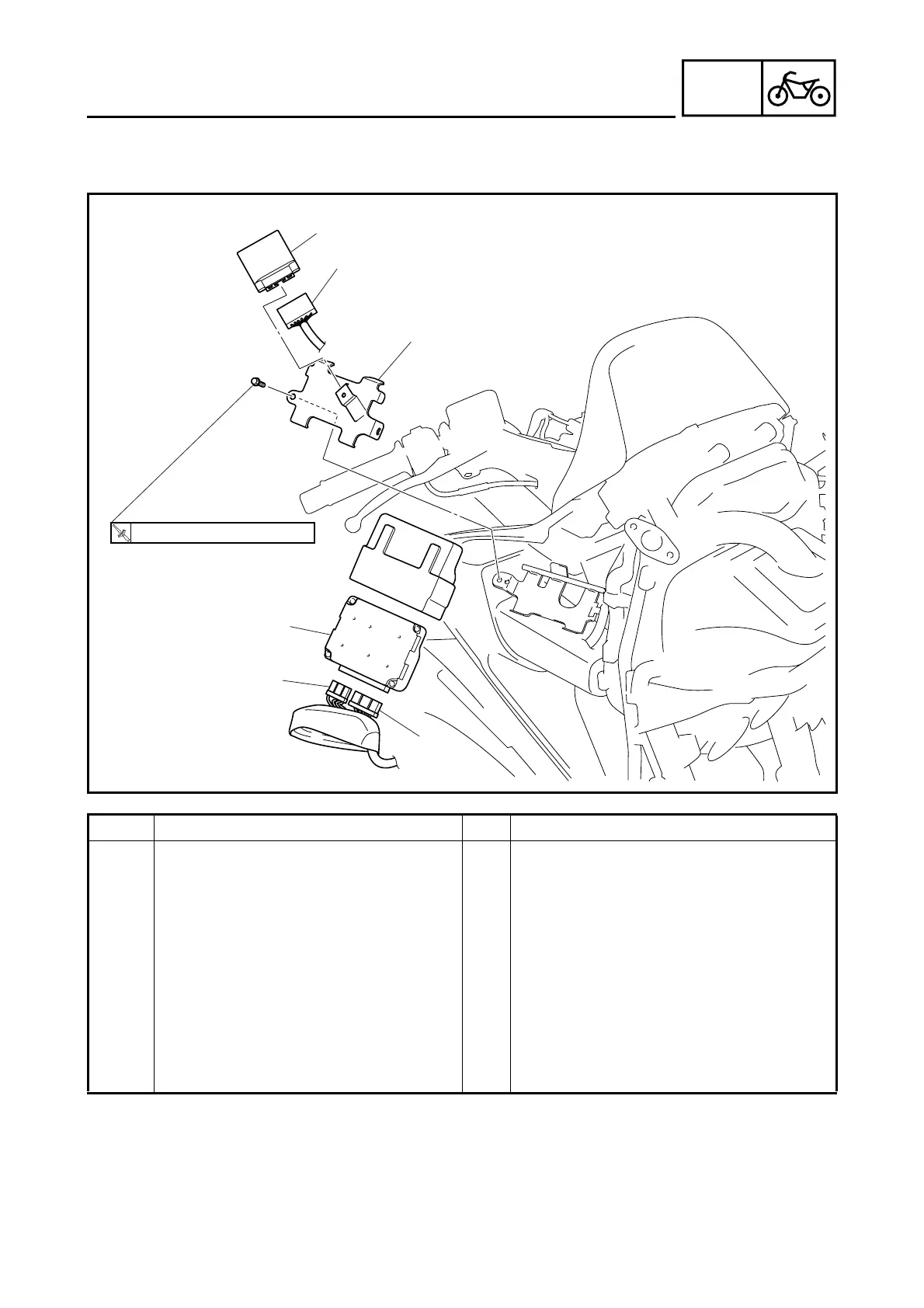

ECU (ABS) AND FAIL-SAFE RELAY (XP500A)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
5
4
4
3
1
2
Order Job/Part Q’ty Remarks
Removing the ECU (ABS) and fail-
safe relay (XP500A)
Remove the parts in the order listed.
Front cowling Refer to “COVER AND PANEL” in chap-
ter 3.
1 Fail-safe relay coupler 1 Disconnect.
2 Fail-safe relay 1
3 Upper ECU (ABS) bracket 1
4 ECU (ABS) coupler 2 Disconnect.
5 ECU (ABS) 1
For installation, reverse the removal pro-
cedure.
