4 - 73
CHAS

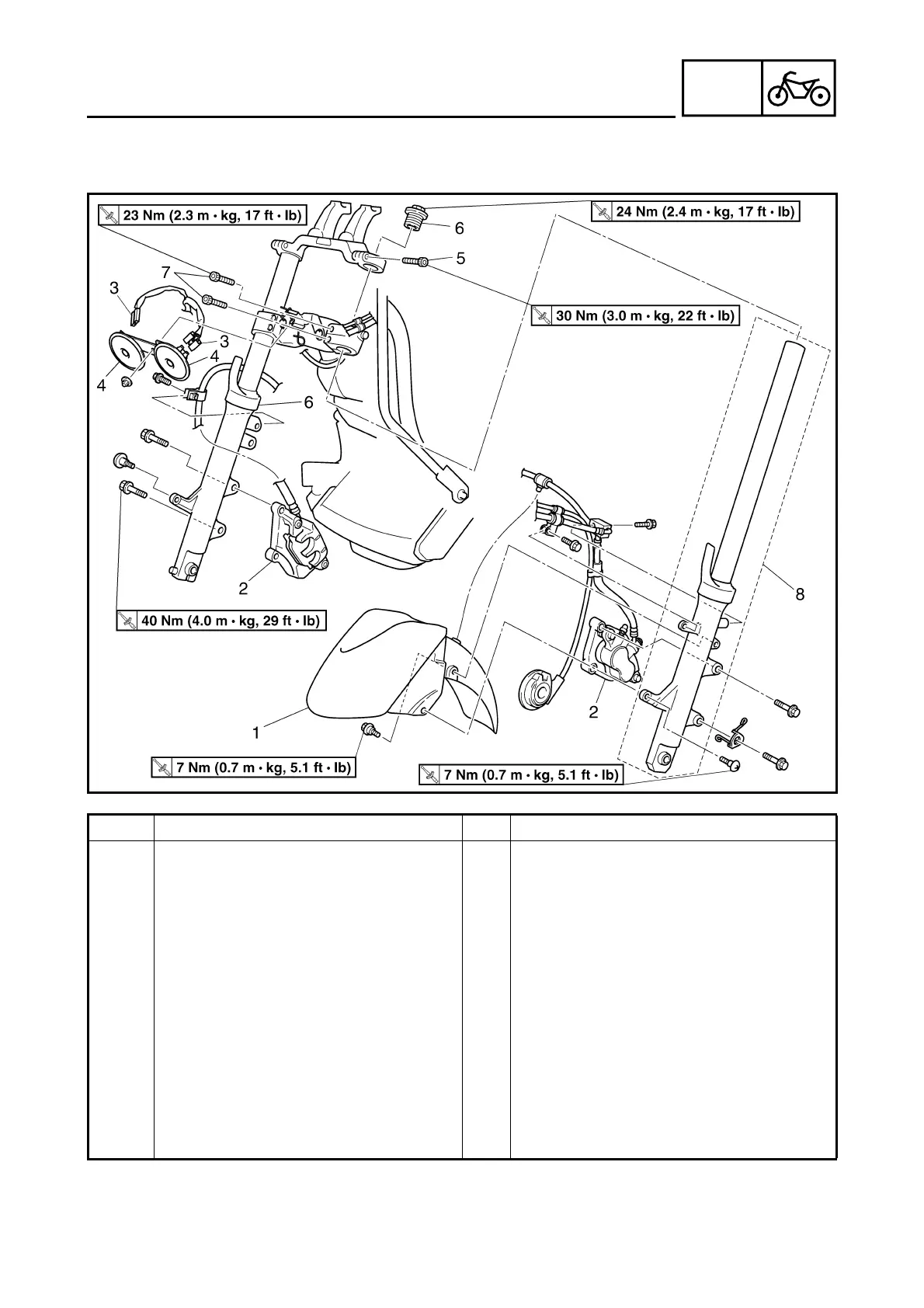

FRONT FORK
FRONT FORK
Order Job/Part Q’ty Remarks
Removing the front fork
Remove the parts in the order listed.
The following procedure applies to both
of the front fork legs.
Front cowling/leg shield Refer to “COVER AND PANEL” in chap-
ter 3.
Handlebar cover (upper and lower) Refer to “HANDLEBAR”.
Front wheel Refer to “FRONT WHEEL AND BRAKE
DISC”.
ECU (ABS) For XP500A
Refer to “FRONT AND REAR BRAKES”.
1 Front fender 1
2 Front brake caliper 2
3 Horn coupler 2 Disconnect.
4Horn 2
To Next Page
