Yamaha XP500 - Cylinder Head

5 - 17
ENG
CYLINDER HEAD
CYLINDER HEAD

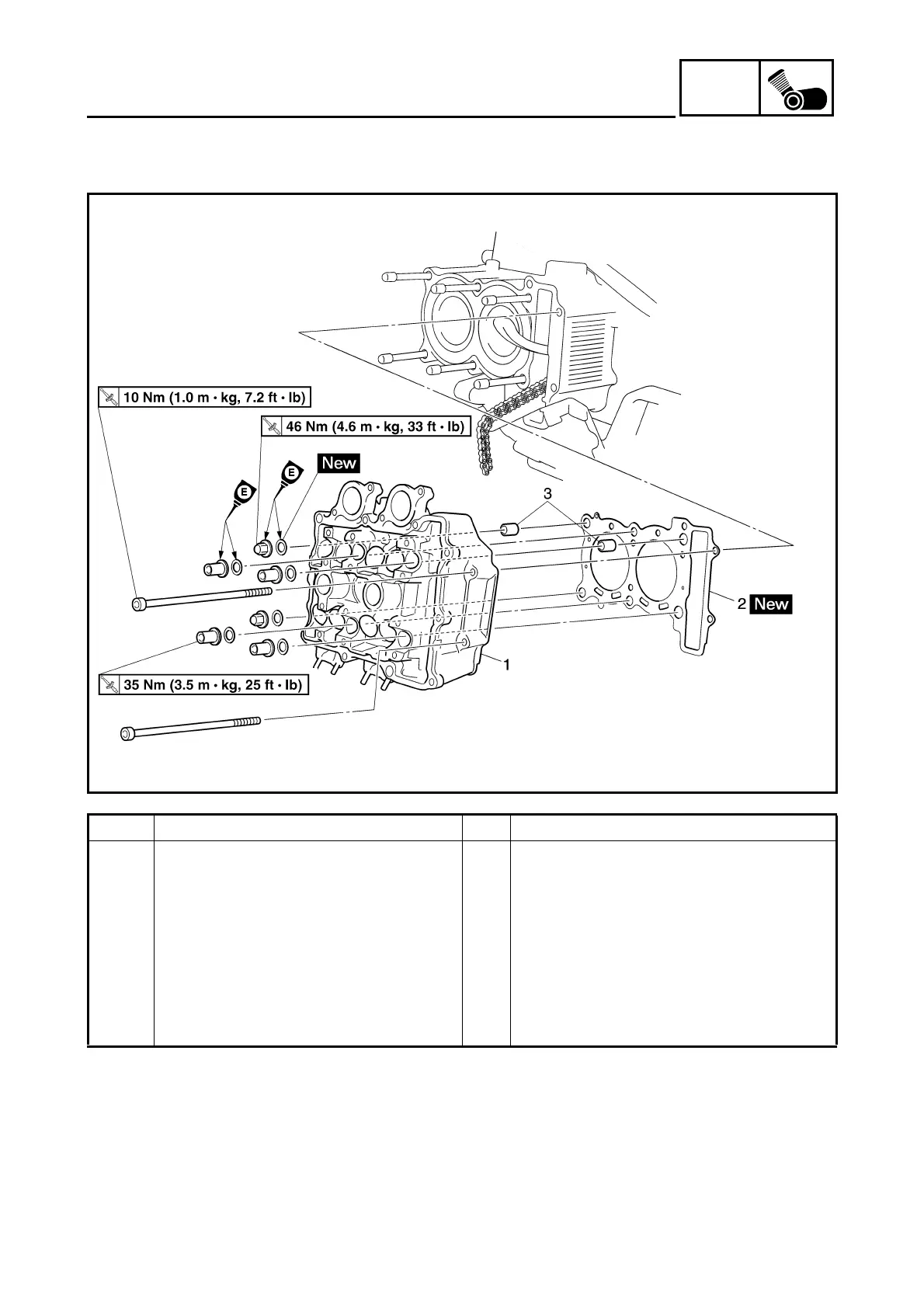

Order Job/Part Q’ty Remarks
Removing the cylinder head
Remove the parts in the order listed.
Intake and exhaust camshafts Refer to “CAMSHAFTS”.
1 Cylinder head 1 Refer to “REMOVING THE CYLINDER
HEAD” and “INSTALLING THE CYLIN-
DER HEAD”.
2 Cylinder head gasket 1
3 Dowel pin 2
For installation, reverse the removal pro-
cedure.
