5 - 72
ENG
CRANKCASE AND CRANKSHAFT

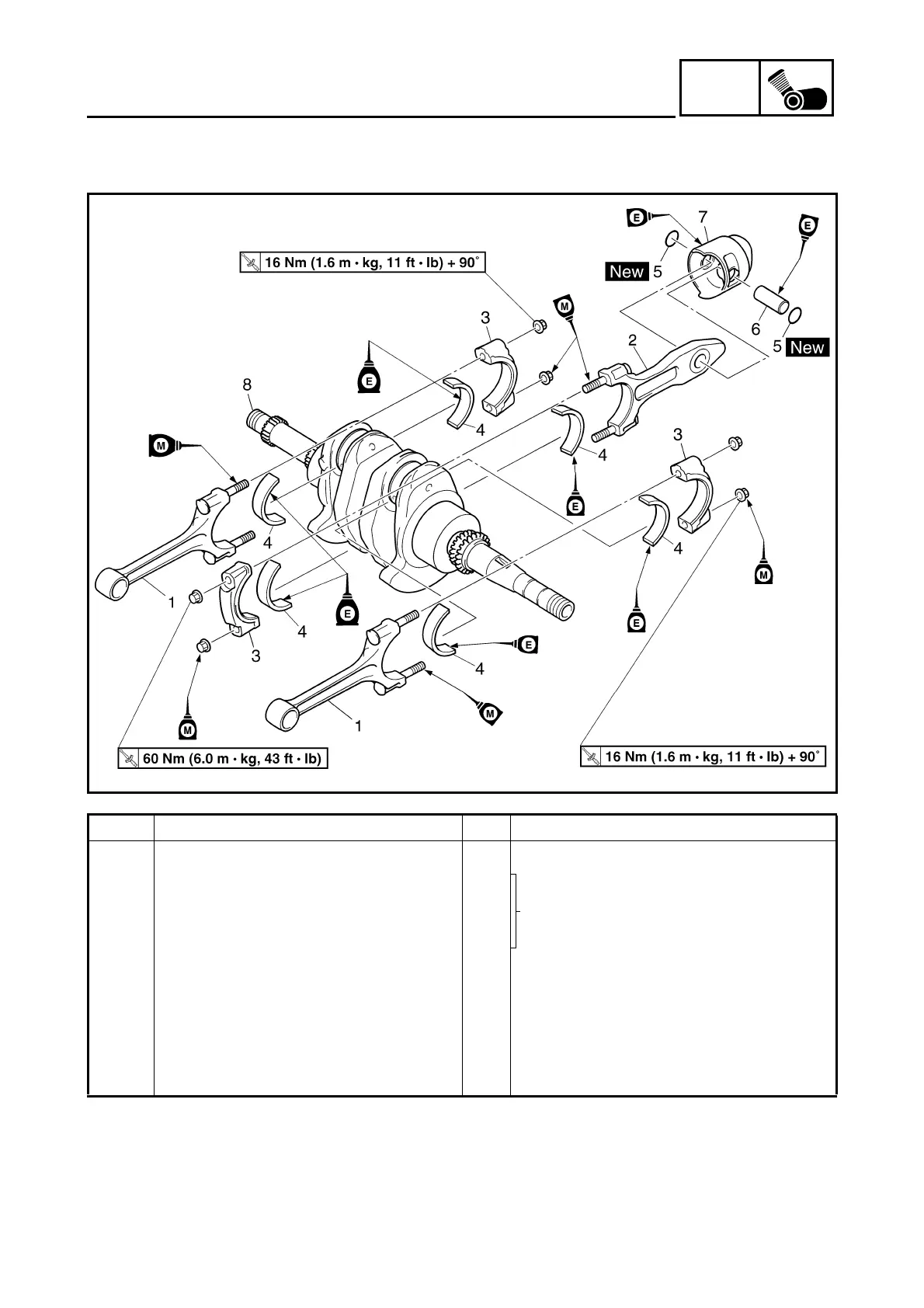

CONNECTING ROD
Order Job/Part Q’ty Remarks
Removing the connecting rod
Remove the parts in the order listed.
1 Connecting rod 2
Refer to “REMOVING THE CONNECT-
ING RODS” and “INSTALLING THE
CONNECTING RODS”.
2 Connecting rod (balancer) 1
3 Connecting rod cap 3
4 Big end bearing 6
5 Circlip 2
6 Piston pin 1
7 Balancer piston 1
8 Crankshaft 1
For installation, reverse the removal pro-
cedure.
To Next Page
