Yamaha XP500 - Assembling the Secondary Sheave

5 - 66
ENG
V-BELT AUTOMATIC TRANSMISSION
EAS00324

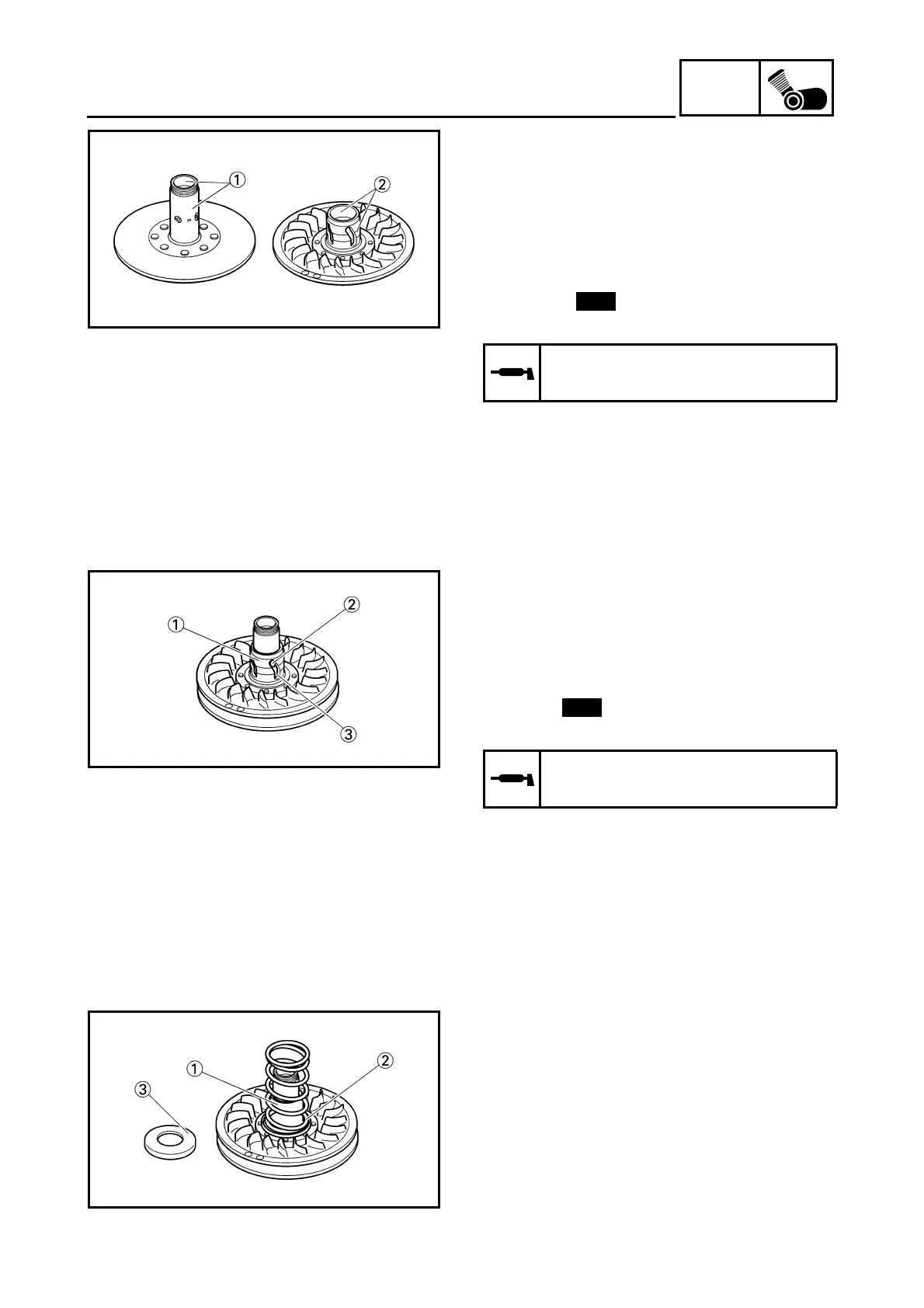

ASSEMBLING THE SECONDARY SHEAVE
1. Lubricate:
• secondary fixed sheave shaft’s outer and
inner surfaces
1
• secondary sliding sheave’s outer and inner
surfaces
2
• grease nipple groove
• oil seals
(with the recommended lubricant)
Recommended lubricant
BEL-RAY assembly lube
®
New
2. Install:
• secondary sliding sheave
1
3. Install:
• guide pin
2
4. Lubricate:
• guide pin groove
3
• O-ring
(with the recommended lubricant)
Recommended lubricant
BEL-RAY assembly lube
®
New
5. Install:
• spring seat
1
• compression spring
2
• upper spring seat
3
