Yamaha XP500 - Front Brake Caliper

4 - 45
CHAS
FRONT AND REAR BRAKES

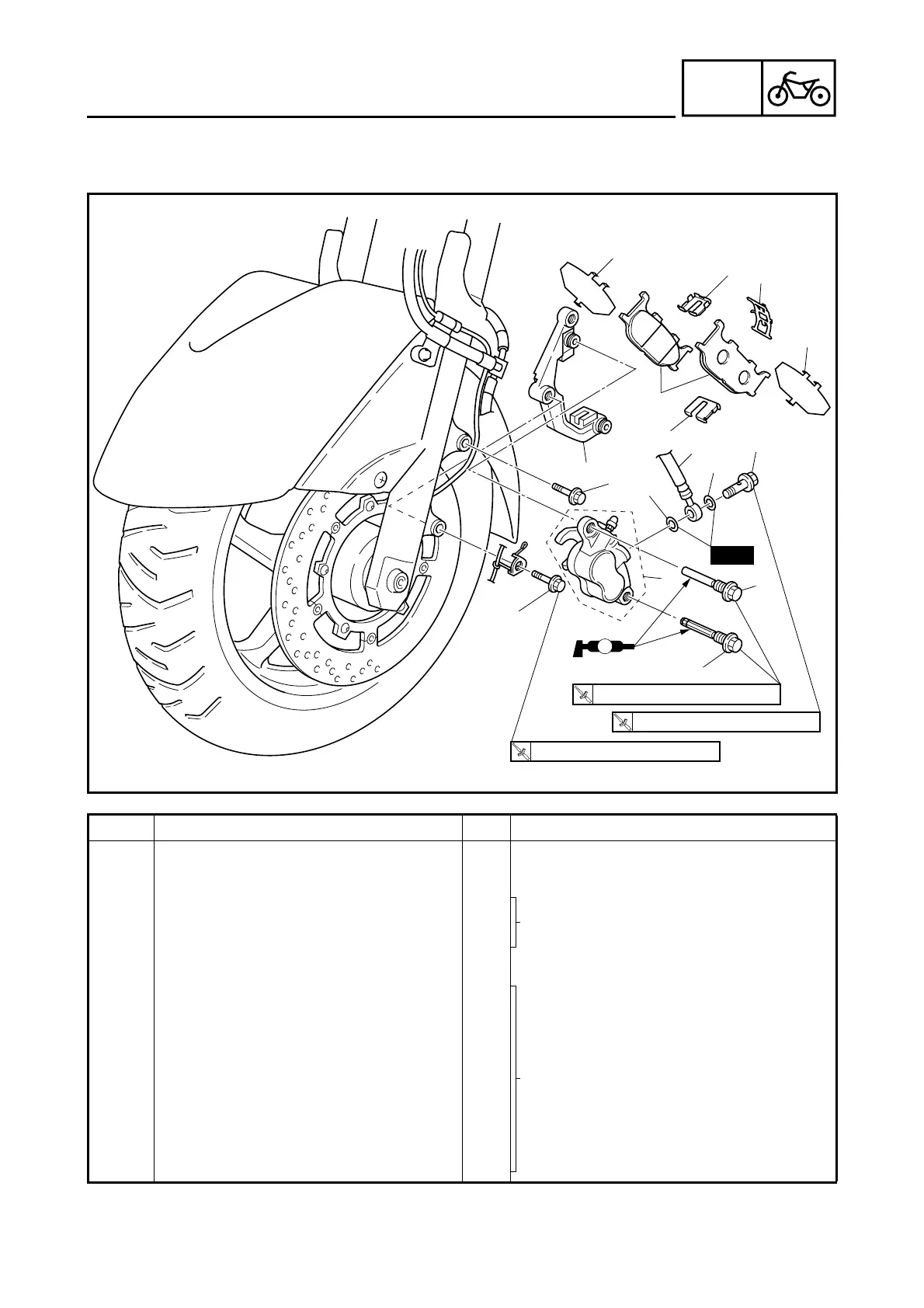

FRONT BRAKE CALIPER
1
3
4
5
6
7
10
10
8
8
12
9
New
LS
2
2
T
R
.
.
27 Nm (2.7 m
•
kg, 19 ft
•
Ib)
T
R
.
.
40 Nm (4.0 m
•
kg, 29 ft
•
Ib)
11
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
11
Order Job/Part Q’ty Remarks
Removing the front brake caliper
Remove the parts in the order listed.
Brake fluid Drain.
1 Union bolt 1 Refer to “DISASSEMBLING THE
FRONT BRAKE CALIPER” and
“ASSEMBLING AND INSTALLING THE
FRONT BRAKE CALIPER”.
2 Copper washer 2
3 Brake hose 1
4 Front brake caliper retaining bolt
(lower)
1
Refer to “ASSEMBLING AND INSTALL-
ING THE FRONT BRAKE CALIPER”.
5 Front brake caliper retaining bolt
(upper)
1
6 Brake caliper 1
7 Brake pad 2
8 Brake pad shim 2
9 Brake pad spring 1
10 Brake pad spring 2
