TRANSMISSION
TRANSMISSION

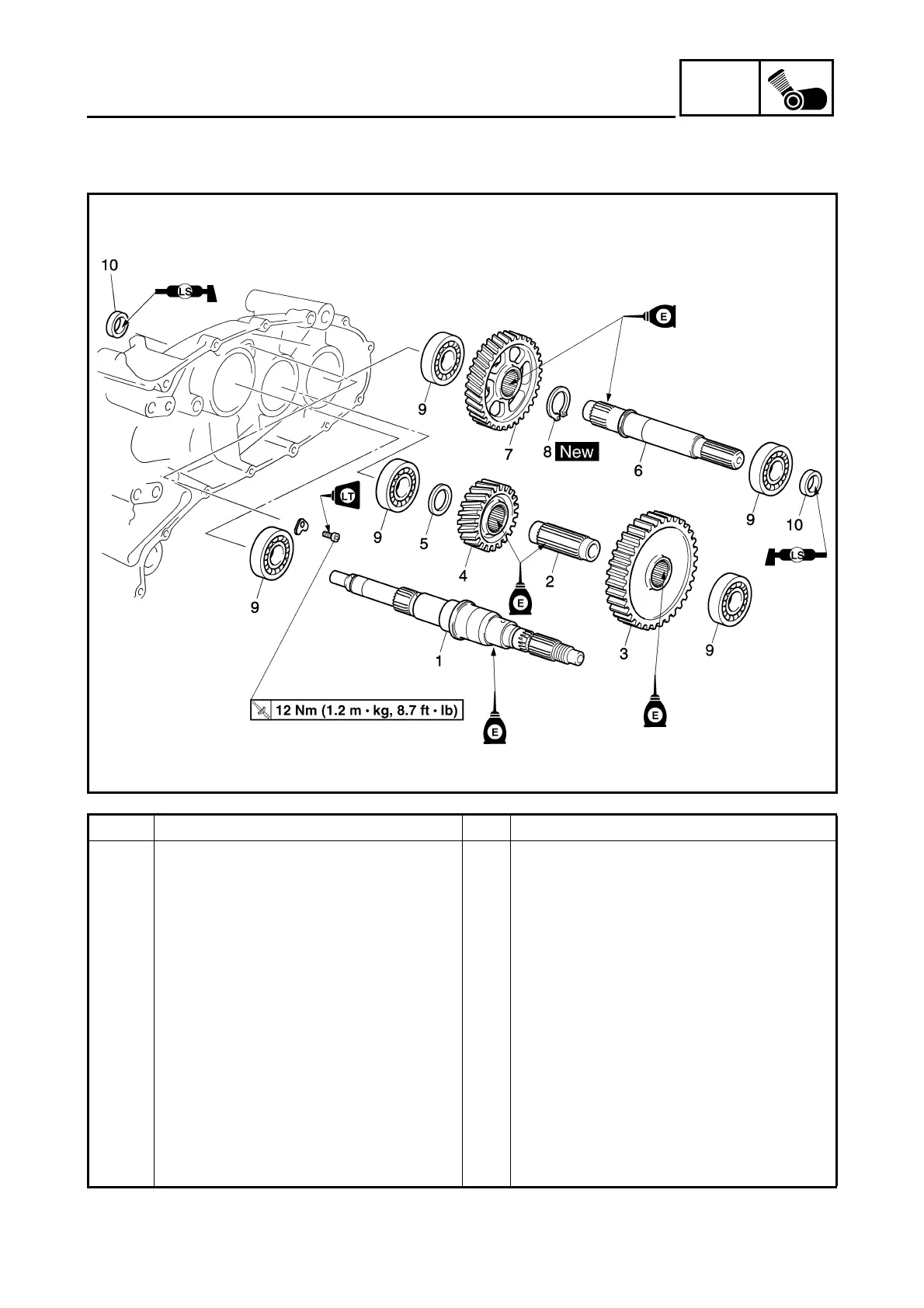

Order Job/Part Q’ty Remarks
Removing the transmission
Remove the parts in the order listed.
Left crankcase Refer to “CRANKCASE AND CRANK-
SHAFT”.
1 Secondary shaft 1
2 Main axle 1
3 Primary driven gear 1
4 First pinion gear 1
5 Washer 1
6Drive axle 1
7 First wheel gear 1
8 Circlip 1
9 Bearing 5
10 Oil seal 2
For installation, reverse the removal pro-
cedure.
