2 - 32
SPEC
CABLE ROUTING
EAS00035

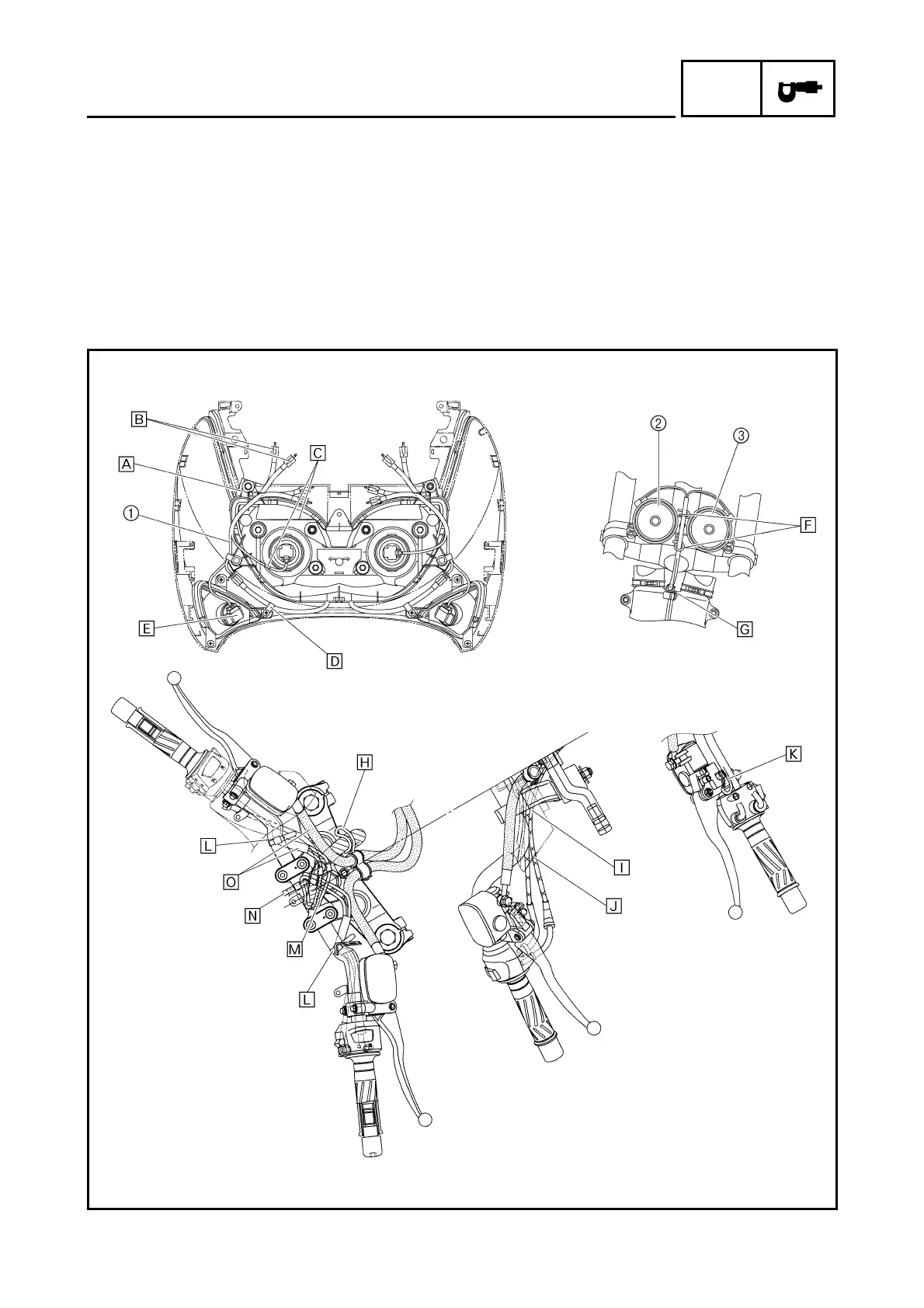

CABLE ROUTING
1
Headlight sub-wire harness
2
Horn
3
Horn (H mark on the back of the horn)
È
Securely fasten the wire strap to the front cowl-
ing hook to prevent it from being pulled out by
the headlight assembly. (left and right)
É
Connect the headlight sub-wire harness to the
wire harness on top of the stay (left and right).
After making the connection, push the coupler
between the front cowling and the air filter case.
Ê
Connect the taped headlight lead coupler to the
headlight’s white marked side (left side: high
beam side).
(For GB the right side is the high beam side.)
To Next Page
