Yamaha XP500 - Installing the Engine

5 - 6
ENG
ENGINE REMOVAL
INSTALLING THE ENGINE

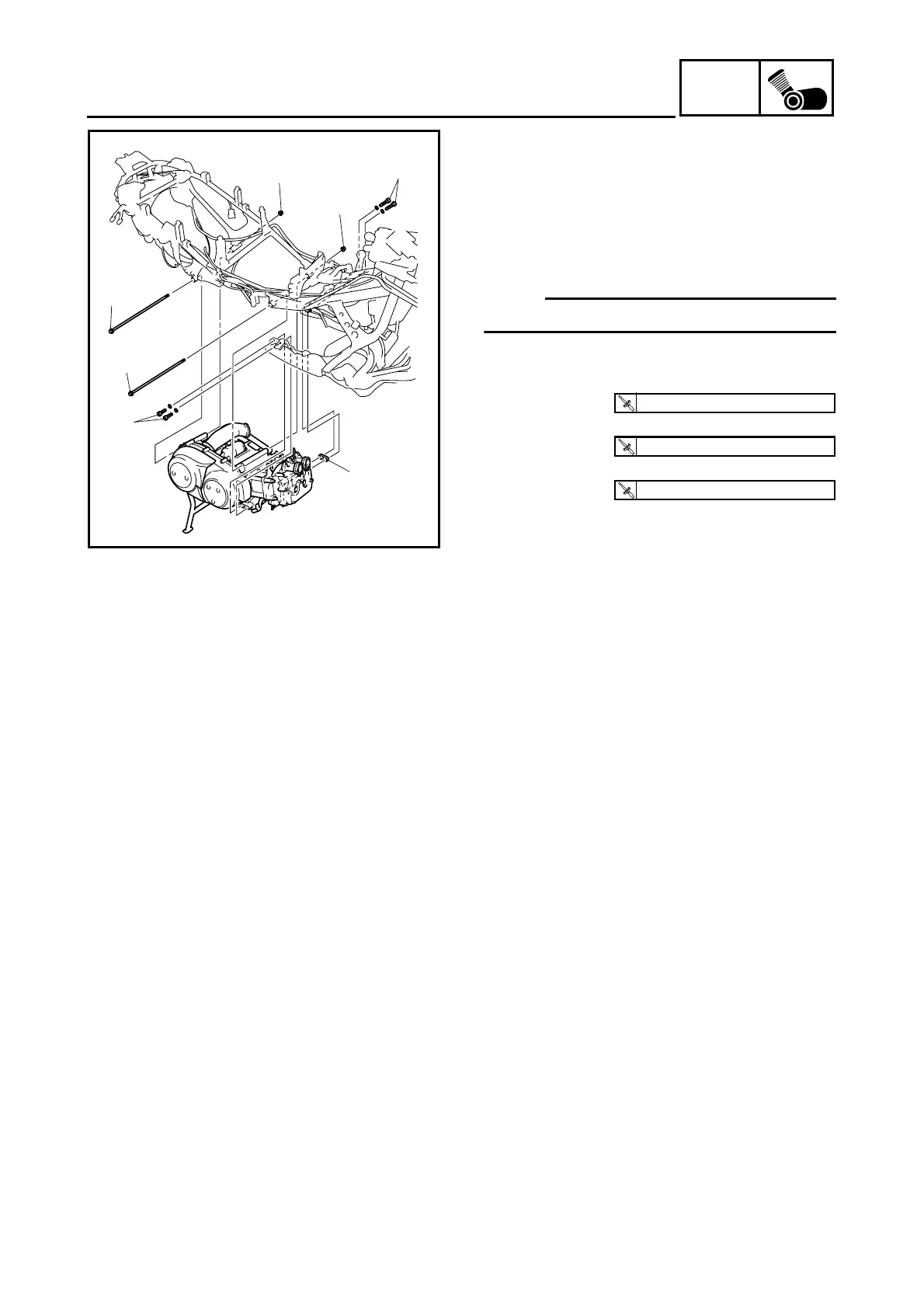

1. Install:
• rear mounting bolt/nut 1
• front upper mounting bolt/nut 2
• washers
• spacer 3
• front lower mounting bolts 4
NOTE:
Do not fully tighten the bolts.
2. Tighten:
• rear mounting nut 1
• front upper mounting nut 2
• front lower mounting bolts 4
1
2
4
3
2
1
4
T
R
.
.
87 Nm (8.7 m · kg, 63 ft · lb)
T
R
.
.
87 Nm (8.7 m · kg, 63 ft · lb)
T
R
.
.
48 Nm (4.8 m · kg, 35 ft · lb)
