2 - 33
SPEC

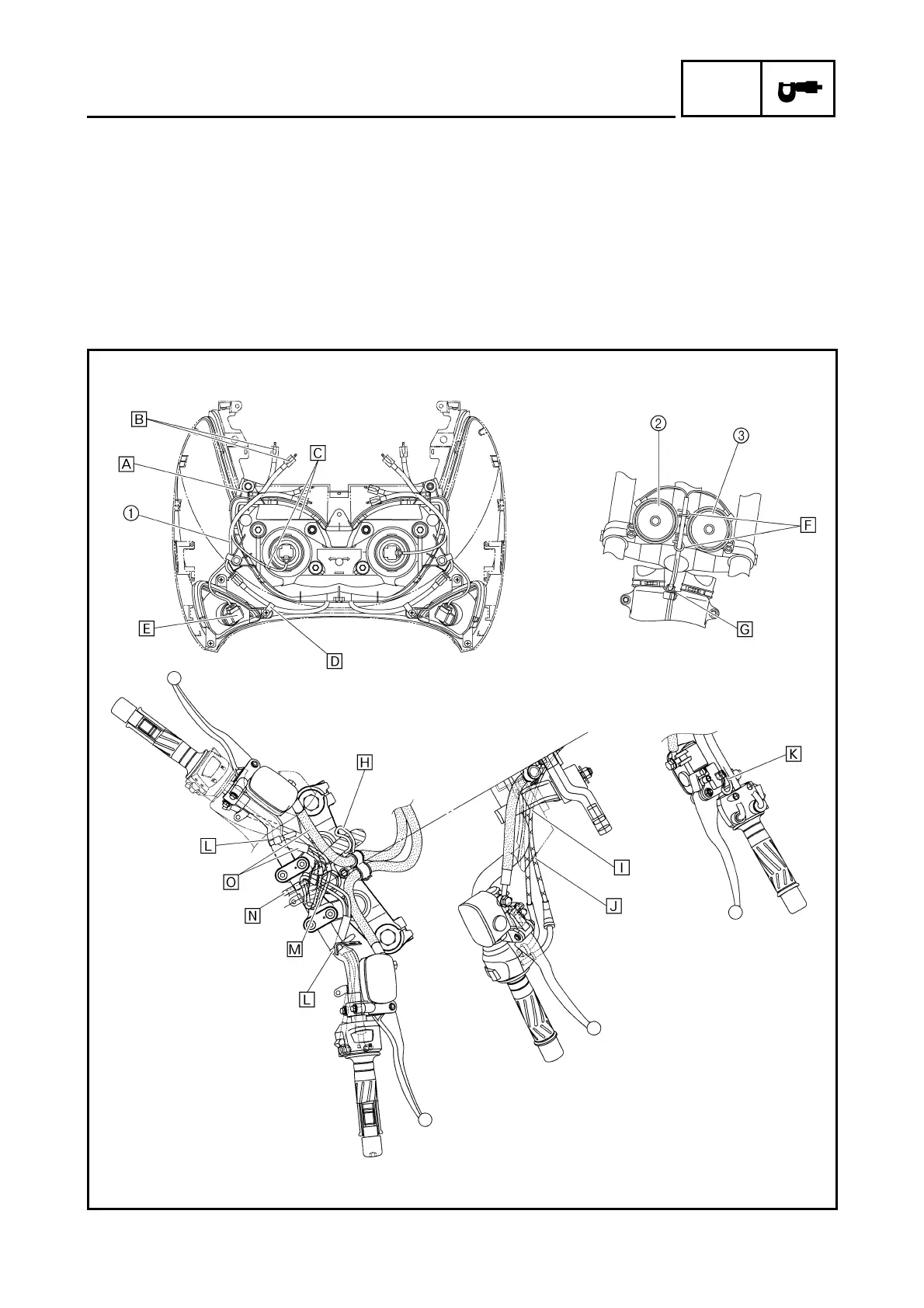

CABLE ROUTING
Ë Fasten the headlight sub-wire harness using a
lead holder. (left and right)
Ì Connect the turn signal light. (left and right)
Í Route the horn lead through the wire guide.
Î After passing the horn lead through the lead
holder, crimp the lead holder.
Ï Install a wire harness guide to hold down the
wire harness.
Ð Route the throttle cables between handle under
cover and upper bracket.
Ñ Route the throttle cables through the hole of the
lower handlebar cover.
Ò Connect the brake light switch lead through the
handlebar switch side.
Ó Fasten the handlebar switch lead to the handle-
bar using a plastic band. The fastening location
is the bend area on the bottom of the handlebar.
Ô Route the left handlebar switch leads over the
right handlebar switch leads.
