2 - 34
SPEC

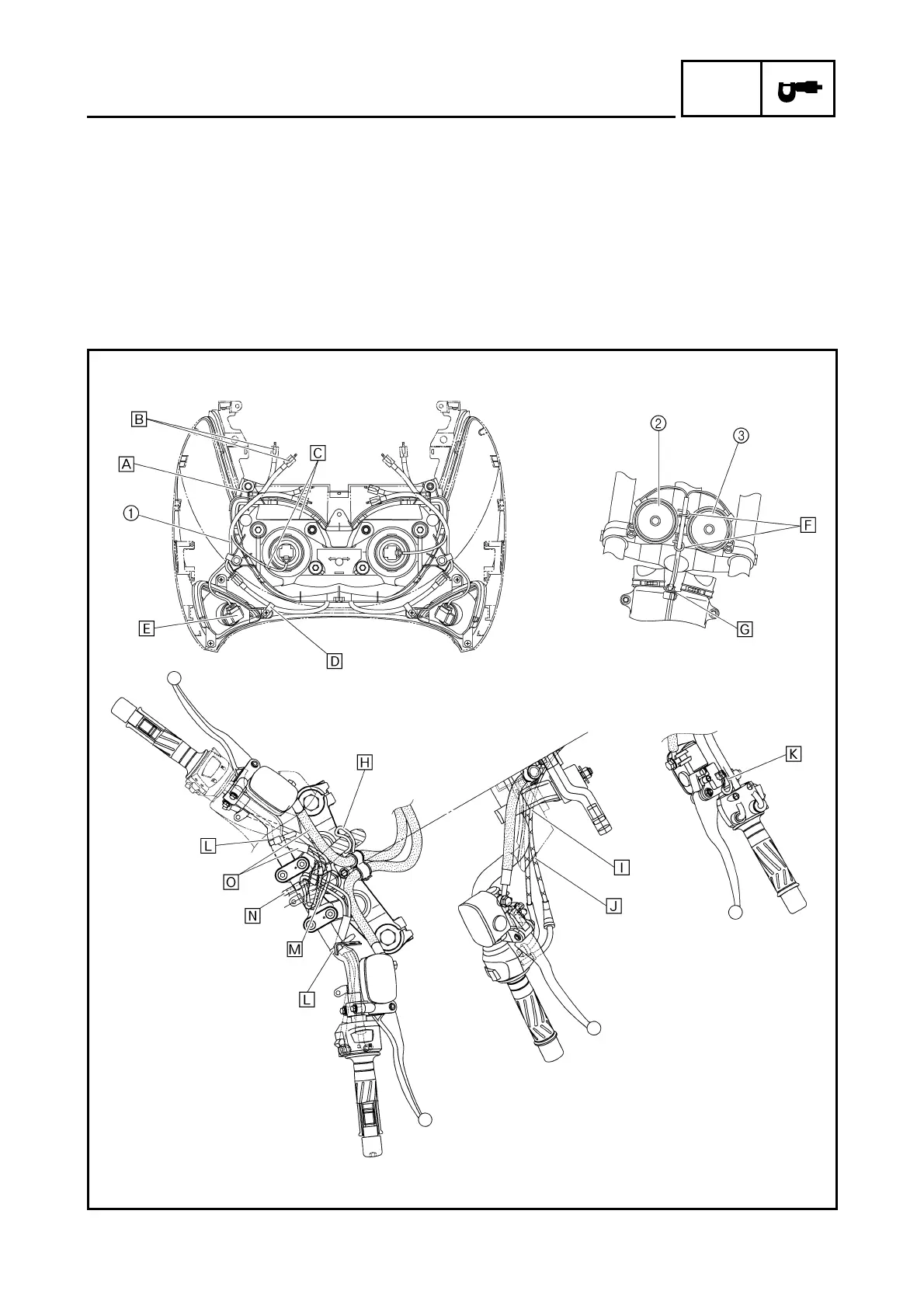

CABLE ROUTING
Õ Fasten the right handlebar switch leads to the
handlebar with a plastic band.
Ö Route the rear brake hose and left handlebar
switch leads over the wire harness.
