2 - 35
SPEC

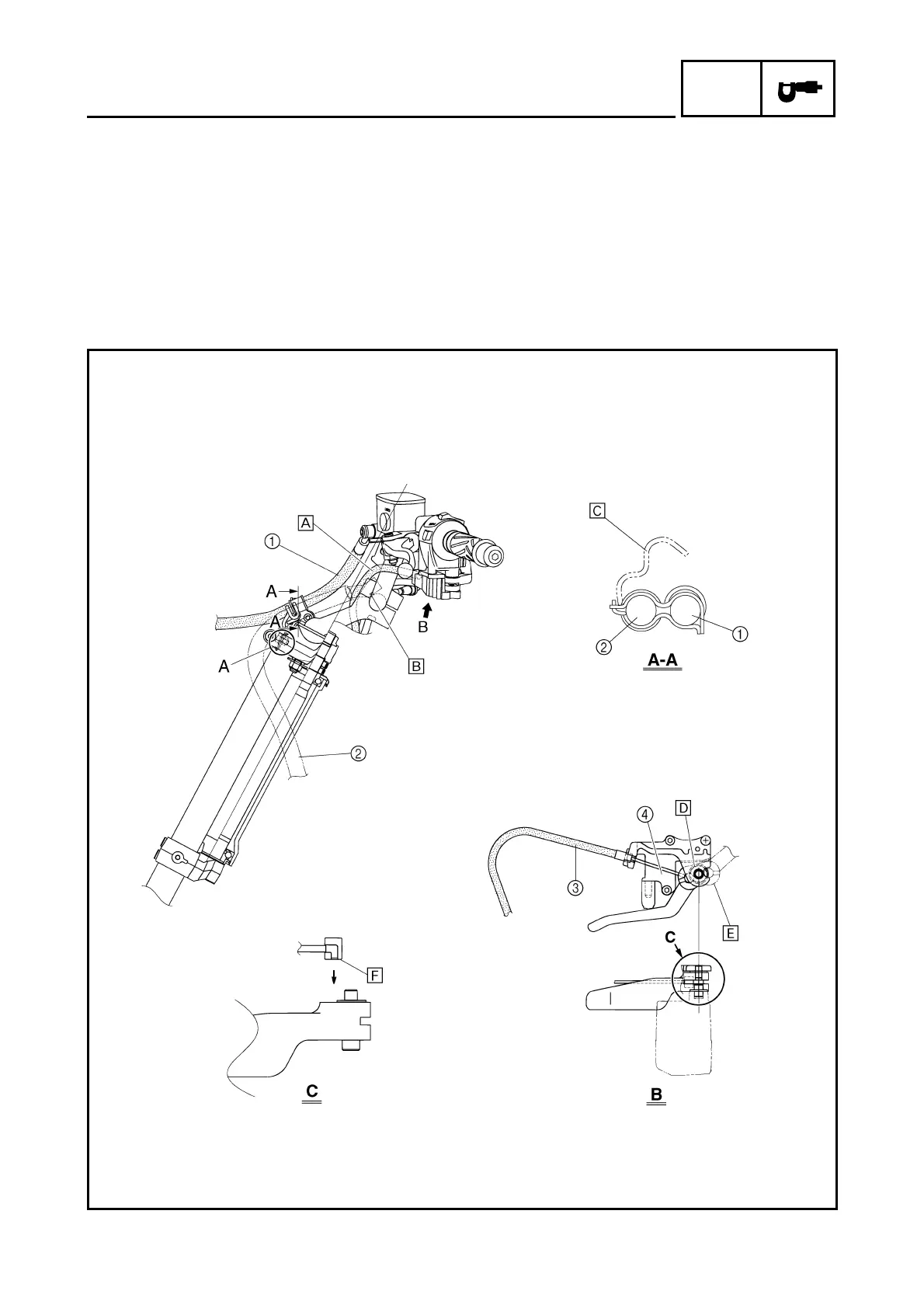

CABLE ROUTING
1 Rear brake hose
2 Front brake hose
3 Rear brake lock lever cable
4 Left handlebar switch
È Route the rear brake lock lever cable in front of
the handlebar, then down through the space
between the handlebar and the upper bracket.
É Fasten the wire harness by sliding the plastic
holder on the wire harness onto the stud on the
handlebar.
Ê Fasten the grommets on the brake hoses with
the holder.
Ë Install the rear brake lock lever cable after lubri-
cating the grease to the cable end.
Ì Install the rear brake lock lever cable after turn-
ing the parking brake lever as illustration.
Í Install the cable end (Face the notch side to
lever).
To Next Page
