2 - 37
SPEC

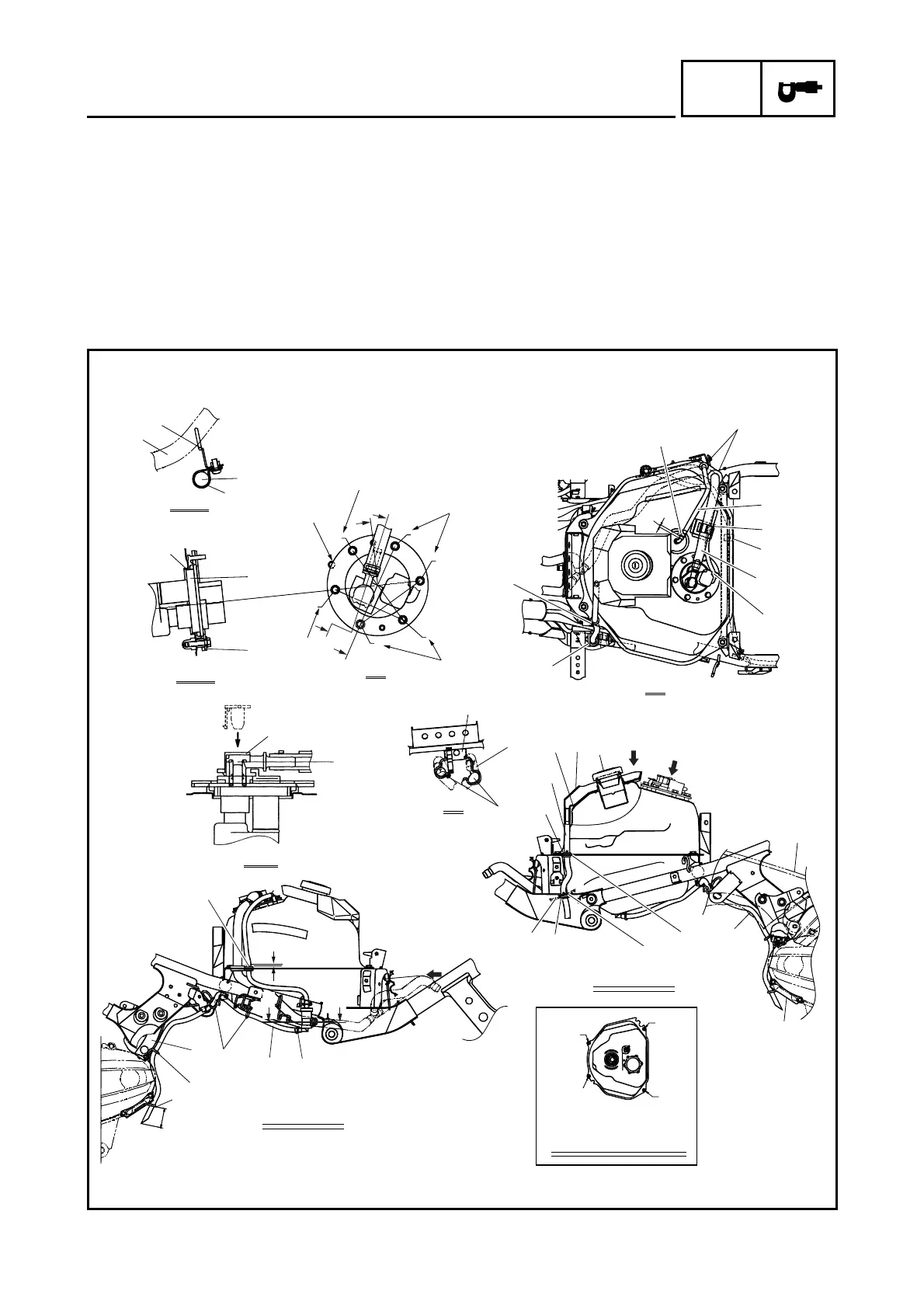

CABLE ROUTING
È Do not protrude from the upper side cover moul-
ding (left).
É Fix the fuel overflow hose with the white paint
mark as shown.
Ê Pass the fuel tank breather hose to the hose
guide of frame (both right and left).
Ë Pass the fuel tank breather hose to the hose
guide of rear footrest assembly.
Ì Pass the fuel tank breather hose to the hose
guide of frame.
Í 50 ~ 70 mm (1.97 ~ 2.76 in)
Î 2 ~ 5 mm (0.08 ~ 0.20 in)
Ï Install the grommet to the footrest board
securely.
Ð Install the grommet to the fuel tank securely.
Ñ Make sure that the clip end faces to the front
side.
Ò Install the grommet to the fuel tank securely after
installing the hoses.
Ó Fasten the fuel hose and fuel pump lead with a
hose holder, making sure that there are no twists
in the hose or lead.
1
2
4
3
1
3
6
4
2
5
Î
Õ
Õ
Õ
Õ
Ô
Ö
A
C
A
B
F
H
E
F
E
F
×
F
I
J
D-D
E-E
K
L
3
Î
Ê
Ë
Ì
Í
C
C
D
E
F
G
C
D
D
Ñ
Ò
Ð
Ï
È
5
4
3
2
1
3
9
8
6
7
É
Ï
F-F
M
Ø
Ó
B
B
A
0
Ð
Tighten the fuel
tank comp.bolt
Right side
Left side
To Next Page
