LED Operator
Display
Name Pg.
oL2 Drive Overload 143
oL3 Overtorque Detection 1 143
oPr Operator Connection Fault 144
ov Overvoltage 150
PF Input Phase Loss 145
LED Operator
Display
Name Pg.
rH Dynamic Braking Resistor 145
<3>
Uv1 Undervoltage 146
Uv3 Soft Charge Circuit Fault 146
<1>
Displayed as when occurring at drive power up. When one of the faults occurs after successfully
starting the drive, the display will show
.
<2>
Displayed as when occurring at drive power up. When one of the faults occurs after successfully
starting the drive, the display will show .
<3> Uv1 fault is not saved to the fault history
n
Minor Faults and Alarms
When a minor fault or alarm occurs, the ALM LED flashes and the text display shows an
alarm code. A fault has occurred if the text remains lit and does not flash. Refer to Alarm
Detection on page 147. An overvoltage situation, for example, can trigger both faults and
minor faults. It
is therefore important to note whether the LEDs remain lit or if the LEDs flash.

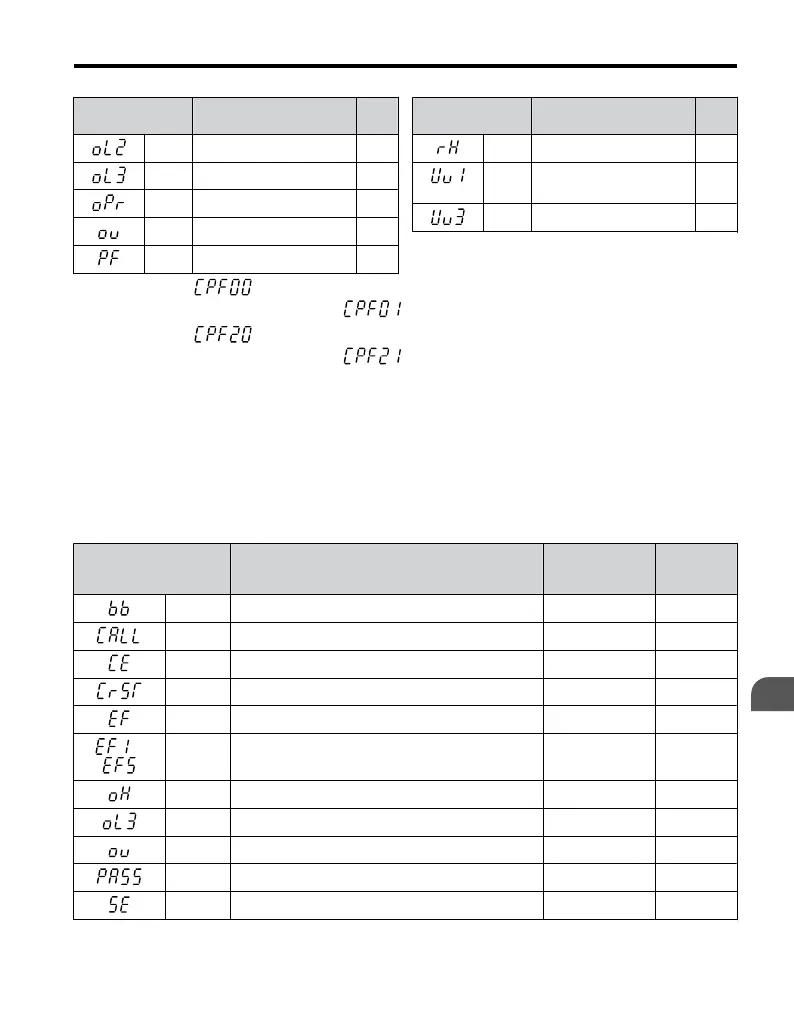

Table 5.5 Minor Fault and Alarm Displays
LED Operator Display Name
Minor Fault
Output
(H2-01 = 10)
Pg.
bb Drive Baseblock No output 147
CALL Serial Communication Transmission Error YES 147
CE MEMOBUS/Modbus Communication Error YES 147
CrST Cannot Reset YES 148
EF Run Command Input Error YES 148
to EF1 to
EF5
External Fault (input terminal S1 to S5) YES 148
oH Heatsink Overheat YES 149
oL3 Overtorque 1 YES 150
ov Overvoltage YES 150
PASS MEMOBUS/Modbus Test Mode Complete No output 150
SE MEMOBUS/Modbus Test Mode Fault YES 150
5.3 Drive Alarms, Faults, and Errors
YASKAWA ELECTRIC TOEP C710606 25D YASKAWA AC Drive J1000 Installation & Start-Up Manual
135
5
Troubleshooting
