A – Push the connectors together so no space remains between
them.

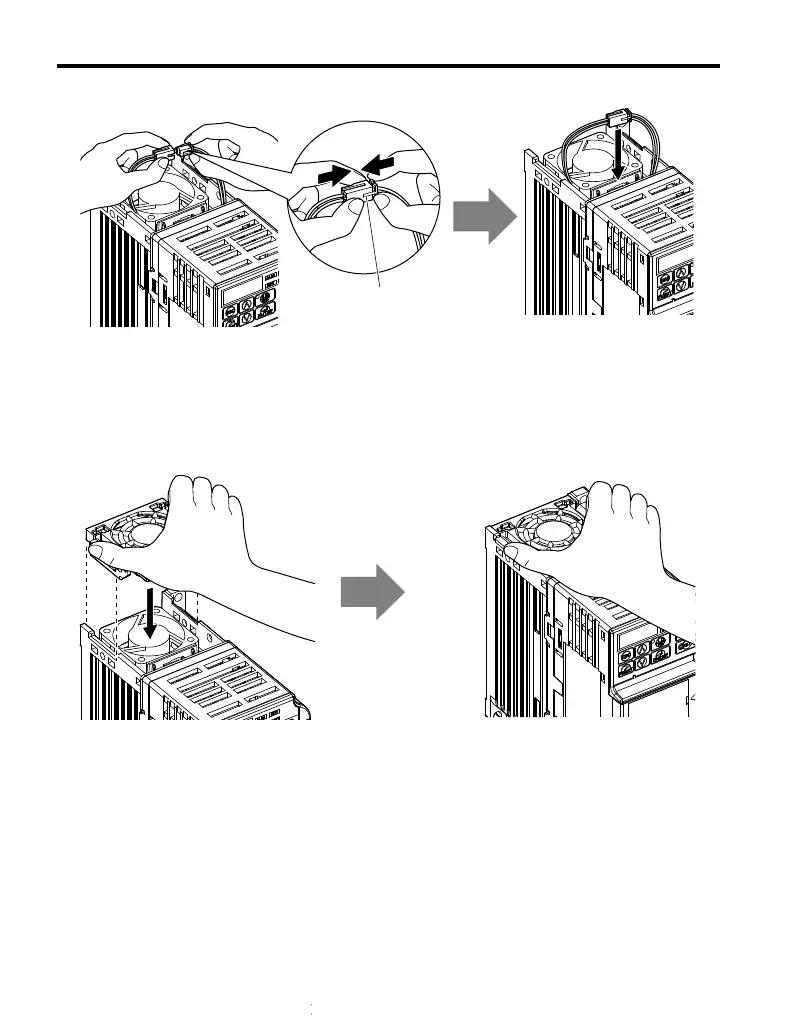

Figure 6.4 Connectors
Note: Ensure that the left and right tabs are locked back into place.
3.
Align the left and right cover tabs to install the fan cover back on the top of the drive.
Figure 6.5 Installation
6.4 Drive Cooling Fans
