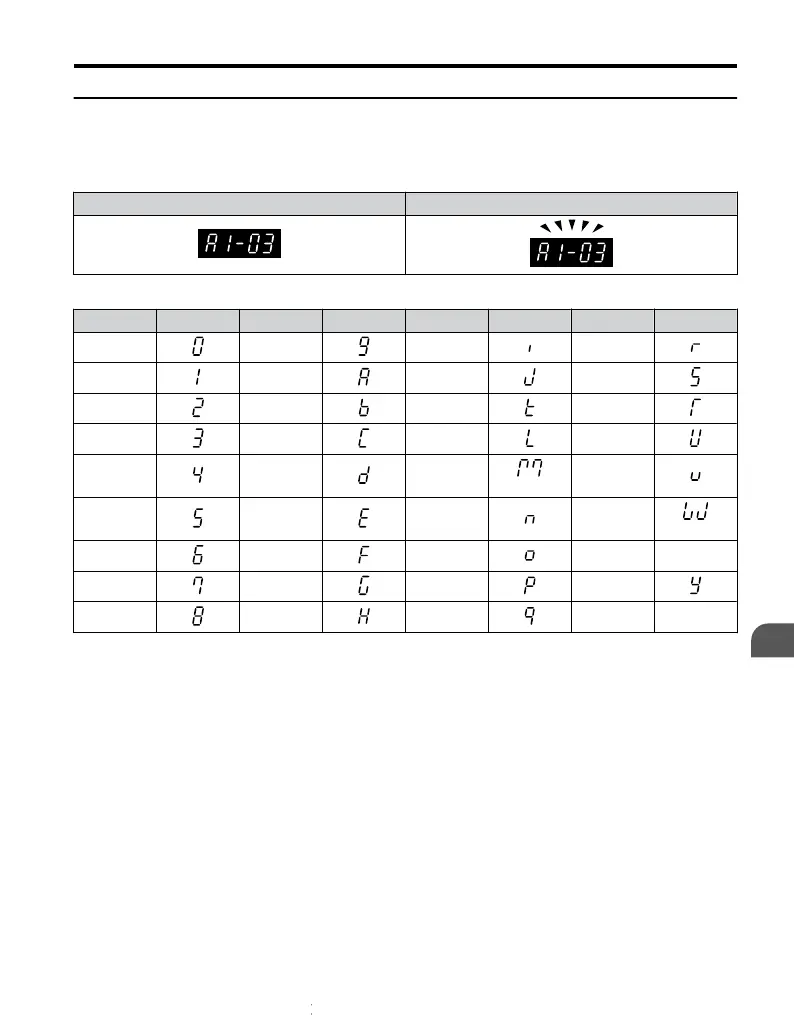

Digital Text Display
Text appears
on the LED Operator as shown below. This section explains the meaning of text
as it appears on the display screen.
Lit Flashing
Table 4.2 Digital Text Display
Text LED Text LED Text LED Text LED
0 9 I R
1 A J S
2 B K T
3 C L U
4 D M
<1>
V
5 E N W
<1>
6 F O X None
7 G P Y
8 H Q Z None
<1> Displayed in two digits.
