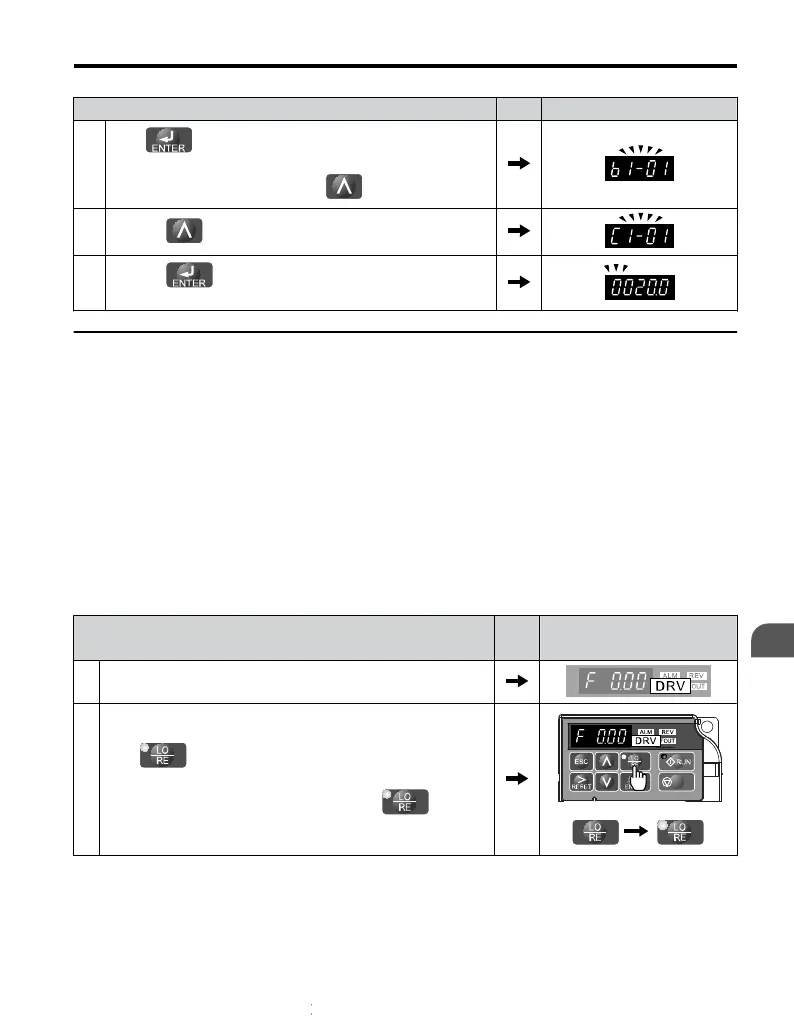

Step Display/Result
3.
Press
to enter the list of parameters that have been edited
from their original default settings.
Scroll through the list by pressing the key.
4.
Press the key until C1-01 appears.
5.
Press the key to access the setting value. (number farthest
to the left flashes)
u
Switching Between LOCAL and REMOTE
Entering the run command using the LED operator is referred to as LOCAL, while entering
the run
command from an external device via the control circuit terminals or network option
is referred to as REMOTE.
WARNING! Sudden Movement Hazard. The drive may start unexpectedly if the Run command is already
applied when switching from LOCAL mode to REMOTE mode when b1-07 = 1, resulting in death or serious
injury. Be sure all personnel are clear of rotating machinery and electrical connections prior to switching
between LOCAL mode and REMOTE mode.
There are two ways to switch between LOCAL and REMOTE.
Note: 1. After selecting LOCAL, the LO/RE light will remain lit.
2. The drive will not allow the user to switch between LOCAL and REMOTE during run.
n
Using the LO/RE Key on the LED Operator
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
2.
Press . The LO/RE light will light up. The drive is now in
Local.
To set
the drive for REMOTE operation, press the
key again.
STOP
4.3 The Drive and Programming Modes
YASKAWA ELECTRIC TOEP C710606 26B YASKAWA AC Drive – J1000 Quick Start Guide
85
4
Start-Up Programming
& Operation
