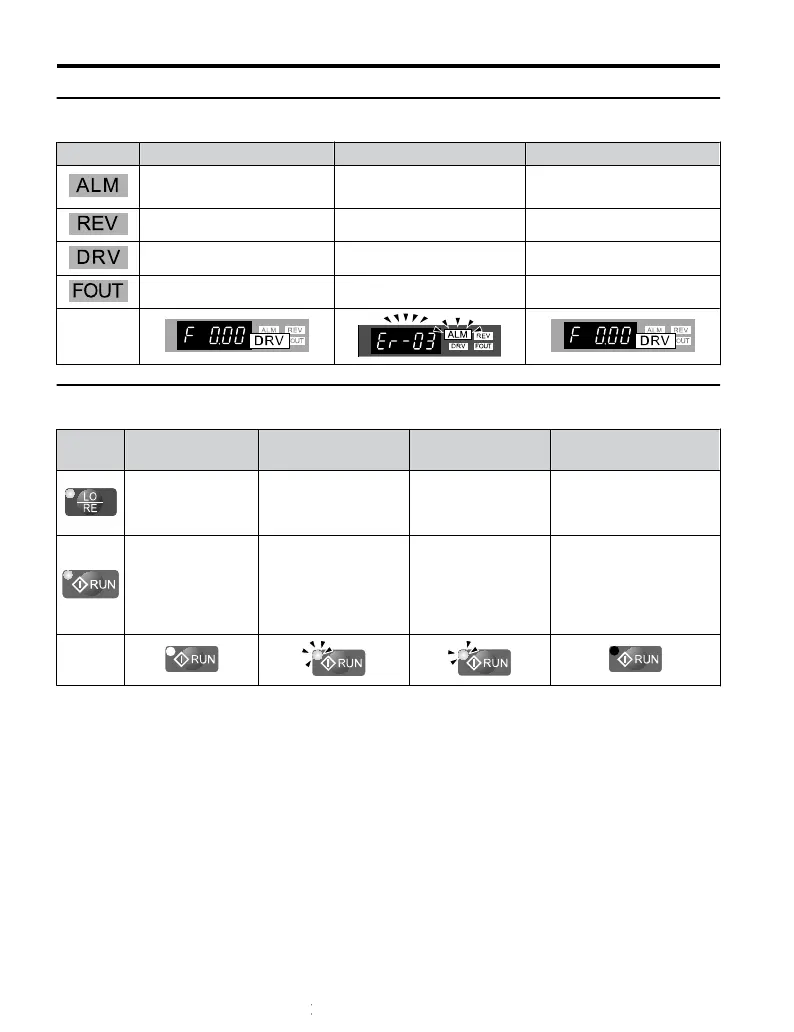

LED Screen Displays
Display Lit Flashing Off
When the drive detects an alarm
or error
• When an alarm occurs
•
oPE detected
Normal state (no fault or alarm)
Motor is rotating in reverse — Motor is rotating forward
Drive Mode — Programming Mode
Displays output frequency (Hz) — —
As illustrated
in this
manual
u
LO/RE LED and RUN LED Indications
LED Lit Flashing
Flashing Quickly
<1>
Off
When a Run command
is selected from the
LED operator
(LOCAL)
– –
Run command is selected
from device other than LED
operator (REMOTE)
During Run
• During deceleration to
stop
•
When a Run
command is input and
frequency reference is
0
• During deceleration
at a fast-stop.
• During stop by
interlock operation.
During stop
As shown
<1> Refer to Figure 4.1 for the difference between “flashing” and “flashing quickly”.
4.2 Using the Digital LED Operator
76
YASKAWA ELECTRIC TOEP C710606 26B YASKAWA AC Drive – J1000 Quick Start Guide
