H
X
L
W
Y
LINE
A
PE
LOAD

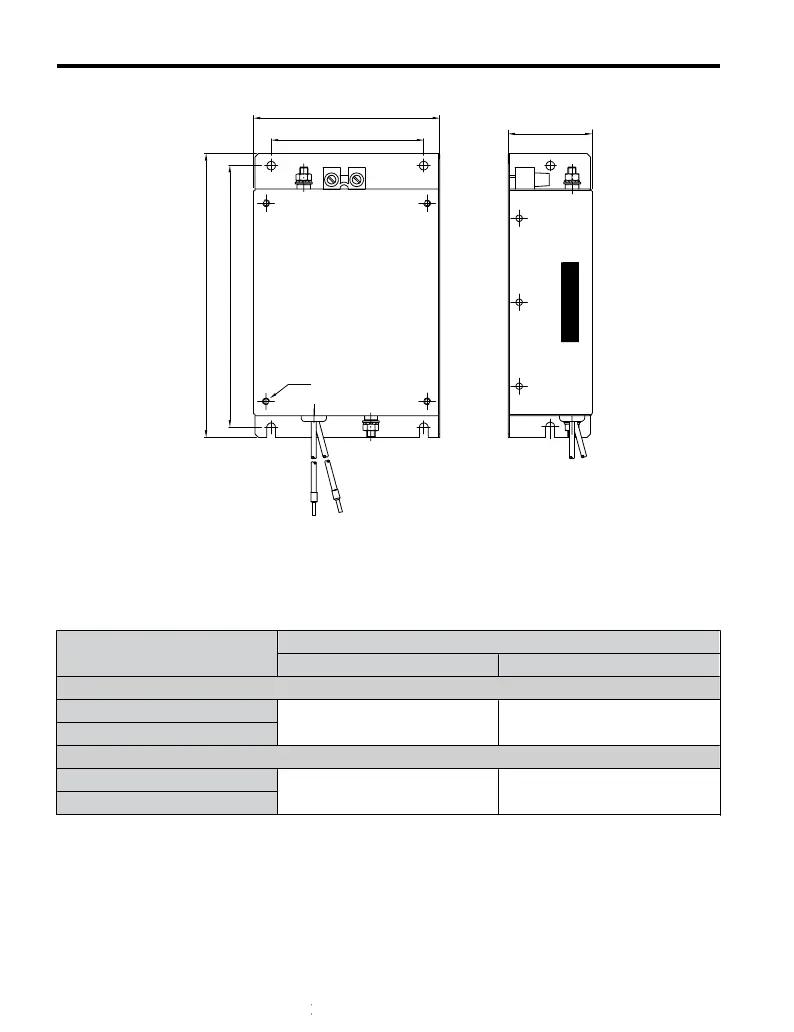

Figure C.4 EMC Filter Dimensions
n
DC Link Chokes for EN 61000-3-2 Compliance
Table C.2 DC Link Chokes for Harmonics Reduction
Drive Model
CIMR-Jo
DC Link Choke
Model Rating
200V Three-Phase Units
2A0004
UZDA-B
5.4 A
8 mH
2A0006
400 V Three-Phase Units
4A0002
UZDA-B
3.2 A
28 mH
4A0004
Note: Models not listed in the above table do not require a DC link choke for EMC compliance.
C.2 European Standards
246
YASKAWA ELECTRIC TOEP C710606 26B YASKAWA AC Drive – J1000 Quick Start Guide
