YASKAWA CIMR-JC4A0002BAA - Page 59

+V
A1
AC
A
B
C
D
A – Drive
B –
Ground terminal (shield
connection)
C – (+V) Frequency setting
power source +10.5 Vdc
maximum 20 mA
D – (A1) Main speed
frequency reference 0 to
+10 Vdc (20 kΩ)
or
4 to 20 mA (250 Ω)/
0 to 20 mA (250 Ω)

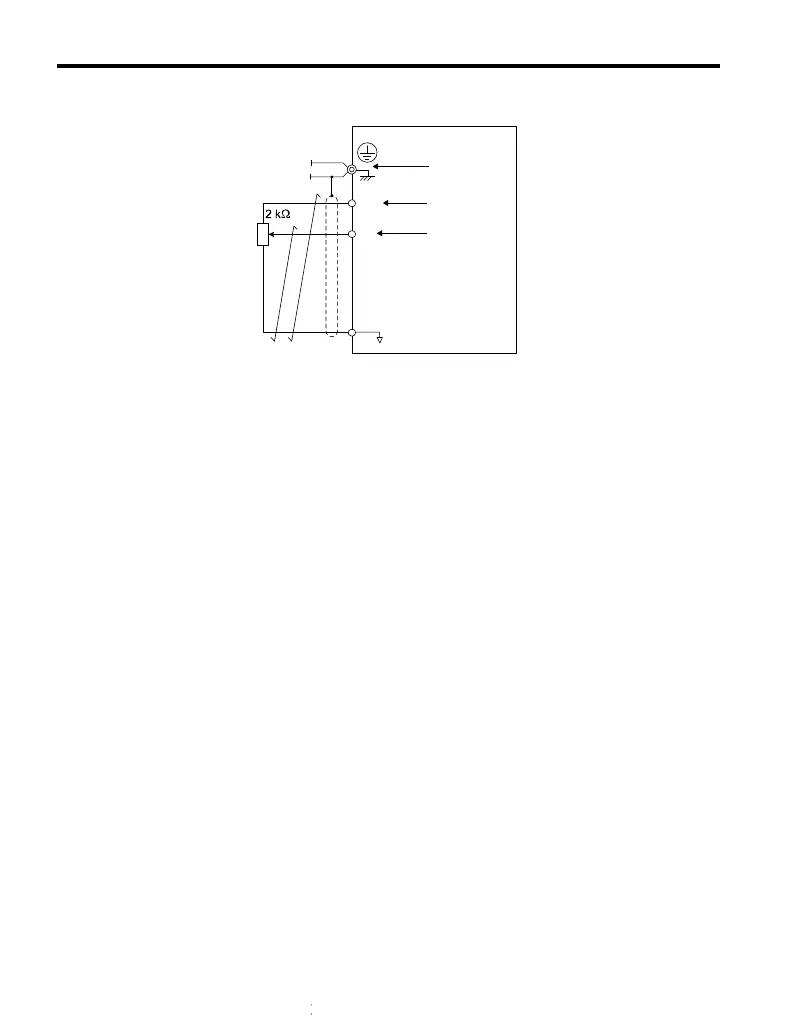

Figure 3.15 Wiring the Frequency Reference to the Control Circuit Terminals (External
Reference)
3.7 Control Circuit Wiring
58
