◆ Keypad Mode and Menu Displays

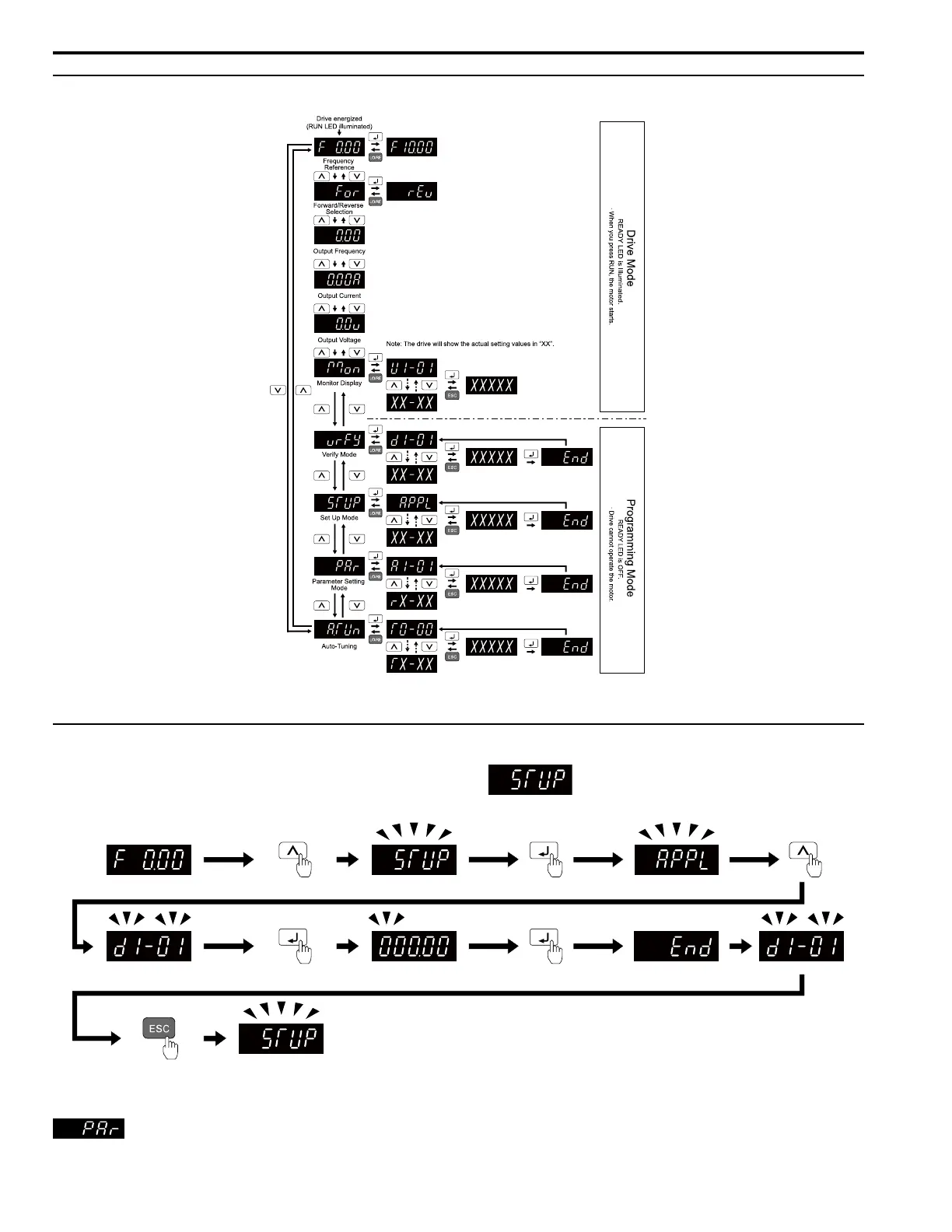

Figure 3.5 Keypad Functions and Display Levels
◆ Set up the Drive with General-Purpose Setup Mode
Drive parameters are in letter groups from A to U. Setup Mode contains only the most frequently used
parameters to help you set up the drive more easily.
Figure 3.6 Parameters in General-Purpose Setup Mode
Table 3.3 shows the parameters available in Setup Mode. To access parameters not shown in the Setup Mode, use the
menu.
