3.3 Keypad Operation
466 YASKAWA TOEPYAIGA5002A GA500 DRIVE PROGRAMMING
3.3 Keypad Operation
Note:
Make sure that you use a keypad that has a flash number of 1004 or later. Keypads that have a flash number of 1003 or earlier will not show
characters correctly.
◆ Digital character mapping table
The LED keypad shows the digital characters as shown in Table 3.4

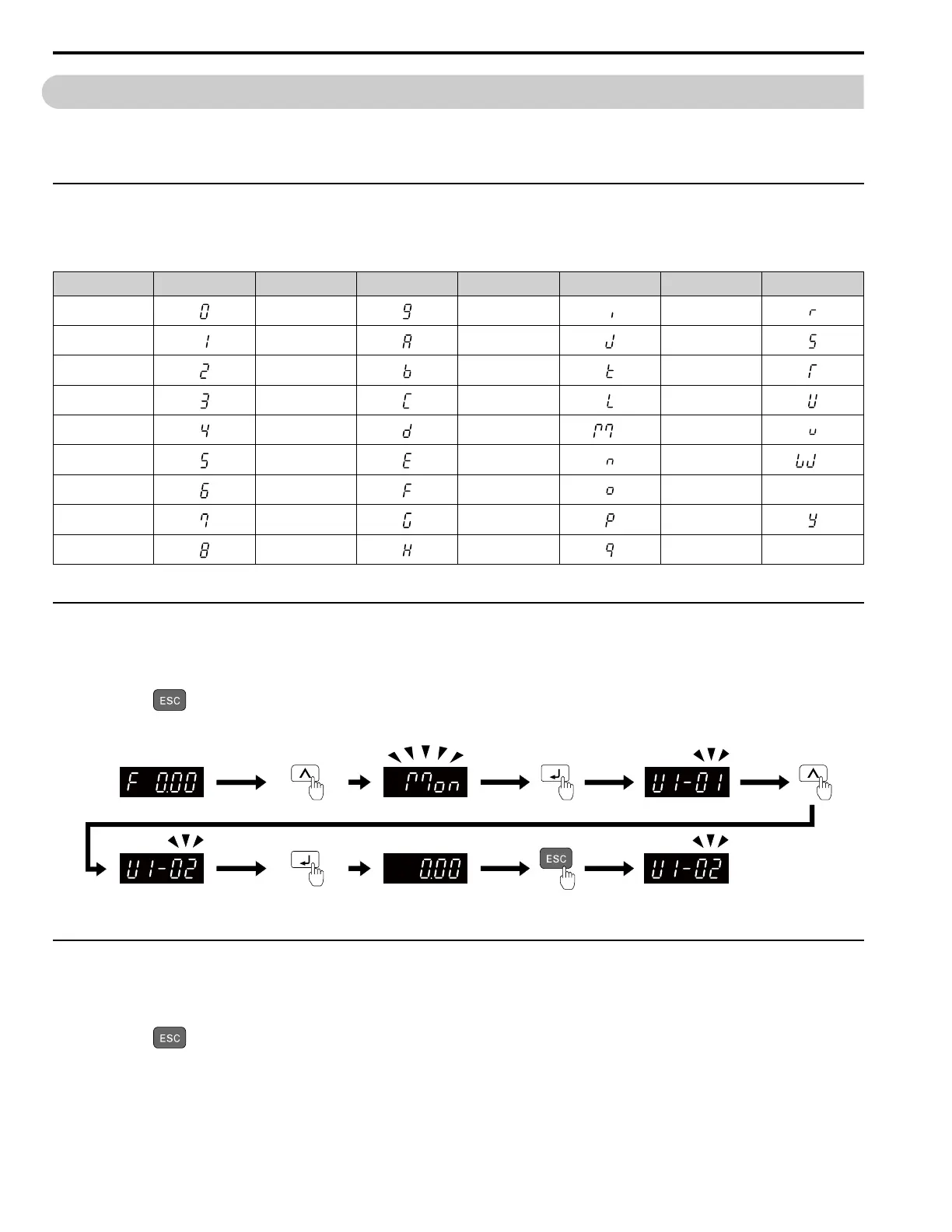

Table 3.4 Digital character mapping table
Characters LED Display Characters LED Display Characters LED Display Characters LED Display
0 9 I R
1 A J S
2 B K T
3 C L U
4 D M
*1
V
5 E N W
*1
6 F O X No indication
7 G P Y
8 H Q Z No indication
*1 Shown across two digits.
◆ Show the Monitor
Show the frequency reference screen.
Note:
Push and hold to return to frequency reference screen from any screen.
Use these steps to monitor parameter settings.
Figure 3.11 How to Monitor the Parameter Setting Values
◆ Check Modified Parameters
Show the frequency reference screen.
Note:
Push and hold to return to frequency reference screen from any screen.
Use Verify mode to view all parameters that are not at default settings. This is very useful when you replace a drive.
This lets you quickly access and re-edit changed parameters.
