Appendix 8. REMOVE/INSTALL DRIVE FACE PLATES
NOTE: Mount the Drive after removing the
front cover, digital operator and terminal
cover.

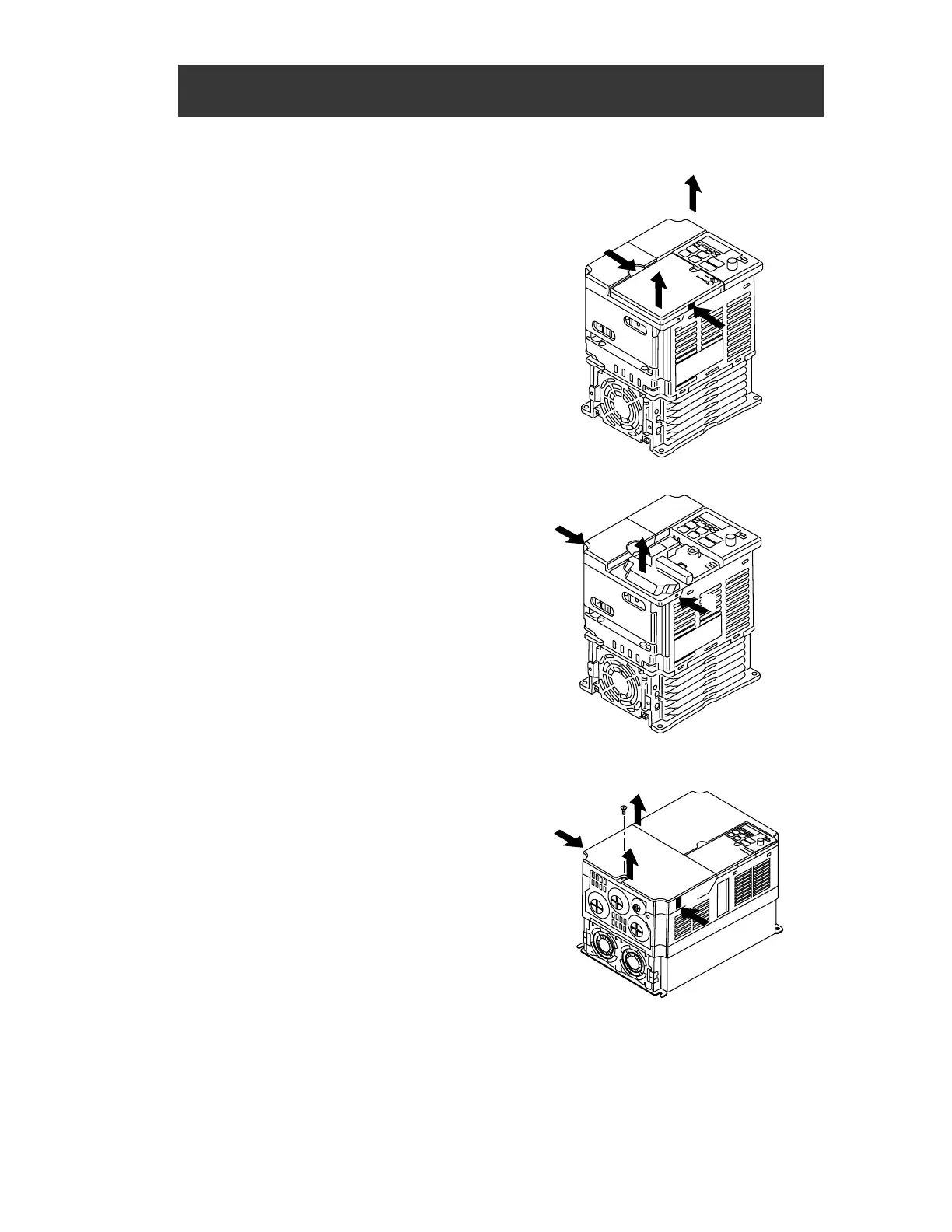

• Removing front cover
Use a screwdriver to loosen the screw on
the front cover surface to direction 1 to
remove it. Then press the right and left
sides to direction 2 and lift the front cover
to direction 3.
• Mounting front cover
Mount the front cover in the reverse order
of the above procedure for removal.
• Removing terminal cover when “W”
(Width) dimensions are 4.25" (108mm),
5.51" (140mm), or 6.69" (170mm)
After removing the front cover, press the
right and left sides to direction 1 and lift
the terminal cover to direction 2.
• Removing terminal cover when “W”
(Width) dimensions are 7.09" (180mm)
Use a screwdriver to loosen the screw on
the terminal cover surface to direction 1
to remove it. Then press the right and left
sides to direction 2 and lift the terminal
cover to direction 3.
• Mounting terminal cover
Mount the terminal cover in the
descending order of the above procedure
for removal.
