n032 : Jog Reference Factory setting: 6.00 Hz
Range: 0.00 to 400.0 Hz
n050 thru n056 : Multi-function Inputs Data 10 : Jog Selection
(Term. S1 - S7)
When jog operation is selected (by external Jog and Run signals), the Drive output will ramp to the
output level set by this parameter.
When an external Jog signal is present, it will override the existing operation mode and the Drive
will ramp to the level set by this parameter.

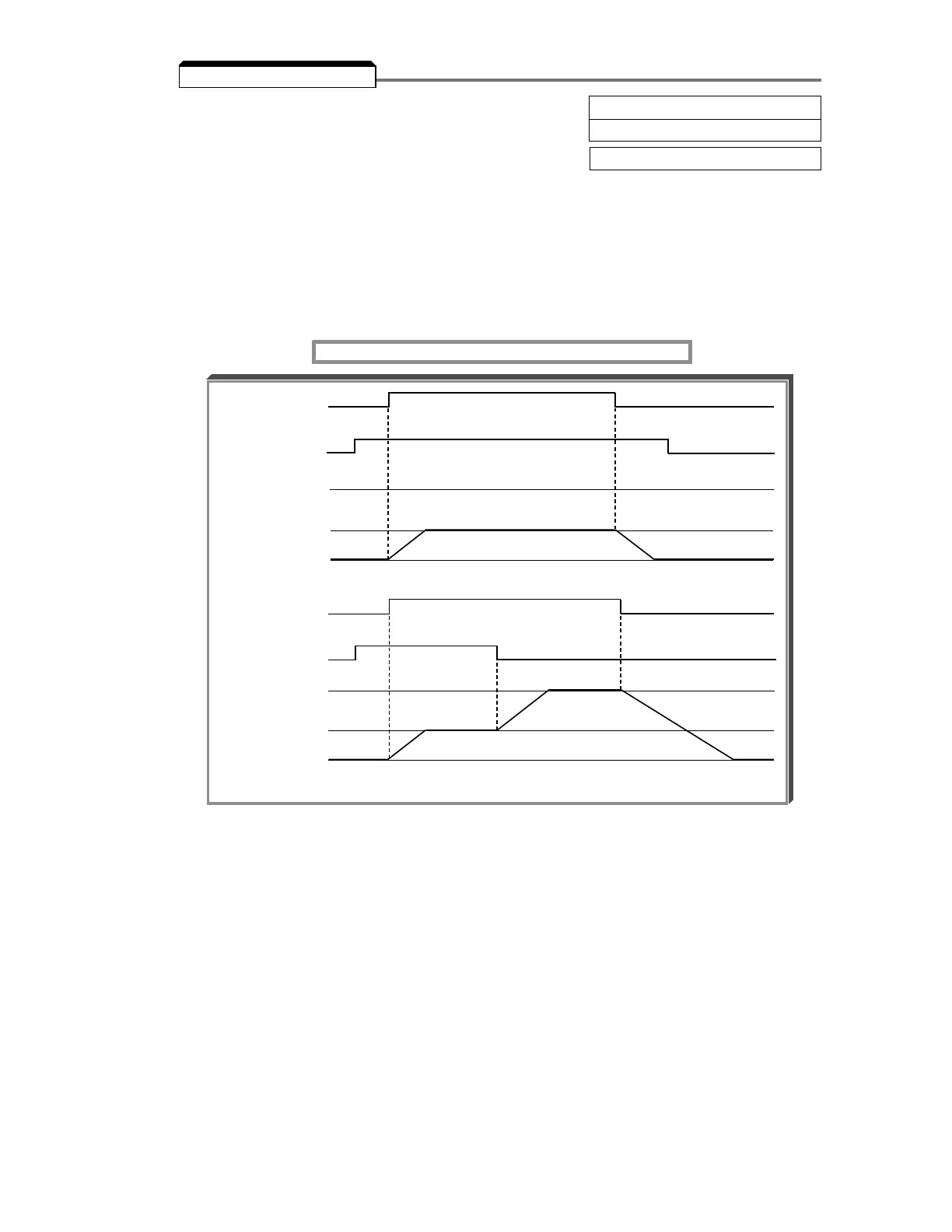

EXAMPLE:
OPERATION BY REMOTE SIGNAL INPUT (RUN & JOG)
Also see descriptions of MULTI-FUNCTION INPUT TERMINALS, paragraph 5.18.
5.12 JOG REFERENCE
FREQ. CMD
n032 JOG
REF.
0
FREQ. CMD
n032 JOG
REF.
0
* Or FWD
RUN *
(Term. S1-S7) JOG
RUN
*
(Term. S1-S7) JOG
To Next Page
