n095 : Speed Coincidence Frequency / Frequency Factory setting: 0.0 Hz
Detection Level
Range: 0.00 to 400.0 Hz
Speed coincidence is used to control an output contact at terminals MA or MB (with respect to
terminal MC), or terminals P1, P2 & PC, when selected by n057, n058 and n059.
n057, n058 or n059 Data 2, 4 or 5
The output contact will close, dependent upon the data programmed into n057, n058 or n059 . See
the appropriate figure below for operation.

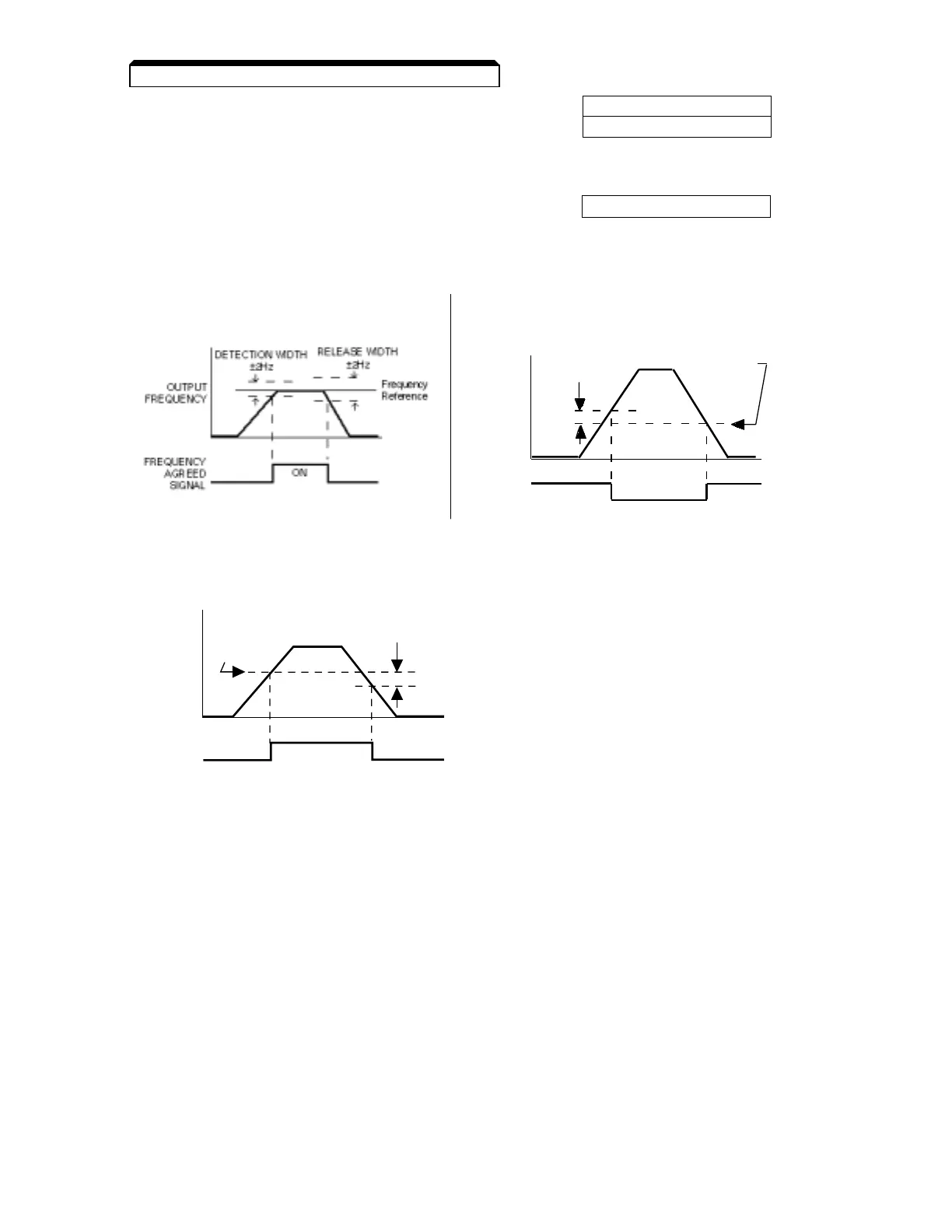

A. Speed at Set Frequency B. Frequency Detection – Low
(setting: n057, n058 or n059 = " 2 ") (setting: n057, n058 or n059 = " 4 ")
C. Frequency Detection – High
(setting: n057, n058 or n059 = " 5 ")
5.19 MULTI-FUNCTION OUTPUT TERMINALS
FREQUENCY
FREQUENCY
DETECTION
LEVEL (Hz)
(n075 )
RELEASE WIDTH
+2HZ
FREQUENCY
DETECTION
SIGNAL
ON
ON
RELEASE WIDTH
–2HZ
FREQUENCY
DETECTION
LEVEL (Hz)
(n075)
OUTPUT
FREQUENCY
FREQUENCY
DETECTION
SIGNAL
