A8-3

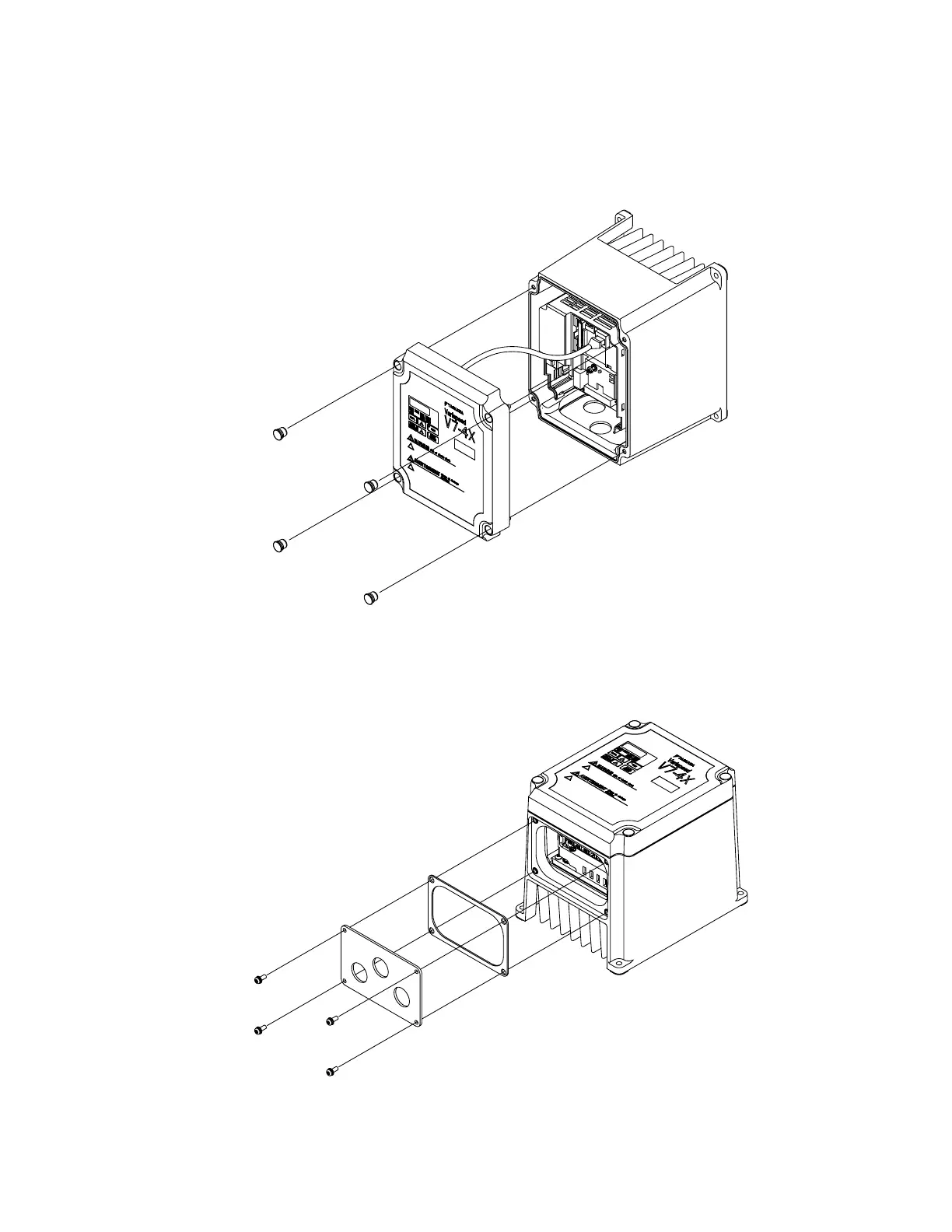

Removing the front cover or the bottom cover of GPD315/V7 - NEMA 4x/12
IMPORTANT
Damage to the drive can occur if the front cover is removed too quickly.
Remove the four mounting bolts and slowly take off the cover. Disconnect the cable between the face
cover and the control board located in the lower portion of the Drive. For mounting, reverse the
direction.
Removing the front cover or the bottom cover of water and dust tight type (NEMA 4)
Remove the four mounting bolts when installing cable glands, etc. Install wiring after inserting cables
through the cable glands and securing them to the bottom cover. See section 1-4 on recommended
cable gland sizes. Conduit plate gasket may be attached to the Drive and may not be removable in
some cases.
To Next Page
