1-12
E. Conformance to European EMC Directive
In order to conform to EMC standards, the following methods are required for line filter application,
cable shielding and drive installation.
The line filter and Drive must be mounted on the same metal plate. The filter should be mounted as
close to the drive as practical. The cable must be kept as short as possible and the metal plate
should be securely grounded. The ground of the line filter and the drive must be bonded to the
metal plate with as much bare-metal contact as possible.
For main circuit input cables, a screened cable is recommended within the panel and is also
suggested for external connections. The screen of the cable should be connected to a solid ground.
For the motor cables, a screened cable (max. 20 m) must be used and the screen of the motor cable
should be connected to ground at both ends by a short connection, again using as much bare-metal
contact as practical.
For a more detailed explanation, refer to the manufacturer document TD 4077, “Installation
Guidelines For EMC Directive using AC Drive Products.”
Table 1-4 and Figure 1-4 show the line filter list for EMC standards and the installation/wiring of the
Drive and line filter.

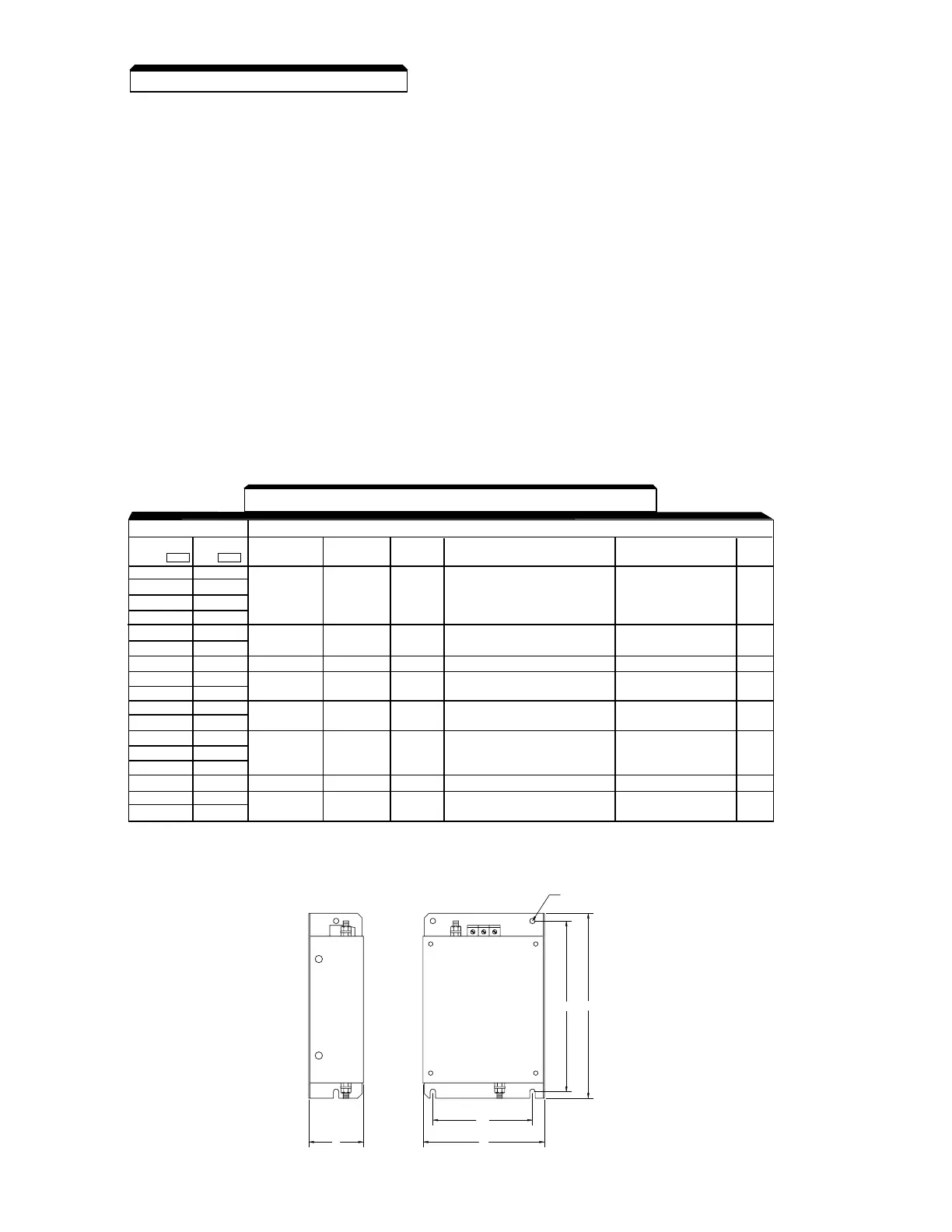

Table 1-4. Line Filters for EMC Standards
Model
Line Filter
CIMR- Part Number Rated Weight Dimensions in in. (mm)
Mounting Dim. in in. (mm) Screw
V7xU MV 05P00616- Current (A) lbs. (kg) H x W x D
(1)
H1 x W1 Size
20P1 A001
20P2 A002
20P4 A003
0001 10 1.8 (0.8) 7.6 x 3.2 x 2.0 (194 x 82 x 50) 7.1 x 2.4 (181 x 62) M5
20P7 A005
21P5 A008
0002 16 2.2 (1.0) 6.7 x 4.4 x 2.0 (169 x 111 x 50) 6.1 x 3.6 (156 x 91) M5
22P2 A011
23P7 A017 0003 26 2.4 (1.1) 6.9 x 5.7 x 2.0 (174 x 144 x 50) 6.3 x 4.7 (161 x 120) M5
25P5 A025
0027 50 5.1 (2.3) 12.0 x 7.2 x 2.2 (304 x 184 x 56) 11.3 x 5.9 (288 x 150) M6
27P5 A033
40P2 B001
0004 5 2.2 (1.0) 6.7 x 4.4 x 1.8 (169 x 111 x 45) 6.1 x 3.6 (156 x 91) M5
40P4 B002
40P7 B003
0005 10 2.2 (1.0) 6.7 x 4.4 x 1.8 (169 x 111 x 45) 6.1 x 3.6 (156 x 91) M5
41P5 B005
42P2 —
43P7 B009 0006 15 2.4 (1.1) 6.9 x 5.7 x 2.0 (174 x 144 x 50) 6.3 x 4.7 (161 x 120) M5
45P5 B015
47P5 B018
00028 30 5.1 (2.3) 12.0 x 7.2 x 2.2 (304 x 184 x 56) 11.3 x 5.9 (288 x 150) M6
(1)
D is the distance the filter will extend outward from the surface of the metal plate.
