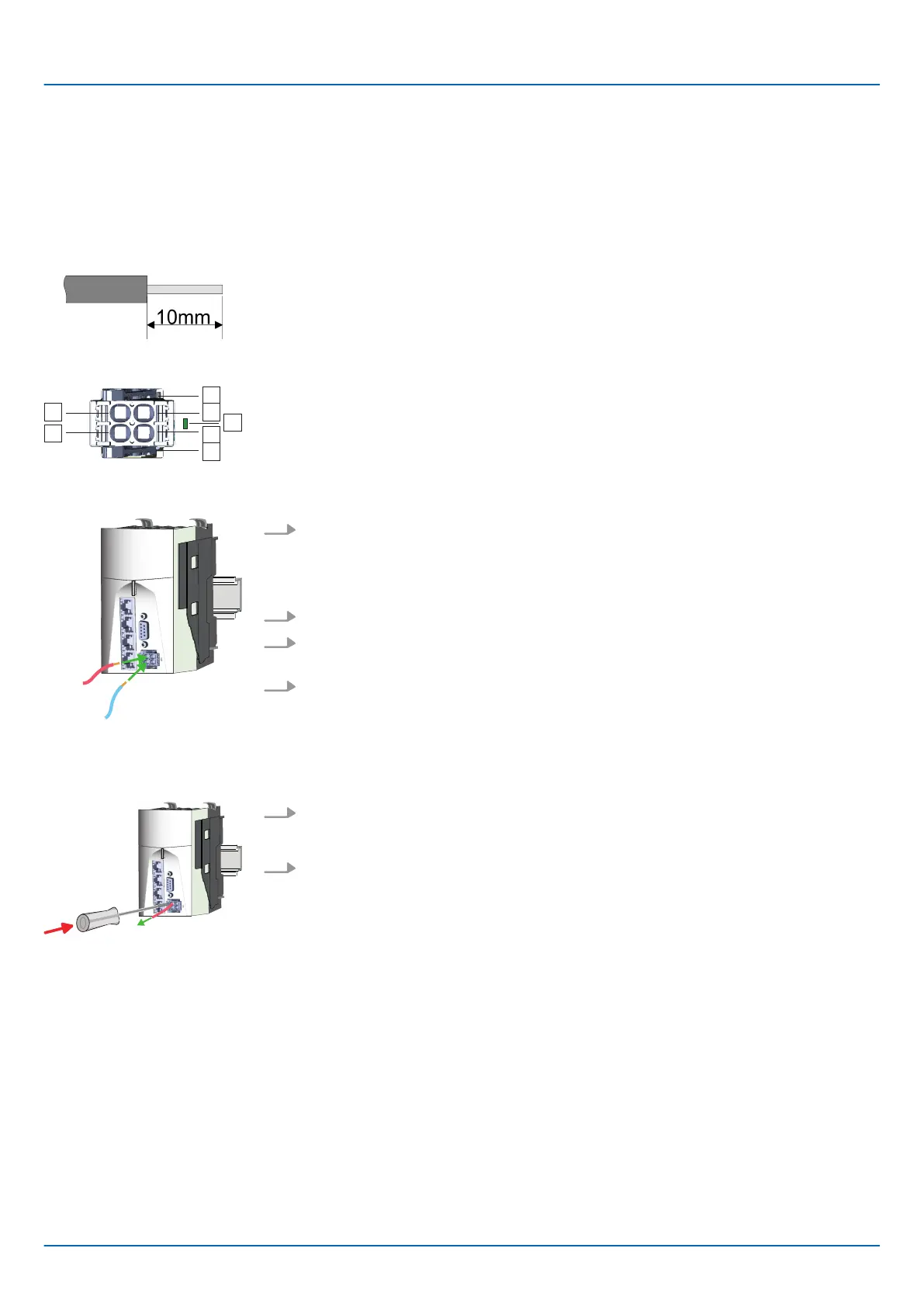

2.5.1 Wiring CPU
The CPU has a removable connector for the power supply. With the wiring of the con-
nector a "push-in" spring-clip technique is used. This allows a quick and easy connection
of your supply lines. The wires are disconnected by means of a screwdriver.
U
max
30V DC
I
max
10A
Cross section
0.08 ... 1.5mm
2
(AWG 28 ... 16)
Stripping length 10mm
1, 2 Plus DC 24V power supply, bridged in the plug.
3, 4 Ground DC 24V power supply, bridged in the plug.
5 LED indication for power supply.
6 Locking lever
The wiring happens without a tool.
1. Insert through the round connection hole of the according contact your prepared
wire until it stops, so that it is fixed.
ð
By pushing the contact spring opens, thus ensuring the necessary contact pres-
sure.
2. Determine the pin position according to the pin assignment.
3. Connect the positive pole (+) of your external DC 24V power supply to pin 1 or pin
2.
4. Connect the minus pole (0V) of your external DC 24V power supply to pin 3 or pin
4.
ð
As soon as the CPU is power supplied, the associated LED lights up.
The wire is to be removed by means of a screwdriver with 2.5mm blade width.
1. Press with your screwdriver vertically at the release button.
ð
The contact spring releases the wire.
2. Pull the wire from the round hole.
CPU connector
Data
Plug wire
Remove wire
iC9200 Series
Basics and mounting
Wiring > Wiring CPU
HB700 | CPU | PMC921xEx | en | 23-06 20
