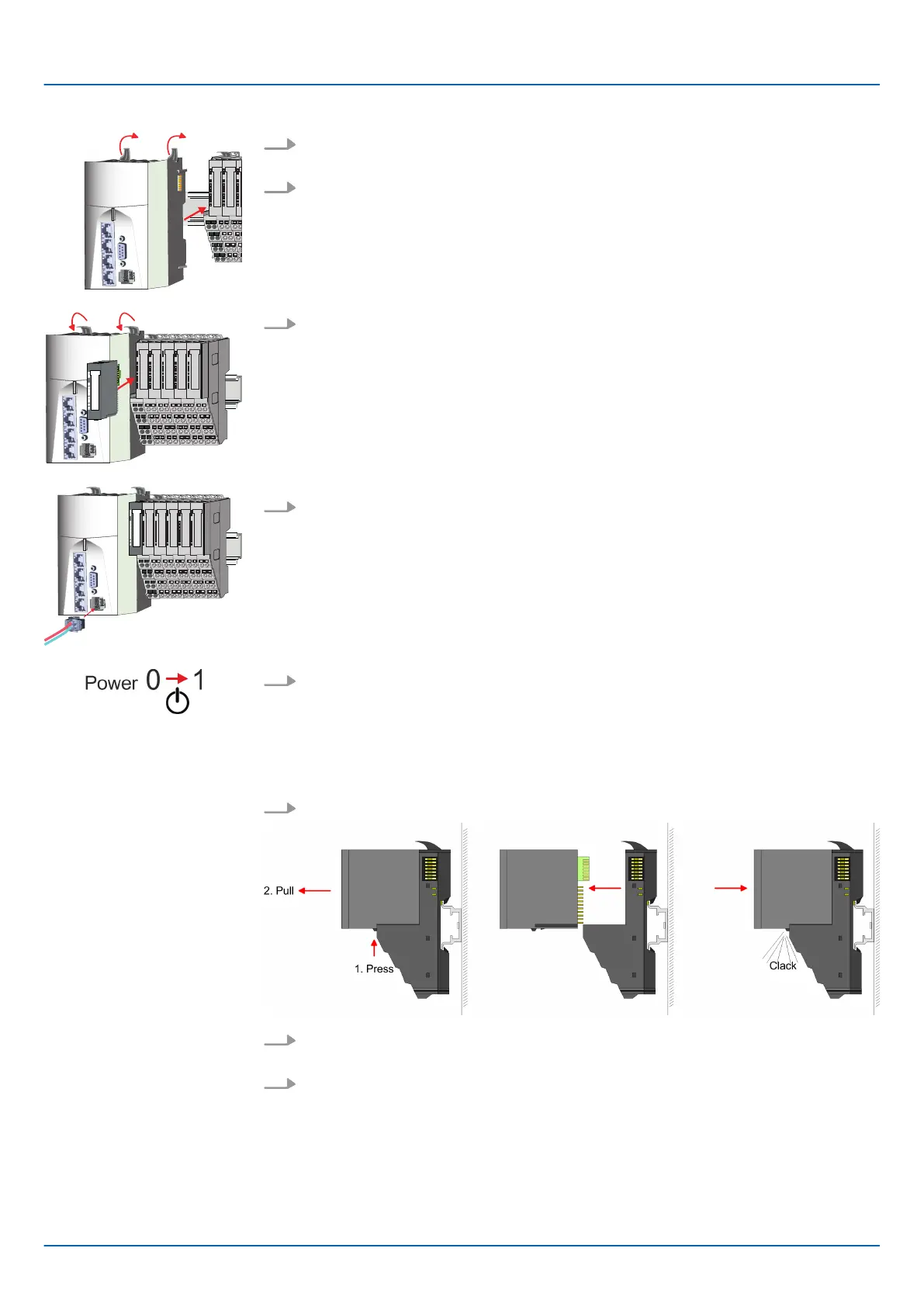

7. To mount the CPU put it to the left periphery module and push it, guided by the
stripes, to the mounting rail.
8. Turn all the locking lever downward, again.
9. Plug again the electronic module, which you have removed before. For installation
plug the electronic module guided by the strips at the lower side until this engages
to the terminal module.
11. Reconnect the connector of the power supply.
12. Now you can bring your system back into operation.
2.6.2 Demounting 8x periphery modules
1. Power-off your system.
2. For the exchange of a electronic module, the electronic module may be pulled for-
ward after pressing the unlocking lever at the lower side of the module.
3. For installation plug the new electronic module guided by the strips at the lower side
until this engages to the terminal module.
ð
Now you can bring your system back into operation.
Proceeding
Exchange of an electronic
module
iC9200 Series
Basics and mounting
Demounting > Demounting 8x periphery modules
HB700 | CPU | PMC921xEx | en | 23-06 30
