3.2.3 Memory
The CPU has an integrated memory. You will find information on the memory sizes in the
technical data. Ä Chap. 3.3 ‘Technical data’ page 54
The memory is divided into the following parts:
n Working memory for temporary data and parts of the user program.
n Parametrization memory for current firmware and overlay file system with firmware
adjustments, user program and data.
n Non-volatile memory for retentive data.
Ä Chap. 4.5 ‘Memory management’ page 67
The CPU has a slot for a Yaskawa SD card. Here you can use a Yaskawa SD card as
external memory and transfer the overlay file system of the CPU to the card.
Ä Chap. 4.5.2 ‘Slot for Yaskawa SD card’ page 69
3.2.4 Buffering mechanisms
n The iC9200 Series CPU has a capacitor-based mechanism to buffer the internal clock
in case of power failure for max. 28 days.
n The retentive data defined during configuration are automatically saved in the non-
volatile memory in the event of a power failure.

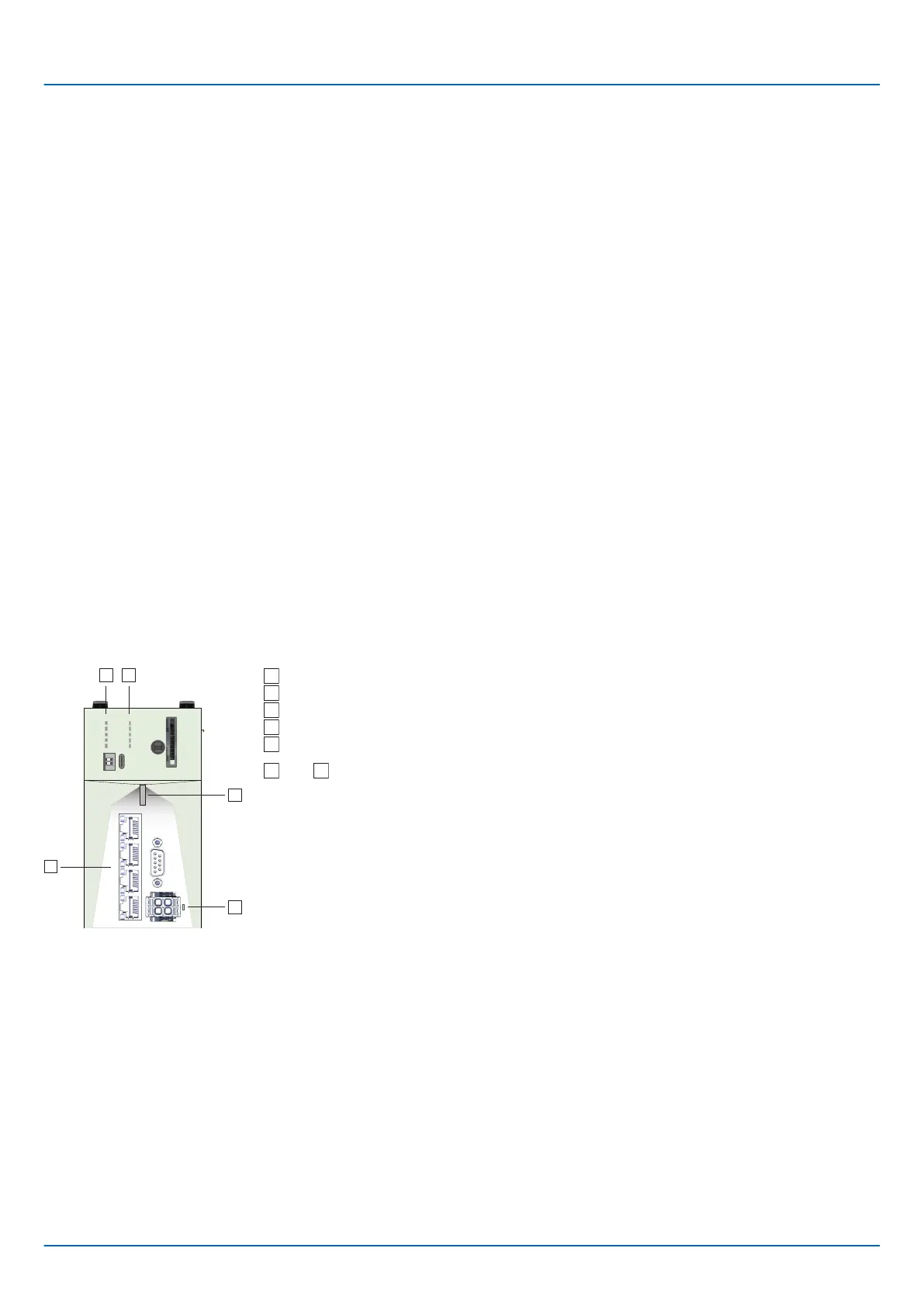

3.2.5 LEDs
1
LED bar 1
2
LED bar 2
3
Status LED
4
LEDs RJ45 jacks
5
LED power supply
1
and
2
are located under the front flap.
Internal memory
Slot for Yaskawa SD card
1 2
3
5
4
