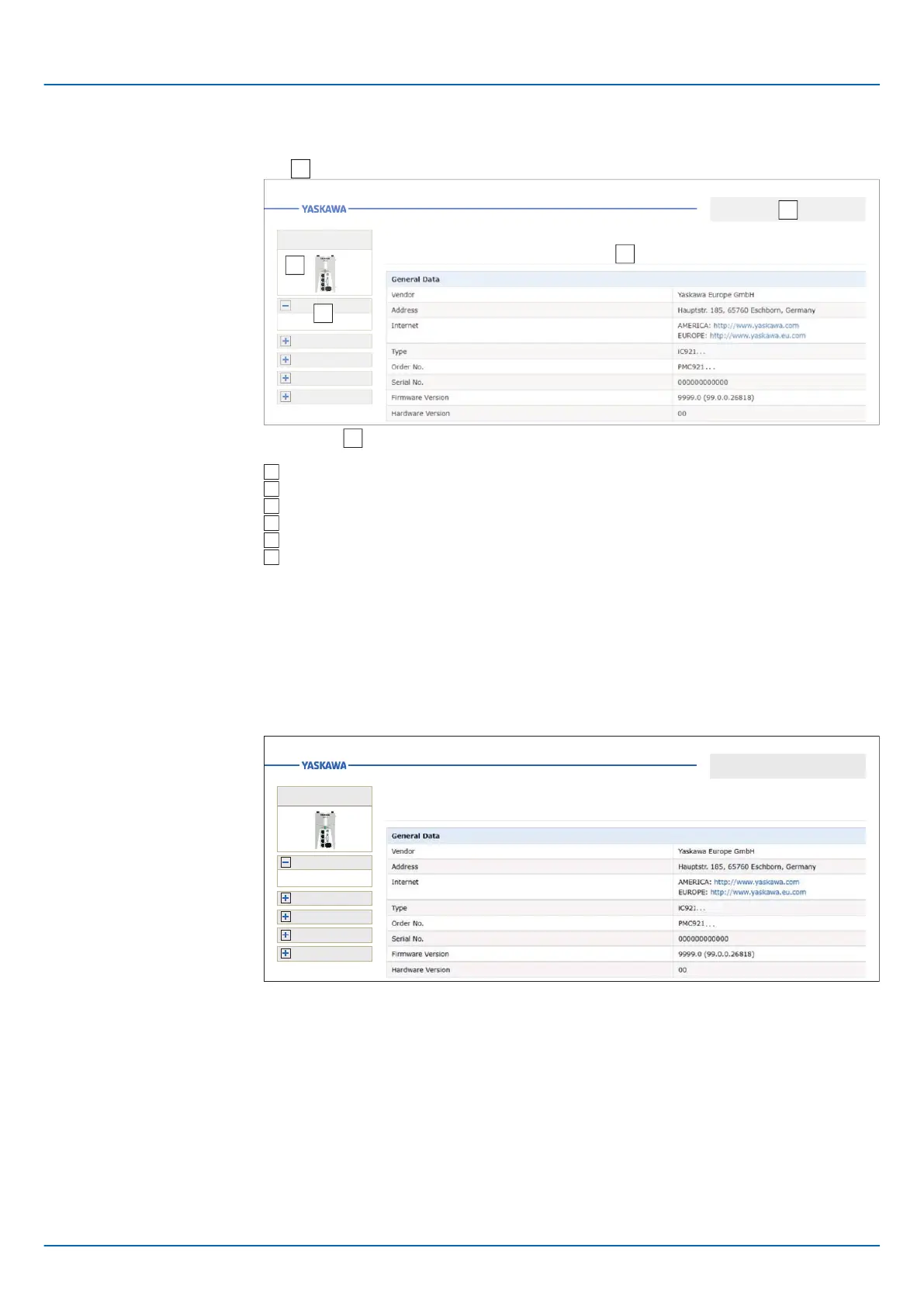

The WBM is divided into the following areas:
Diagnostics
Configuration
Security
Administration
iC92...
PMC92...
Information
General Data
Deutsch English
HW: ... FW: ...
MAC: ...
1
2
3
4
5
General Data
Information
... Legal Information
6
1
Language switching between ‘German’ and ‘English’ .
2
Front view of the CPU with type and order designation.
3
Menu column for navigation.
4
Area for information output and input dialogs
5
Shows the current hardware/firmware version and MAC address of the CPU.
6
Access to the Yaskawa software license conditions (Software License Terms - SLT)
and the license information for the individual Linux packages.
4.9.2 Information
4.9.2.1 General Data
Here you will find general details about the CPU, e.g. hardware and firmware versions,
order number as well as vendor information.
General Data
Information
Diagnostics
Configuration
Security
Administration
iC92...
PMC92...
Information
General Data
4.9.3 Diagnostics
4.9.3.1 EtherCAT
Here you will find basic information about the EtherCAT slave stations that are connected
via the EtherCAT network. Information is only shown here if the EtherCAT network is cor-
rectly configured and the EtherCAT slave stations are in the OP, PreOP or SafeOP state.
Otherwise you will receive the message ‘Invalid network configuration or network not
ready for operation’ .
Structural design
iC9200 Series
Deployment
Web-based management - WBM > Diagnostics
HB700 | CPU | PMC921xEx | en | 23-06 76
