YASKAWA iC9200 Series

EtherCAT
Diagnostics
Information
Configuration
Security
Administration
iC92...
PMC92...
Diagnostics
EtherCAT
Motion Alarms
Notifications
Profinet
SliceBus
SliceBus Modules

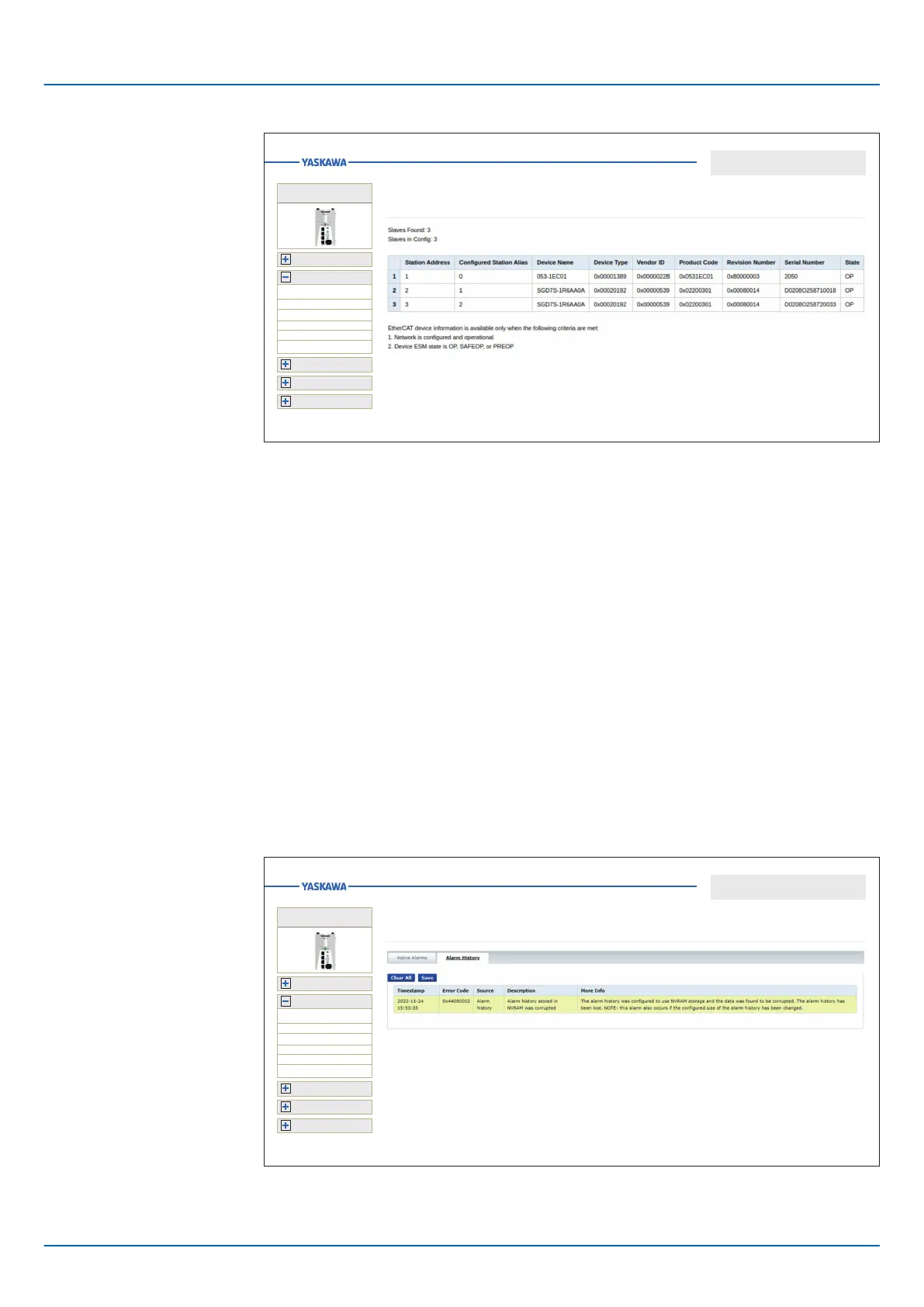

The following information is shown in tabular form:
n Station address and Station alias
n Station name, type and vendor
n Product code, revision number and serial number
n ‘State’
: ESM status of the corresponding EtherCAT slave station:
– OP
The EtherCAT slave station is in the Operational state and exchanges process
data cyclically.
– PreOp
The EtherCAT slave station is in the Pre-Operational state. Process data are not
exchanged.
– SafeOp
The EtherCAT slave station is in the Safe-Operational state. In this case, the input
process data are refreshed cyclically but the outputs are disabled.
4.9.3.2 Motion Alarms
If you have connected a drive to your CPU, you will find the current motion alarms and
their history here.
Motion Alarms
Diagnostics
Information
Configuration
Security
Administration
iC92...
PMC92...
Diagnostics
EtherCAT
Motion Alarms
Notifications
Profinet
SliceBus
SliceBus Modules
iC9200 Series
Deployment
Web-based management - WBM > Diagnostics
HB700 | CPU | PMC921xEx | en | 23-06 77
