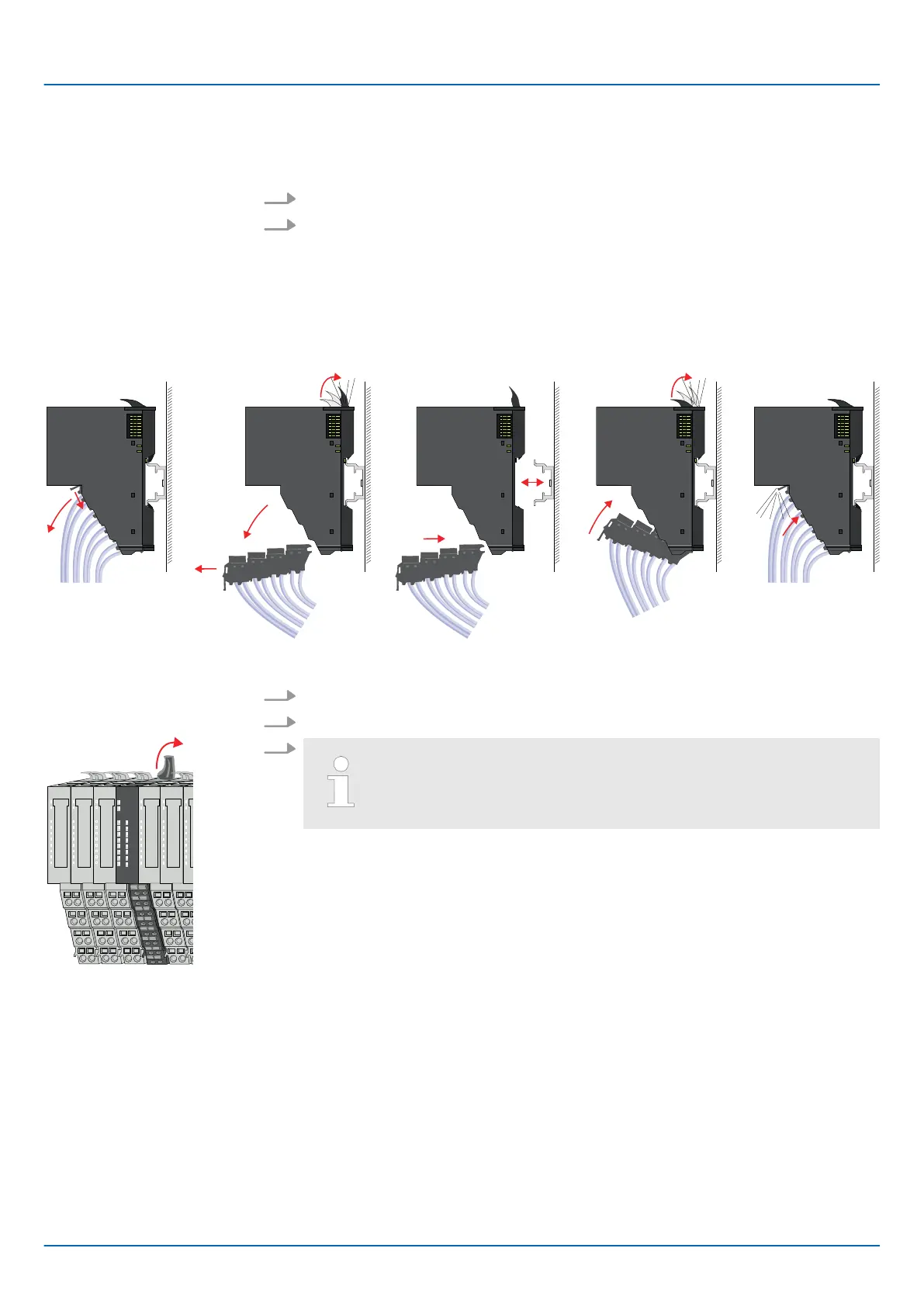

2.6.3 Demounting 16x periphery modules
1. Power-off your system.
2. To replace an electronic unit, you can push down and pull off the terminal block
after releasing the lock.
To mount the terminal block, place it horizontally on the lower side of the electronic
unit and push it towards the electronic unit until it clicks into place.
ð
Now you can bring your system back into operation.
Clack
1
2
Clack
Clack
1. Power-off your system.
2. Remove if exists the wiring of the module respectively the wired terminal block.
3.
In contrast to 8x periphery modules, you can directly demount and
mount 16x periphery modules.
Turn the locking lever of the module to be exchanged upwards.
Proceeding
Exchange of an electronic
unit
Exchange of a 16x
periphery module
iC9200 Series
Basics and mounting
Demounting > Demounting 16x periphery modules
HB700 | CPU | PMC921xEx | en | 23-06 33
