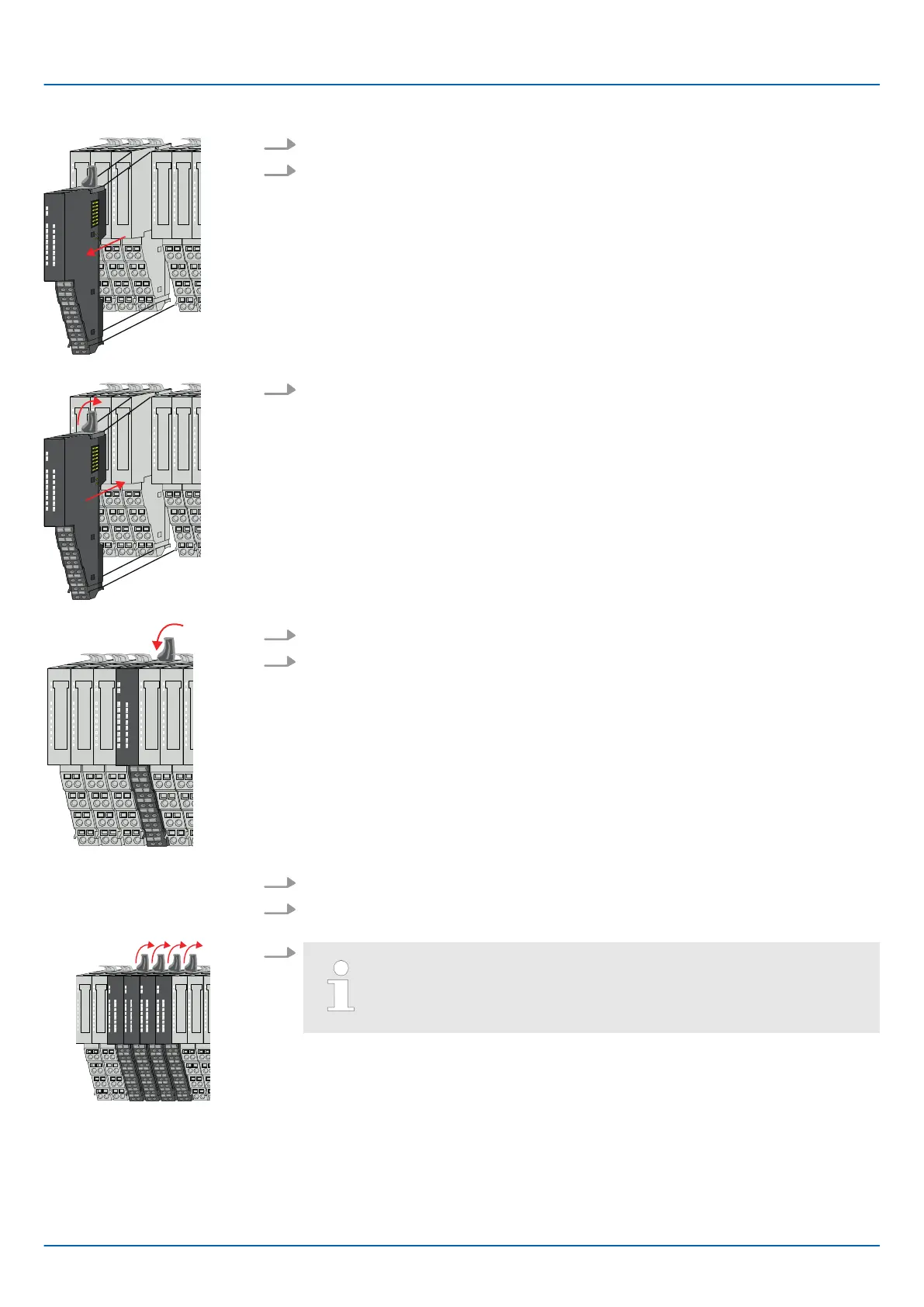

4. Pull the module.
5. For mounting turn the locking lever of the module to be mounted upwards.
6. To mount the module put it to the gap between the both modules and push it,
guided by the stripes at both sides, to the mounting rail.
7. Turn the locking lever downward, again.
8. Wire your module respectively plug the wired terminal block again.
ð
Now you can bring your system back into operation.
1. Power-off your system.
2. Remove if exists the wiring of the module group respectively the wired terminal
blocks.
3.
In contrast to 8x periphery modules, you can directly demount and
mount 16x periphery modules.
Turn all the locking lever of the module group to be exchanged upwards.
Exchange of a module
group
iC9200 Series
Basics and mounting
Demounting > Demounting 16x periphery modules
HB700 | CPU | PMC921xEx | en | 23-06 34
