YASKAWA iC9200 Series

DC 24V
SysDC5V
...
...
DC 24V
0V
DC24V
0V
DC24V
2 2
0V
DC24V
0V
DC24V
1
2

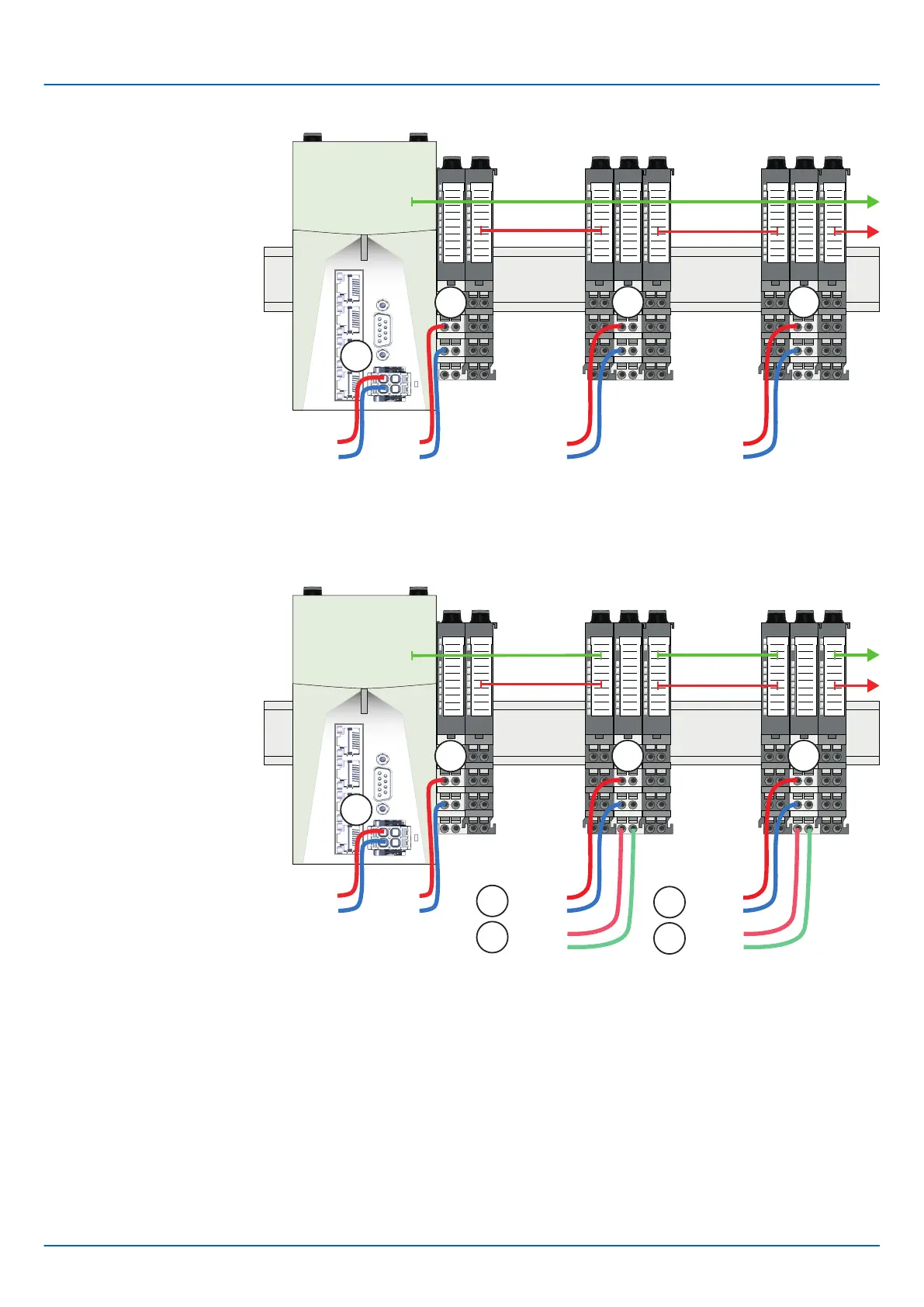

(1) DC 24V supply CPU:
DC 5V electronic section supply I/O area (max. 2A)
(2) Power module 007-1AB00:
DC 24V power section supply (max. 10A)
DC 24V
SysDC5V
SysDC5V
...
...
DC 24V
0V
DC24V
0V
DC24V
0V
DC24V
0V
DC24V
3
4
5
4
5
3
0V
DC24V
0V
DC24V
1
2
(1) DC 24V supply CPU:
DC 5V electronic section supply I/O area (max. 2A)
(2) Power module 007-1AB00:
DC 24V power section supply (max. 10A)
(3) Additional power module 007-1AB10:
(4) DC 24V power section supply (max. 4A)
(5) DC 5V electronic section supply I/O area (max. 2A)
Power module 007-1AB00
Power module 007-1AB10
iC9200 Series
Basics and mounting
Wiring > Wiring System SLIO periphery
HB700 | CPU | PMC921xEx | en | 23-06 27
