YASKAWA iC9200 Series

8pin RJ45 jack:
Pin Signal Description
1 DA+ Bidirectional pair A + (send data +)
2 DA- Bidirectional pair A - (send data -)
3 DB+ Bidirectional pair B + (receive data +)
4 DC+ Bidirectional pair C +
5 DC- Bidirectional pair C -
6 DB- Bidirectional pair B - (receive data -)
7 DD+ Bidirectional pair D +
8 DD- Bidirectional pair D -
n The CPU has an integrated Ethernet communication processor.
n The connection happens via an integrated 2-port switch (X3/X4).
n Via Ethernet (default: 192.168.1.1, ‘MAC1’
) you have access to:
– Programming / remote maintenance of the CPU.
– Web-based management WBM of the CPU.
– OPC UA communication of the CPU.
n In the optionally available ‘PROFINET IO controller’
operating mode, you can con-
nect your PROFINET devices here.
n In the optionally available ‘PROFINET I-Device’ operating mode, you can connect
your CPU as I-Device to a PROFINET IO controller here.
The interface is reserved for future extensions.

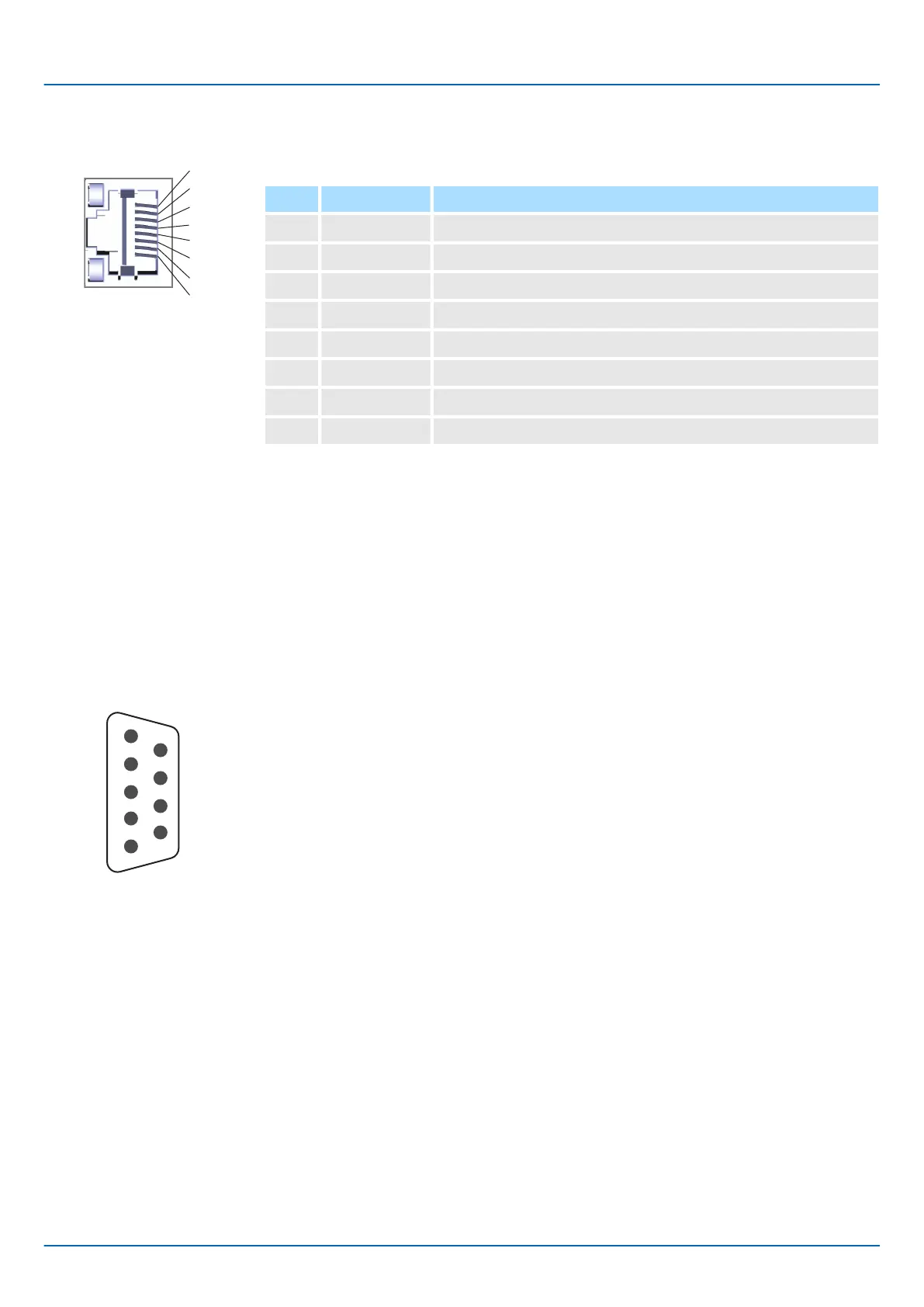

X3/X4: Ethernet port
1
2
3
4
5
6
7
8
X5: reserved
1
2
3
4
5
6
7
8
9
iC9200 Series
Hardware description
Structure > Interfaces
