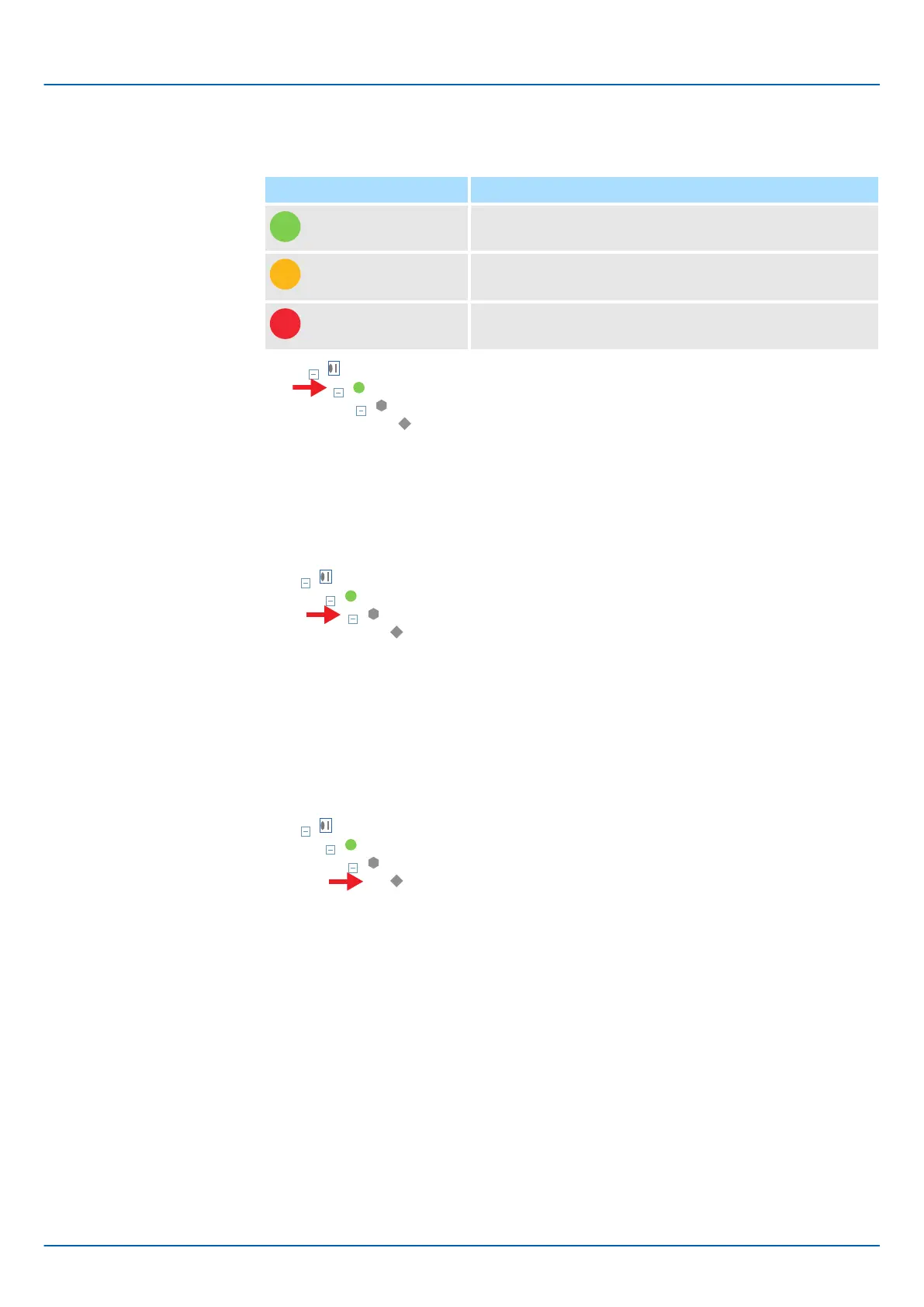

The following symbols inform about the current diagnostic state of the PROFINET
device:
Symbol Diagnostic status
OK
!
Warning
!
Error
iC921... / IP Address: 192.168.3.1 / Profinet Devices : 1
..
Station : IM053-1PN01 / IP Address: 192.168.3.11 / Profinet Devices : 1
..
..
Module ID : 106370 / Slot : 0 / Submodules : 4
..
..
Node ID : 5 / Submodule ID : 2 / Subslot : 0 / Type: 0 / Sub elements : 2
...
...
On module level you will find the following information:
n Module ID - the ID of the module
n Slot - slot of the module
n Sub modules - the number of sub modules
iC921... / IP Address: 192.168.3.1 / Profinet Devices : 1
..
Station : IM053-1PN01 / IP Address: 192.168.3.11 / Profinet Devices : 1
..
..
Module ID : 106370 / Slot : 0 / Submodules : 4
..
..
Node ID : 5 / Submodule ID : 2 / Subslot : 0 / Type: 0 / Sub elements : 2
...
...
On sub module level you will find the following information:
n Node ID - node ID of the sub module
n Sub module ID
n Sub slot
n Type
n Sub elements - number of sub module elements
iC921... / IP Address: 192.168.3.1 / Profinet Devices : 1
..
Station : IM053-1PN01 / IP Address: 192.168.3.11 / Profinet Devices : 1
..
..
Module ID : 106370 / Slot : 0 / Submodules : 4
..
..
Node ID : 5 / Submodule ID : 2 / Subslot : 0 / Type: 0 / Sub elements : 2
...
...
4.9.3.4.1 PROFINET Diagnostics Code
Here you can get the status of a connection with an IO controller (Application Relation -
AR) bit-coded.
Module level
Sub module level
