4 Wiring
4.2 Cable Connection

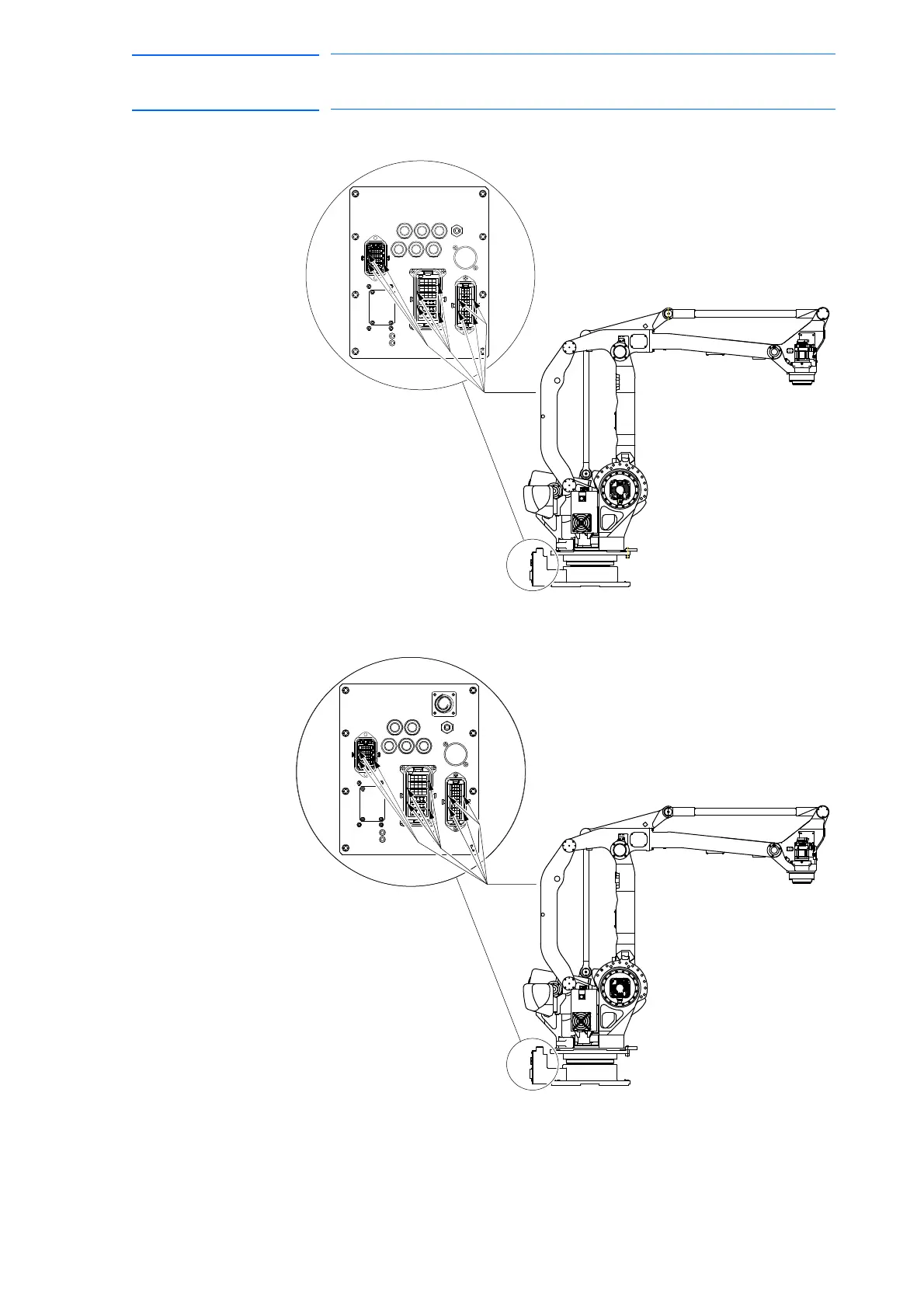

Fig. 4-3(a): Manipulator Cable Connectors (Manipulator Side, YR-MPL0100-A00)
Fig. 4-3(b): Manipulator Cable Connectors (Manipulator Side, YR-MPL0100-A04)
A
Connector Details
(Manipulator Side)
Key
positions
A
Connector Details
(Manipulator Side)
Key
positions
