9 Maintenance and Inspection
9.3 Notes on Grease Replenishment/Exchange Procedures
9.3.1 Grease Replenishment/Exchange for S-Axis Speed Reducer and Gear

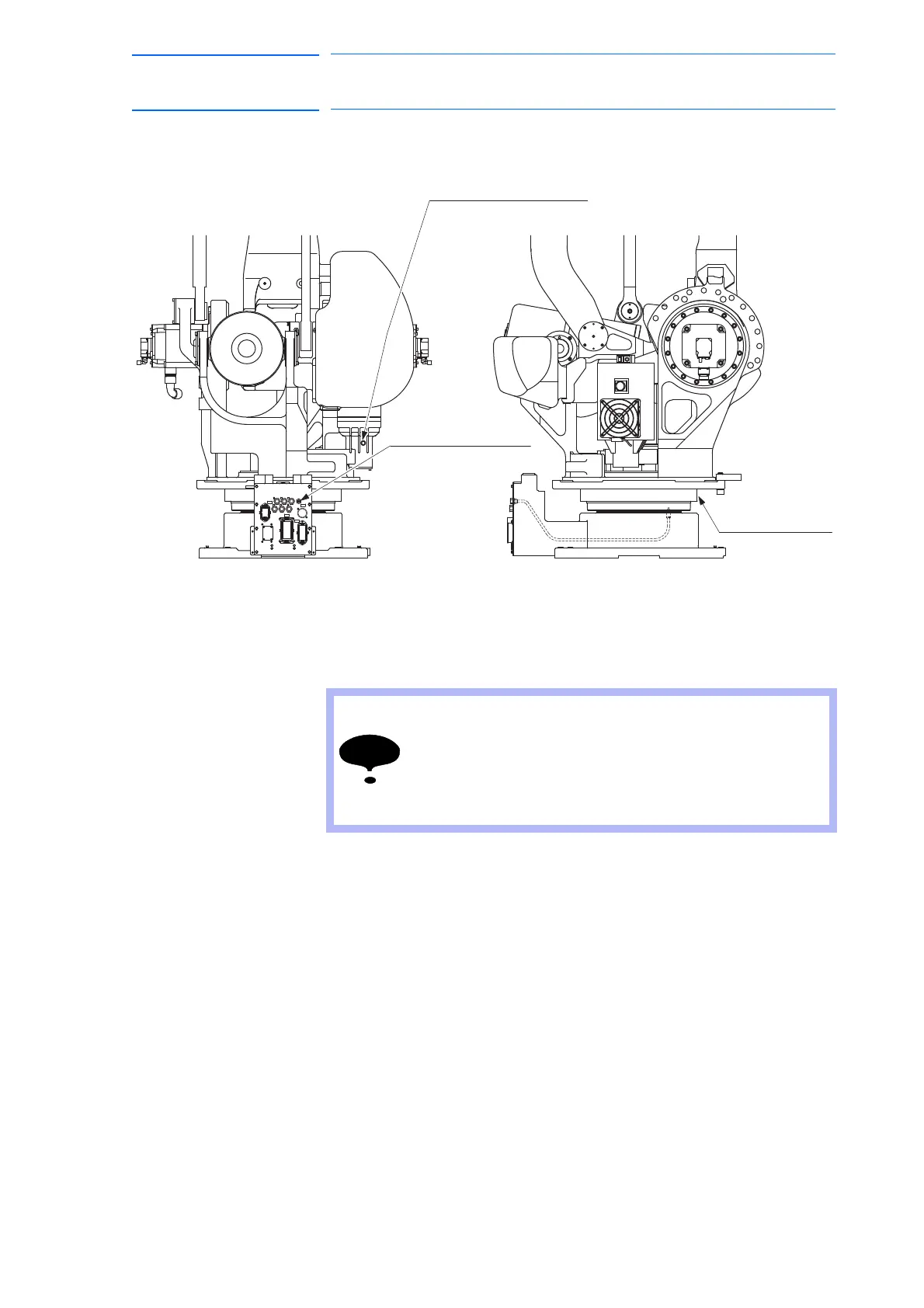

Fig. 9-4: S-Axis Speed Reducer and Gear Diagram
9.3.1.1 Grease Replenishment
(Refer to F
ig. 9-4 “S-Axis Speed Reducer and Gear Diagram”.)
1. Remove the hexagon socket head plugs from the grease inlet and
gr
ease exhaust port.
2. Install a grease zerk A-PT1/4 to the grease inlet.
(The grease zerk is delivered with the manipulator.)
3. Inject grease through the grease inlet using a grease gun
– Grease type: Molywhite RE No.00
– Amount of grease: 2100 cc
(4200 cc for 1st supply)
– Air supply pressure of grease pump: 0.3 MPa or less
– Grease injection rate: 8 g/s or less
4. Move the S-axis for a few minutes to discharge excess grease.
5. Wipe the discharged grease with a cloth, and reinstall the plug. Before
inst
alling the plug, apply Three Bond 1206C on the thread part of the
plug. Then tighten the plug with a tightening torque of 24.5 N•m
(2.5 kgf•m).
Grease inlet
Hexagon socket head plug
S-axis speed reducer
Grease exhaust port
Hexagon socket head plug
1BC
A
4BC
2BC
3BC
DFE
BCA
• If grease is injected with the plug on, grease will leak
inside the motor and may cause a damage. Make sure to
remove the plug before the grease injection.
• Do not install a joint, a hose, etc. to the grease exhaust
port. Failure to observe this instruction may result in
damage to the motor due to coming off of an oil seal.
