9 Maintenance and Inspection
9.3 Notes on Grease Replenishment/Exchange Procedures
9.3.4 Grease Replenishment/Exchange for T-Axis Speed Reducer

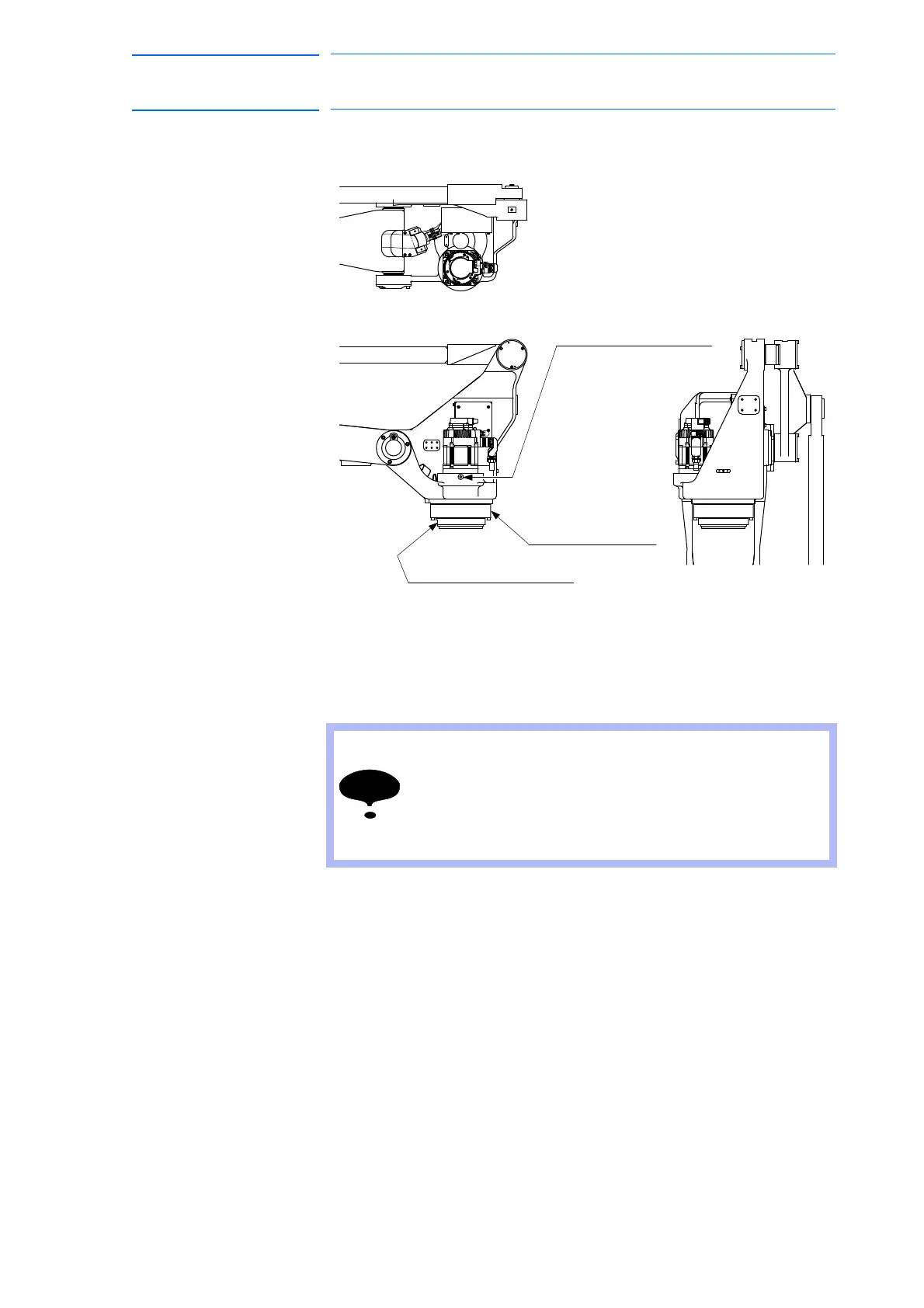

Fig. 9-7: T-Axis Speed Reducer Diagram
9.3.4.1 Grease Replenishment
(Refer to Fig
. 9-7 “T-Axis Speed Reducer Diagram”.)
1. Remove the hexagon socket head plugs from the grease inlet and
gr
ease exhaust port.
2. Install a grease zerk A-PT1/8 to the grease inlet.
(The grease zerk is delivered with the manipulator.)
3. Inject grease through the grease inlet using a grease gun
– Grease type: Molywhite RE No.00
– Amount of grease: 180 cc
(360 cc for 1st supply)
– Air supply pressure of grease pump: 0.3 MPa or less
– Grease injection rate: 8 g/s or less
4. Move the T-axis for a few minutes to discharge excess grease.
5. Wipe the discharged grease with a cloth, and reinstall the plug. Before
inst
alling the plug, apply Three Bond 1206C on the thread part of the
plug. Then tighten the plug with a tightening torque of 4.9 N•m
(0.5 kgf•m).
Grease inlet
Hexagon socket head plug
T-axis speed reducer
Grease exhaust port
Hexagon socket head plug
• If grease is injected with the plug on, grease will leak
inside the motor and may cause a damage. Make sure to
remove the plug before the grease injection.
• Do not install a joint, a hose, etc. to the grease exhaust
port. Failure to observe this instruction may result in
damage to the motor due to coming off of an oil seal.
